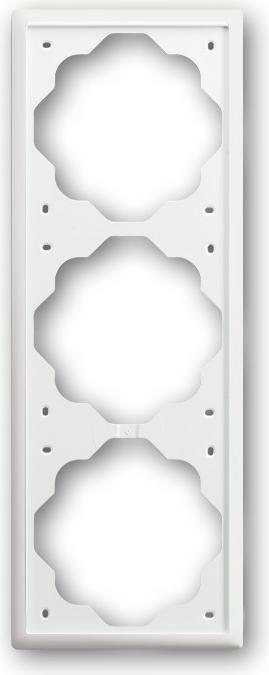

Busch-Jaeger Frame 3-fold 1723-74

Manufacturer: Busch-Jaeger
Designation: 3-fold frame alpine white
Type: 1723-74
Number of units: 3
Mounting direction: horizontal and vertical
Number of units horizontal: 3
Number of units vertical: 3
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: alpine white
RAL number (similar): 9010
Transparent: no
With flap cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting

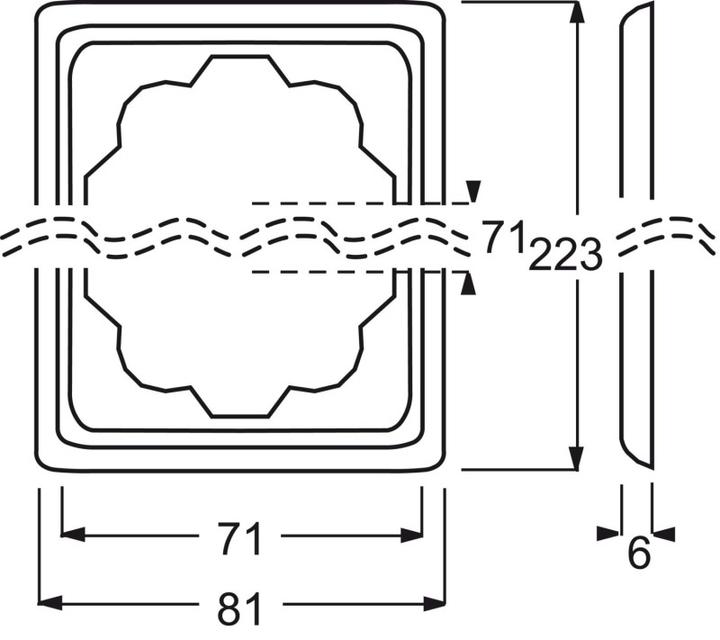

Width: 81 mm
Height: 223 mm
Depth: 6 mm
Installation width: 71 mm
Installation height: 71 mm
Drilling diameter (opening): 71 mm

For vertical or horizontal mounting.
