Busch-Jaeger Frame 4-fold 1734-21

Manufacturer: Busch-Jaeger
Description: 4-fold frame in bronze, vertical
Type: 1734-21
Number of units: 4
Mounting direction: vertical
Number of units vertically: 4
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: Metal
Material quality: Aluminum
Halogen-free: yes
Antibacterial treatment: no
Surface protection: anodized/eloxated
Surface finish: matte
Color: bronze metallic
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting

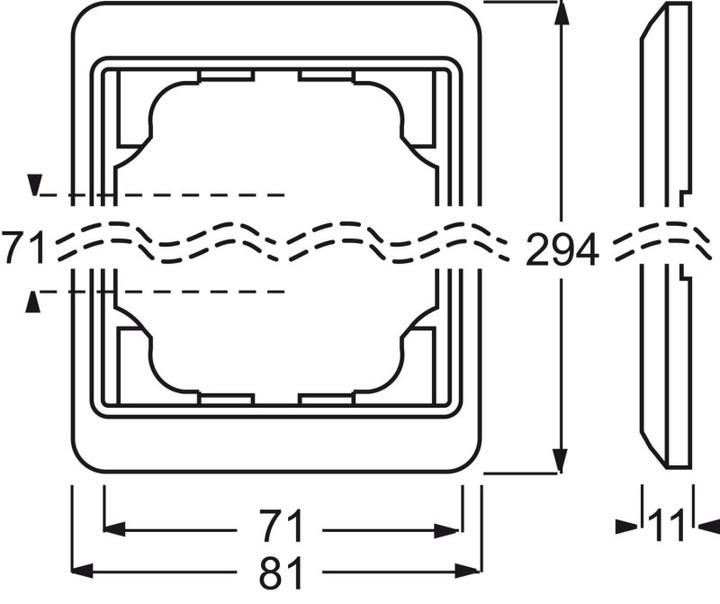

Width: 81 mm
Height: 294 mm
Depth: 11 mm
Installation width: 70 mm
Installation height: 54 mm
Drilling diameter (opening): 71 mm

Busch-Jaeger Frame 4-fold 1734-21: additional details cover frame 4-fold frame vertical, alpha bronze. EAN: 4011395169902.
