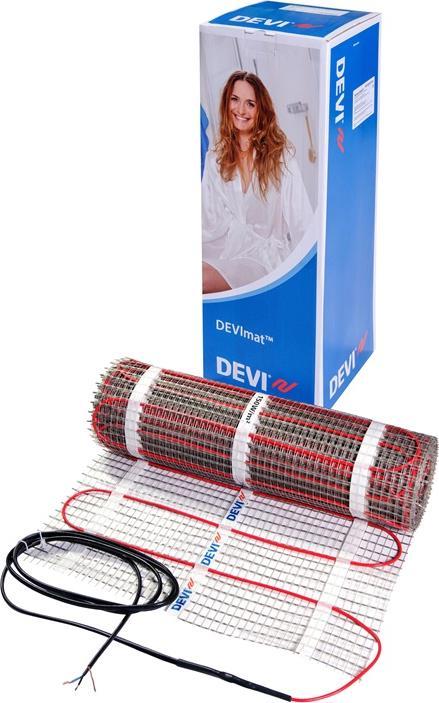

Danfoss Thin Bed Heating Mat DTIR 8m

Manufacturer: Danfoss
Description: Thin Bed Heating Mat 150 W/m²
Type: DTIR 8m
Design: Heating Film
With Carrier Mat: yes
Heating Cable Fixation: glued
Self-Adhesive: yes
Connection Power: 600 W
Power: 11 W/m²
Heating Cable Load: 11 W/m
Number of Cold Leads: 1
Length of Cold Leads: 4000 mm
Suitable for Wet Rooms: yes
Suitable as Outdoor Heating: no
Suitable as Roof Heating: no
Area: 4 m²
Length: 8000 mm
Width: 500 mm
Thickness: 4 mm
With Controller: yes
With Room Thermostat: no
With Floor Temperature Sensor: no

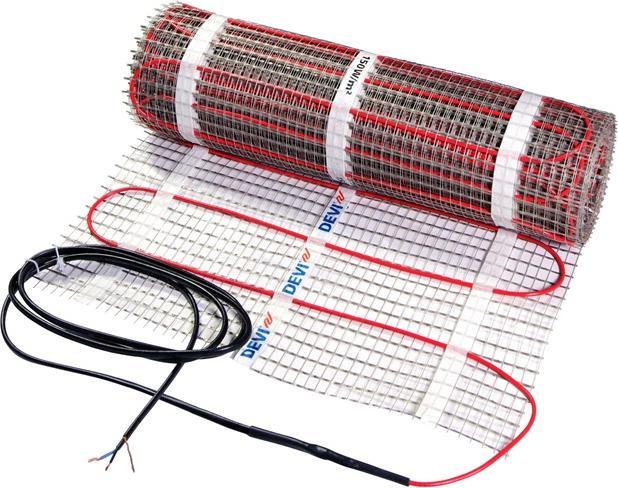

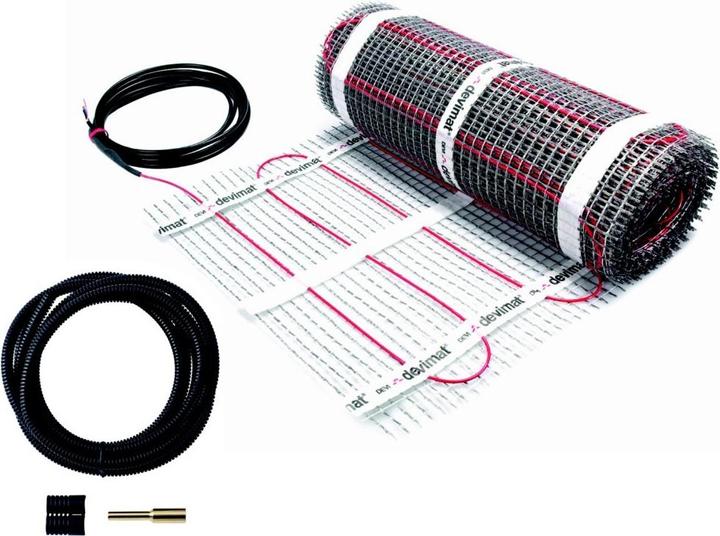

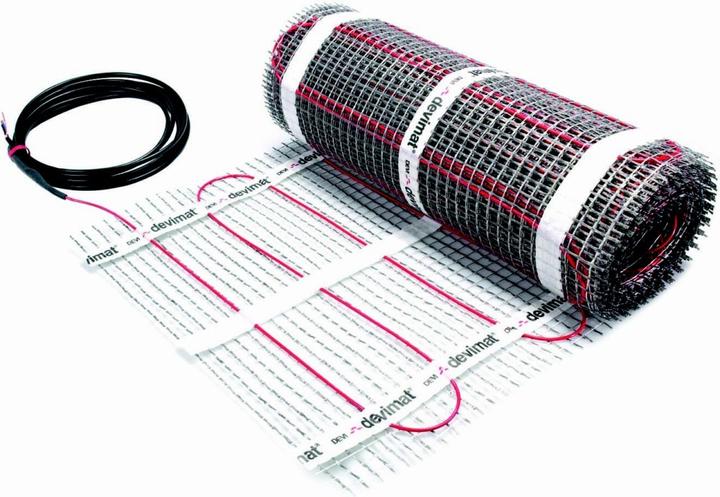

The self-adhesive thin bed heating mat with a connection cable is pre-assembled for easy installation and has been specifically designed for embedding in leveling compounds or flexible adhesives directly beneath the floor covering. Due to its low installation height of only 4.0 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large spaces, as there is no need to return the second connection. The heating cable, with additional protective sheathing for the use of RCD protection, is applied to a plastic mesh. The length of the connection cable is 4.0 m.

Cold Lead: 4 m, 1.0 mm²
Voltage: 230 V
Rated Limit Temperature: 90 °C
Specific Heating Power: 150 W/m²
Length Load: 11 W
Insulation: PVC / FEP
Resistance Tolerance: +10 % / -5 %
Minimum Installation Temperature: 5 °C
Minimum Bending Radius: 6 x dA
Protection Class: IPX7
Approval: EN 60335-2-96
Mat Thickness: 4.0 mm
Calculation Width: 50 cm
Delivery Width: 48 cm
Area: 4.0 m²
0.5 x 8.0 m
Power: 600 W
EAN: 5703466169391.
