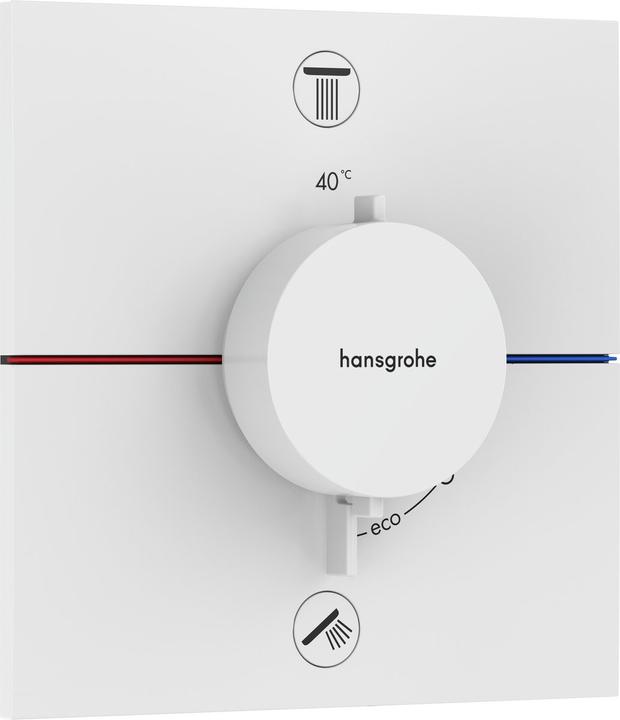

Hansgrohe ShowerSelect Comfort E1 concealed thermostat

Product details:

• For two consumers
• Simultaneous use of several consumers
• Large Select button for convenient on/off switching of one consumer
• Volume control with stop function
• Thermostat cartridge for regulating the temperature
• Start/stop valve for operating the consumer
• Flat rosette for more space in the shower
• Square rosette can be adjusted by +/- 3
• Pre-assembled function block for easy installation
• Handles always at the same height
• Independent of the installation depth of the base body
• Adjustable temperature limiter with safety lock at 40°C
• Thermostat offers the option of thermal disinfection

Material (handles/button): Metal

Thermostat is supplied with Rain small and large buttons, as well as with the hand shower, splash, and bath buttons.

Technical data:

• Connection type: iBox universal 2 base unit (item no.: 01500180)
• Basic body not included, please order separately.
• Max. flow rate at 3 bar: 22.1 l/min
• Flow rate upper outlet: 20 l/min
• Flow rate lower outlet: 20 l/min
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Noise group: I
• Flow rate class: B

Scope of delivery:

• Thermostat
• Function block
• Mounting material and installation instructions.
