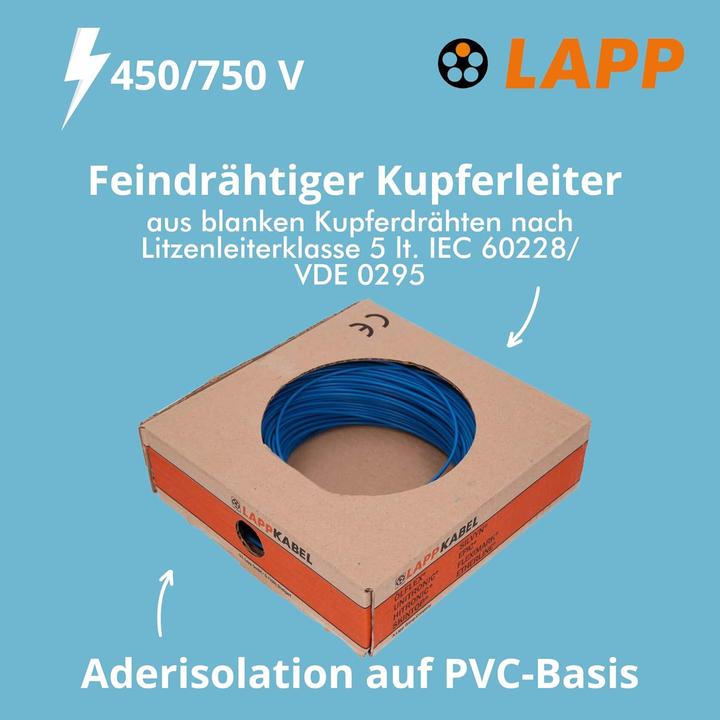

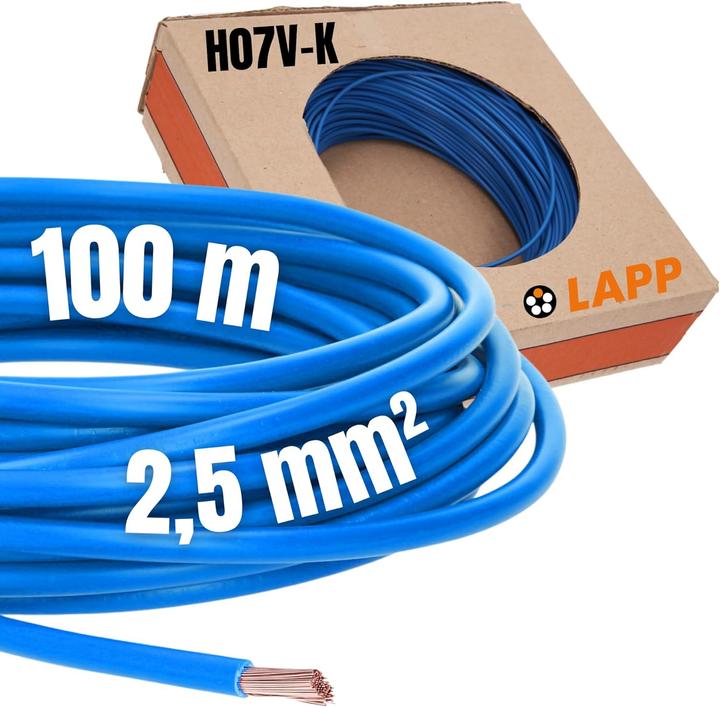

Fine-stranded cable sold by the meter is suitable for installation in dry rooms, control systems, and distribution systems, in conduits, as well as in surface-mounted and flush-mounted installations, and in closed installation channels. The H07V-K is a PVC-coated cable designed for wiring machines, devices, lights, and control cabinets. The fine wiring consists of bare copper wires according to stranded conductor class 5 as per IEC 60228/VDE 0295. This control wire or the copper stranded wire must not be used for direct installation on trays, gutters, and basins. The Lapp cable H07V-K can be used in conduits above and below plaster for signal systems. Application areas for the control cable H07V-K 1x2.5mm²: installation in conduits above, in, and below plaster, as well as in closed installation channels. For direct installation on trays, gutters, and basins, it should only be used as a protective earthing conductor. Product features: flame-retardant according to IEC 60332-1-2. Reel dimensions: d1=18mm; d2=200mm; b=85mm. Rated voltage: U0/U: 450/750 V. Temperature range: Fixed installation: -40°C to +70°C.
