NZR DS Top-hat rail meter

Price in EUR including VAT, free shipping
Ratings
BrandMore from NZR
Delivered between Sat, 21/6 and Wed, 25/6
5 items in stock at supplier

Product details

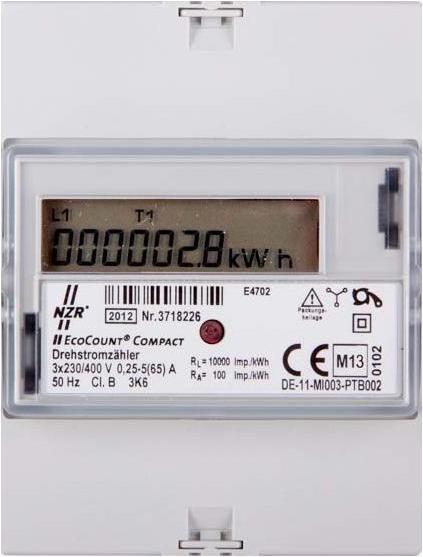

The EcoCount Compact is a meter for measuring three-phase active energy. Its compact design allows for space-saving installation (only 4 TE wide). The meter features a 7-digit LCD display. Energy consumption values can be output via a pulse output. It is suitable for industrial applications and billing purposes, for 4-wire networks, accuracy class B, with a rolling 7-digit LCD display, a tariff register, pulse output, and instantaneous value measurement of power P (per phase and total), voltage (U), and current (I) (per phase). Installation is done on DIN rails according to IEC 60715. The meter has an EC type examination certificate according to Directive 2004/22/EC (MID = Measuring Instrument Directive).

Technical data:

  • Voltage: 3x230/400V
  • Current: 0.25-5(65)A
  • Frequency: 50 Hz
  • Counter: 6.1 (LCD 7-digit)
  • Accuracy class B (according to EN 50470-1,-3)
  • Power consumption (Pe) < 0.55 VA (< 0.4 W) per phase
  • Power consumption (le) < 0.01 VA per phase
  • Pulse output: 1x S0 (max. 27 V DC, 27 mA passive)
  • Pulse length: 100 ms
  • Temperature range (Tb) (operating): -25°C to +55°C
  • Temperature range (TB) (storage): -40°C to +70°C
  • Humidity: max. 95%, non-condensing (according to IEC 62052-11, EN 50470-1, and IEC 60068-2-30)
  • Protection class II
  • Degree of protection for housing and connections: IP20
  • Weight: approx. 0.35 kg
  • Dimensions (W x H x D) (4 TE): 72 x 90 x 61 mm
  • Type: EcoCount Compact, 1 tariff, 0.25-5(65) A, MID compliant.

Key specifications

Maximum current
65 A
Energy meter type
Energy meter
mounting style
Top-hat rail
Nominal voltage
400 V
Item number
20348730

General information

Manufacturer
NZR
Category
Energy monitors
Manufacturer no.
33220216
Release date
30/3/2022

Energy meter property

Energy meter type
Energy meter
mounting style
Top-hat rail
Maximum current
65 A
Nominal voltage
400 V
Display type
Digital
Tariff execution
Single tariff
Pulse output
Electrical
Polar type
Four-wire
Accuracy class
B

Safety

Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Height
80 mm
Width
100 mm

Package dimensions

Length
9.70 cm
Width
8.20 cm
Height
7 cm
Weight
370 g
