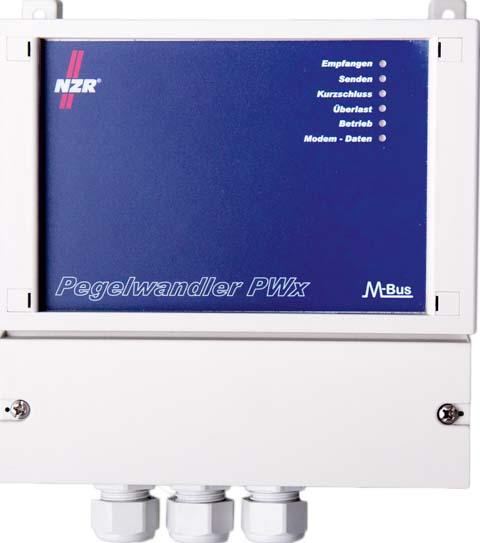

NZR Level Converter Ethernet Modem PW 75 T

Manufacturer: NZR
Designation: Level Converter Ethernet Modem TCP/IP
Type: PW 75 T
Bus System KNX: no
Bus System KNX Wireless: no
Bus System Wireless Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: other
Bidirectional Wireless: no
Design: Ethernet
Mounting Type: Surface-mounted
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: matte
Color: gray
RAL Number (similar): 7035
Transparent: no
Max. Transmission Rate: 9600 Bd
With Bus Coupling: yes
With Labeling Field: no
With LED Display: yes
Protection Class (IP): other
Min. Depth of Device Box: 0 mm

The M-Bus Level Converter is used to supply M-Bus end devices and to facilitate communication between a PC and the end devices. The design of the level converter is based on the number of connected M-Bus end devices. Various performance levels are available for fixed installation. The level converters are equipped with USB, RS232, and an Ethernet LAN TCP/IP interface. Indicators for operation, data traffic, and bus short circuit, protection against overload and short circuit on the M-Bus, integrated galvanically isolated RS-232, USB, and Ethernet LAN TCP/IP interface for transmitting the M-Bus protocol (PC as master), galvanic isolation to the M-Bus, integrated switching power supply.

Technical Data:
Connection: RJ45
Bus System: M-Bus (EN 13757-2)
Number of Counters: 75
Speed: 300 to 9600 Baud
Supply Voltage (U): 230 V
Power Consumption (P): 10 W
Temperature Range (Tb): 0 to +55 °C
Protection Class: IP43 for vertical mounting, IP40 for cabinet mounting
Weight: 0.75 kg
Dimensions (W x H x D): 163 x 200 x 85 mm
EAN: 4048652008926.
