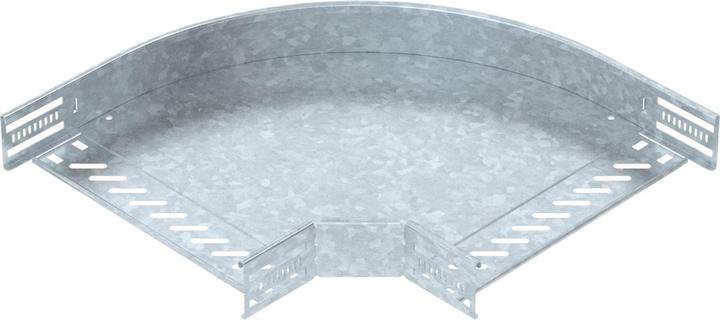

OBO Bettermann 90 Degree Bend RB 90 630 FT

Manufacturer: OBO Bettermann
Description: 90 Degree Bend 60x300 hot-dip galvanized
Type: RB 90 630 FT
Direction Change: horizontal
Angle: 90°
Design: rigid bend
Bend Type: smooth bend
With Top Section: no
Inner Radius: 50 mm
Cable Tray Height: 60 mm
Cable Tray Width: 300 mm
Material Thickness: 0.8 mm
Side Hole: yes
Mounting Hole in Base: yes
NATO Hole Pattern: no
Version: integrated connector
Suitable for Function Maintenance: yes
Material: steel
Stainless Steel, Pickled: no
Surface Protection: hot-dip galvanized
Operating Temperature: -20 to 120 °C
Color: zinc

The 90° bend is used to create a horizontal branch and is a fitting for snap-on and screwable cable trays with a side height of 60 mm. Installation is screw-free with double clamps or through screw connections with flat round screws and combination nuts M6. It can be used both indoors and outdoors. Fastening material must be ordered separately.
EAN: 4012197344528.
