OBO Bettermann Outside corner
3.30 cmOnly 1 piece in stock at supplier
Colour5
Product details
OBO Bettermann External Corner PLM EC 0410 FS
Manufacturer: OBO Bettermann
Description: External corner with fire protection fabric
Type: PLM EC 0410 FS

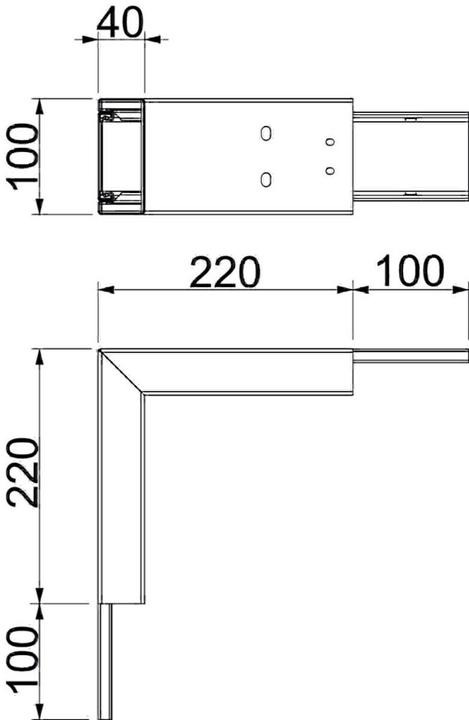

Angle: 90 °
External width: 220 mm
Internal height: 40 mm
Internal width: 100 mm
Number of flammable sides: 4
Surface protection: galvanized
Color: zinc
Partition walls possible: no
With floor perforation: yes
Cover fastening: other
Additional details: External corner with intumescent fire protection fabric for the PYROLINE® Rapid PLM installation channel. Suitable for direct wall and ceiling mounting, installation below system floors, and on support systems. Tool-free joint assembly with joint connector PLM SI. The cover snaps on without tools, allowing for quick inspection and reallocation. The cover overhang enables offset cover installation for continuous potential equalization along the entire channel run.
Exact colour description | Other |
Material | strip galvanised |
Cable routing type | Installation duct |
mounting style | Duvet |
Height | 1.10 cm |
Width | 22 cm |
Length | 3.30 cm |
Item number | 32925949 |
Manufacturer | OBO Bettermann |
Category | Cable routing |
Manufacturer no. | 7218038 |
Release date | 19/4/2023 |
Colour | Silver |
Exact colour description | Other |
Material group | Metal |
Material | strip galvanised |
Cable routing type | Installation duct |
mounting style | Duvet |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 1.10 cm |
Width | 22 cm |
Length | 3.30 cm |
Product Safety |
