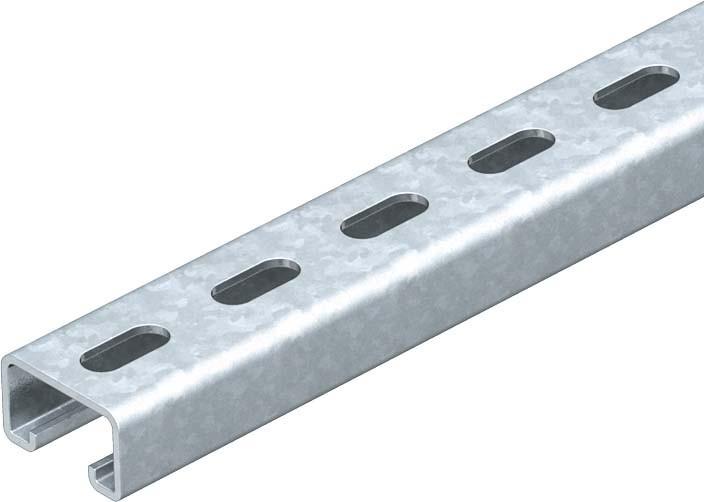

OBO Bettermann profile rail perforated MS5030P0700FT

Manufacturer: OBO Bettermann
Designation: Profile rail perforated 700x50x30, St, FT
Type: MS5030P0700FT

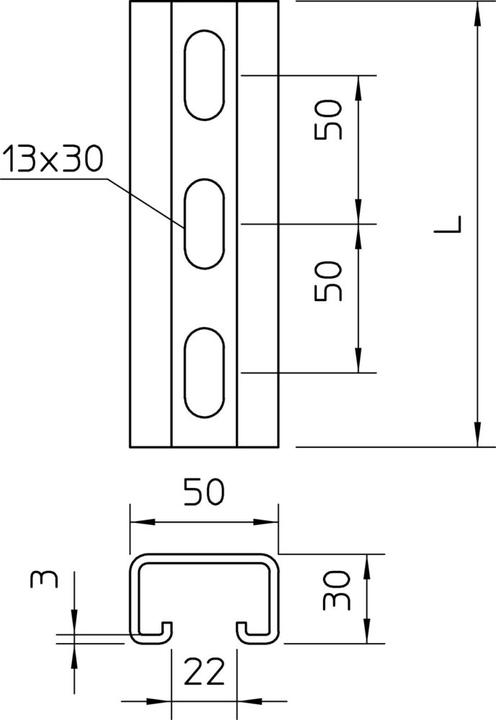

Length: 700 mm
Width: 50 mm
Height: 30 mm
Slot width: 22 mm
Material thickness: 3 mm
Profile shape: C-profile
Design: Single profile
Type of perforation: Back perforated
Hole width: 13 mm
With serration: No
Can be broken off: No
Surface moment of inertia ly: 3.99 cm4
Area moment of inertia lz: 13.11 cm4
Moment of resistance Wy: 3.95 cm³
Moment of resistance Wz: 6.38 cm³
Suitable for functional integrity: No
Material: Steel
Material quality: Other
Surface protection: Hot-dip galvanised

OBO Bettermann profile rail perforated MS5030P0700FT is a heavy C-profile rail designed for the individual installation of support structures, such as cable trays or as a bracket for switch cabinets. It can also be used for cable routing in conjunction with U-brackets with U-foot.
