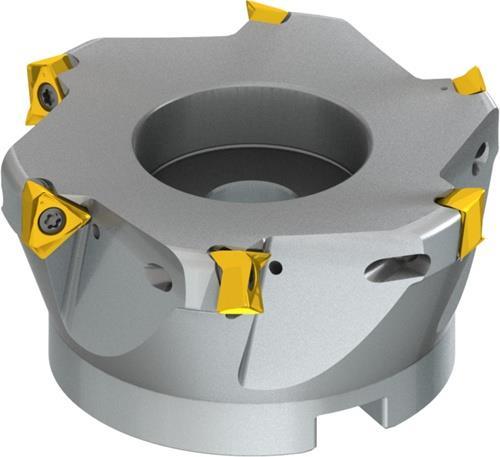

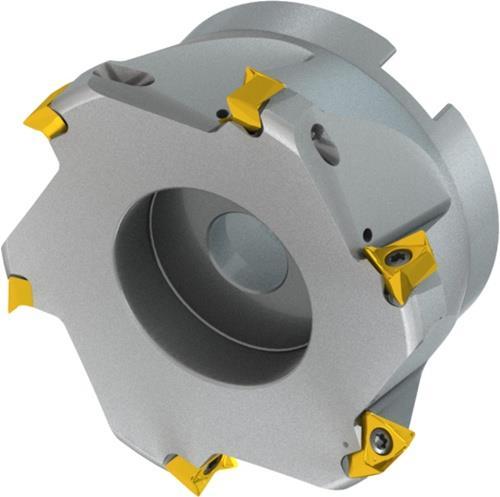

The shoulder mill ISO 100A06R-S90TN16-C is a highly advanced tool designed for precise milling applications. With a cutting diameter of 100 mm and a bore of 32 mm according to DIN 8030-A, this mill features a double negative geometry that allows for efficient chip removal. The design includes continuous cooling and an unequal pitch, specifically optimized for face milling, shoulder milling, flat slot milling, and spiral milling in pre-machined holes. The mill is designed for right-hand rotation and offers a maximum speed of 10,000 RPM, making it a versatile choice for various machining requirements. With an axial chip angle of -9.5 degrees and a radial chip angle of -16 degrees, this mill ensures excellent performance and durability.

• Double negative geometry for efficient chip removal
• Continuous cooling for improved performance
• Optimized for face milling, shoulder milling, and slot milling
• Maximum speed of 10,000 RPM
• Screw clamping through the bore for secure attachment.
