Actuator type: Plunger
Contact number and position: DPST
Contact configuration: Normally closed, normally open
Protection class: IP65
Current max: 10 A
Housing material: Plastic
AC voltage max: 400 V
DC voltage max: 250 V
Connection type: Cable
Contact type: Snap action
Connection type: Screw fixing
Length: 30.3 mm
Width: 30 mm
Mounting position: Vertical

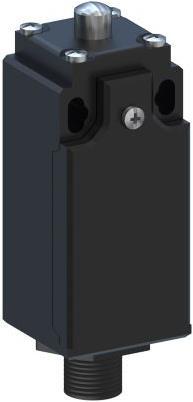

IEC 947-5-1, EN 60947-5-1. RS limit switch series M20 AP. Easy-to-use electromechanical limit switches offer special qualities and specially designed detection devices with features such as presence/absence, positioning and end position, passing objects, and counting. These limit switches are made of reinforced UL-VO thermoplastic fiberglass and offer double insulation and IP65 protection. Visible operation ability to change high currents - 10 A conventional thermal current. Electrically isolated contacts, precise operating points, consistency, and insensitivity to electromagnetic interference. Choice of actuating heads: single plunger, roller plunger, roller lever. Standardized dimensions in accordance with EN 50047 and EN 50041. Plastic housing with IP65 protection and double insulation. Limit switch with double insulated plastic housing according to IP65.
