Tehalit Inside corner
0.70 cmMore than 10 items in stock at supplier
Length
Product details

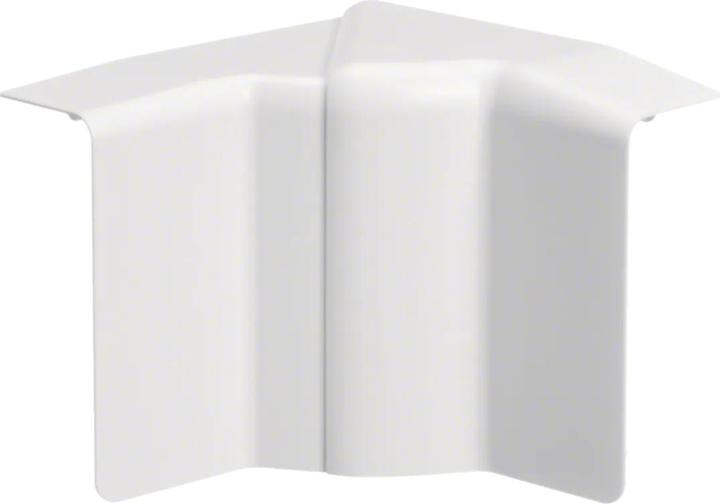

Tehalit inner corner SL2005549016
Manufacturer: Tehalit
Designation: Inner corner to SL 20x55mm vw
Type: SL2005549016
Height: 55 mm
Depth: 20 mm
Sealing lip upper part: Without
Material: Plastic
Halogen-free: Yes
Color: Traffic white
RAL number: 9016
Decor: Without
Design: Hood molded part

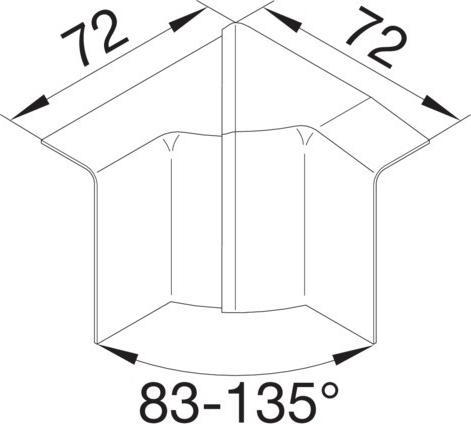

Angle: 83 to 135 degrees
Protection class (IP): IP40
Impact resistance: IK07
Tehalit inside corner SL2005549016 is an adjustable cut-laminating, halogen-free inner corner for SL 20x55mm in traffic white. This inner corner is designed as a molded part for the electrical installation trunking system skirting trunking according to DIN EN 50085-1 as device installation trunking. The cut-laminating inner corner snaps onto the lower part. The axially angle-adjustable (83 to 135 degrees) and extendable inner corner allows for compensation of structural inaccuracies and better compliance with bending radii.
EAN: 4012740017565.
Exact colour description | traffic white RAL9016 |
Material | Acrylonitrile butadiene styrene (ABS) |
Cable routing type | Skirting board channel |
Height | 5.50 cm |
Width | 2 cm |
Length | 0.70 cm |
Item number | 20027659 |
Manufacturer | Tehalit |
Category | Cable routing |
Manufacturer no. | SL2005549016 |
Release date | 16/3/2022 |
Colour | White |
Exact colour description | traffic white RAL9016 |
Material group | Plastic |
Material | Acrylonitrile butadiene styrene (ABS) |
Cable routing type | Skirting board channel |
Protection type (IP code) | IP40 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 5.50 cm |
Width | 2 cm |
Length | 0.70 cm |
Length | 19.20 cm |
Width | 19 cm |
Height | 3.80 cm |
Weight | 25 g |
