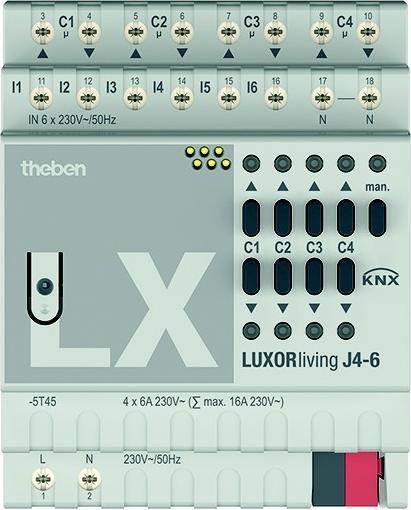

Theben Jalousie Actuator LUXORliving J4-6

Manufacturer: Theben
Designation: 4-channel Jalousie actuator
Type: LUXORliving J4-6
Bus system KNX: yes
Bus system KNX-RF: no
Bus system Radio Bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: LUXORliving bidirectional RF: no
Mounting type: REG
Width in division units: 4
With bus coupling: no
Bus module removable: no
Local/manual operation: yes
With LED display: yes
Number of inputs: 6
Switching current resistive: 6 A
Max. number of Jalousie outputs: 4
Switching function: no
Type of current: AC
Protection class (IP): IP20

The Theben Jalousie actuator LUXORliving J4-6 is a 4-channel actuator with integrated inputs for switches. It serves as a replacement for the drive control of the LUXOR residential comfort control system and allows for an easy system transition for existing LUXOR customers to LUXORliving. The actuator controls drives for blinds, roller shutters, as well as sun and privacy protection devices. It features 8 relay outputs for 4 drives (Up/Down) and 4 inputs for individual operation of the drives (230V). Additionally, there are 2 inputs for central and group control (230V). The relay outputs are not potential-free or potential-independent, but are powered by the supply voltage. This means that all drives connected to the actuator are controlled via the same phase. This should be taken into account when switching from LUXOR to LUXORliving.
EAN: 4003468480380.
