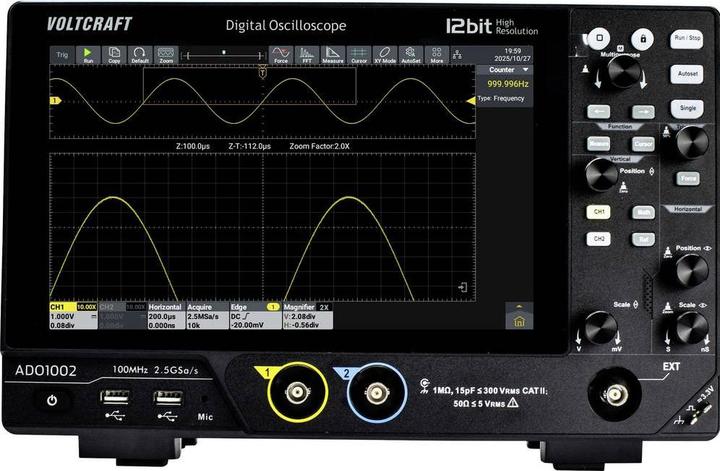

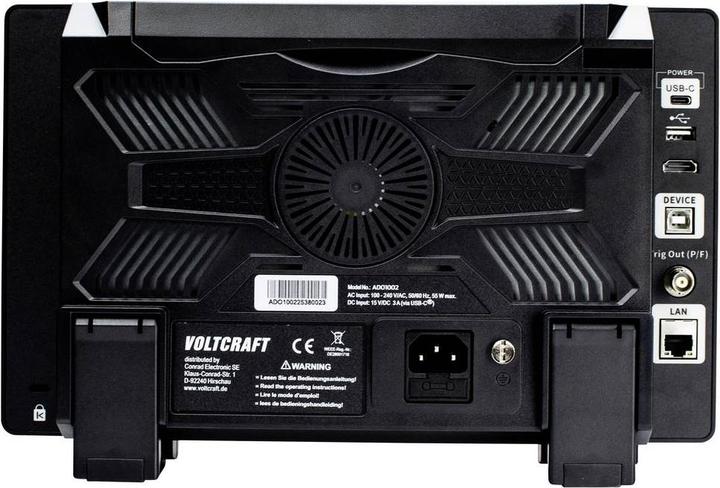

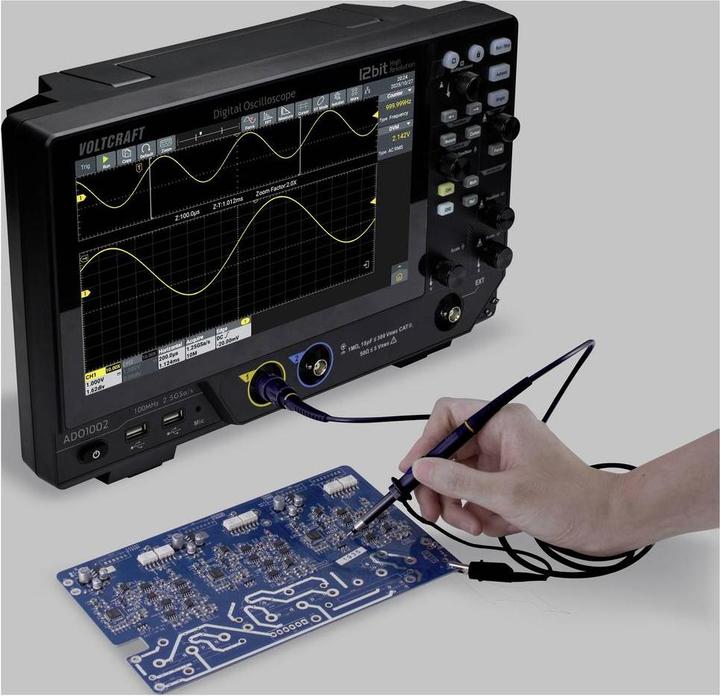

First-class technology in a compact format. The ADO-1002 oscilloscope from Voltcraft impresses with its high-quality features and handy design, making it ideal for mobile use. The heart of the device is the 10.1-inch display with a resolution of 1024 x 600 pixels. For system integration, various interfaces such as HDMI, USB, LAN, and a trigger output are available.

High-speed signal acquisition and performance. With a real-time sampling rate of up to 2.5 GSa/s, the ADO-1002 offers excellent time resolution. Thanks to the high update rate of 500,000 wfms/s, the Voltcraft oscilloscope can identify even extremely rare and short signal disturbances and display them accurately.

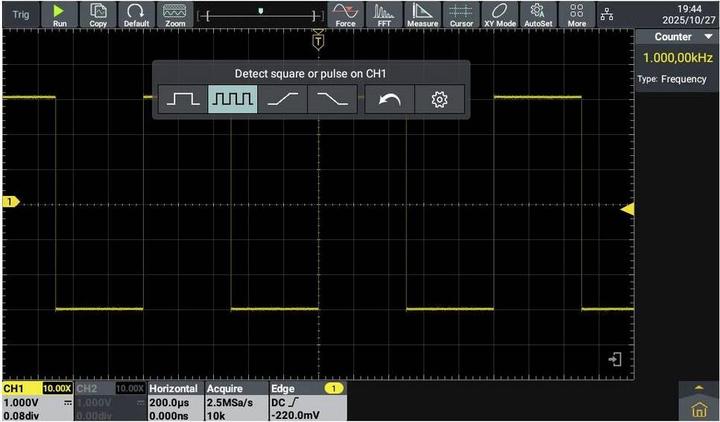

Comprehensive trigger options for complex analyses. The vast range of trigger functions allows for the analysis of complex signals. In addition to standard triggers, the device supports advanced functions such as runt, window, timeout, and logic triggers, as well as protocol decoding for serial buses.

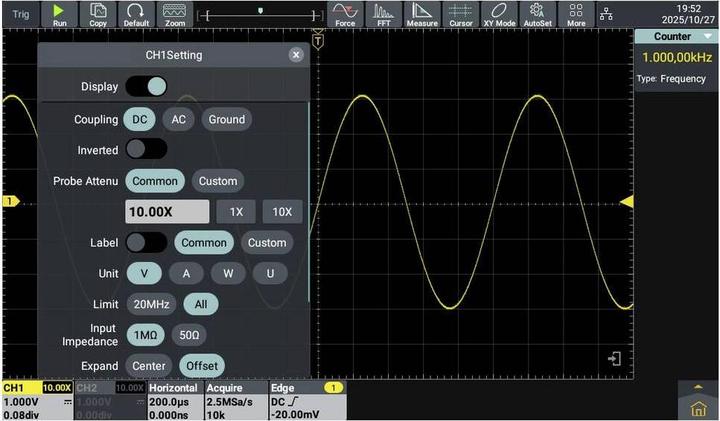

Technical details. The ADO-1002 oscilloscope offers a bandwidth of 100 MHz, two analog channels, and an external trigger input with a memory depth of 250 Mpts. Trigger sources can be defined as CH1, CH2, the AC mains line, or an external signal. During acquisition, it is possible to switch flexibly between the modes of sample, peak, high resolution, average, or segmentation. The vertical sensitivity ranges from 500 µV/div to 10 V/div at a 12-bit resolution, allowing for a detailed representation of various amplitudes. The minimal background noise makes even the finest signals visible without disruptive internal overlays.

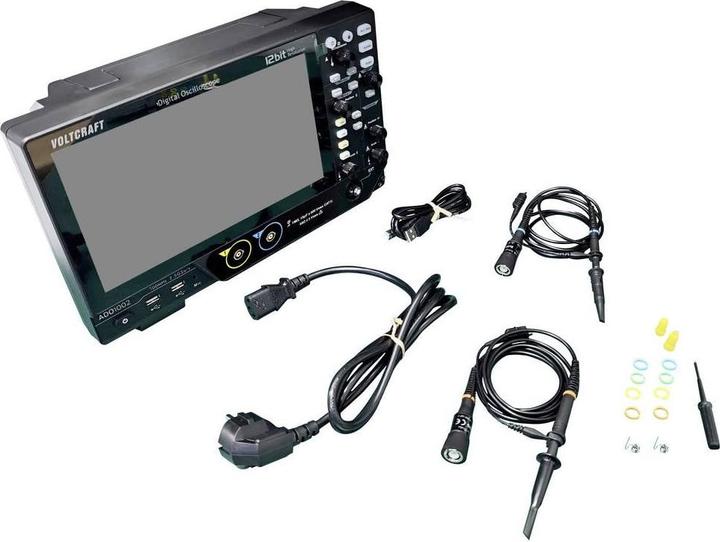

Delivery with accessories. The Voltcraft oscilloscope is delivered as a ready-to-use complete package, including a power cable, USB-A and USB-B cables, two probes, and a calibration set.
