Best selling Actuators from ABB
This page always stays fresh and updates automatically.
1. ABB UD/S6.210.2.1
Multichannel universal dimmer actuator optimized for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps, and dimmable halogen energy-saving lamps. Automatic load detection (deactivatable). Separate N connection per channel. Parallel connection of outputs to increase output power is possible. Outputs can be connected in any parallel configuration. Minimum load: 2 W. Manual operation at the device is also possible without bus voltage or in an unprogrammed state. Programming of the device is possible even without an applied 230 V supply voltage. Extensive testing and diagnostic functions via the i-bus tool. Quick parameterization in the ETS through copyable channel templates. With integrated bus coupler. Rated power at 230 V. Mains voltage: 230 V. Incandescent and halogen lamps: 6 x 210 W/VA up to 1 x 800 W/VA. Dimmable 230 V LEDi: 6 x 210 W/VA up to 1 x 800 W/VA in phase-cut, 6 x 80 W/VA up to 1 x 240 W/VA in phase-on. Inductive L transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA up to 1 x 800 W/VA. Electronic C transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA up to 1 x 800 W/VA. Electronic LC transformers with LED/low-voltage halogen lamp: 6 x 80 W/VA up to 1 x 240 W/VA.

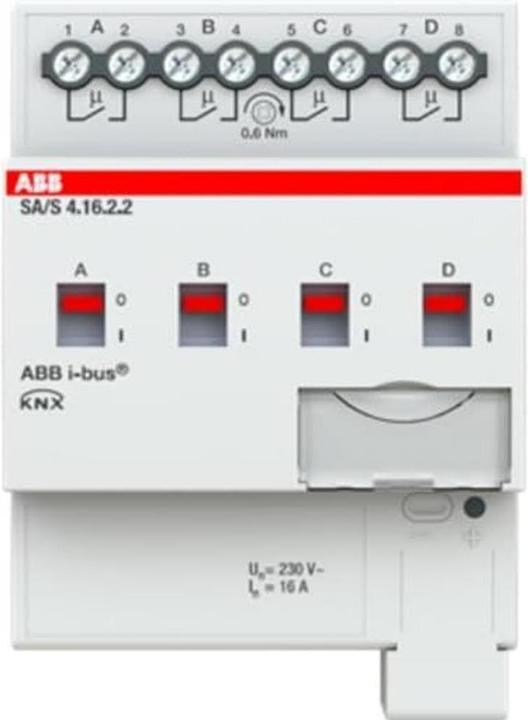

2. ABB Switch actuator 4gang 16 ASA/S4.16.2.2REG 2CDG110262R0011
ABB Stotz S&J Switching Actuator SA/S4.16.2.2
Manufacturer: ABB Stotz S&J
Designation: 4-channel switching actuator, 16A, REG
Type: SA/S4.16.2.2
Bus system KNX: yes
Bus system KNX-RF: no
Bus system Radio Bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional radio: no
Mounting type: REG
Width in division units: 4
Local/manual operation: yes
With LED display: yes
Max. switching power: 2500 W
Max. switching power for LED: 400 W
Output power: 2500 W
Suitable for C-load: no
Max. number of switching outputs: 4
Max. switching current: 16 A
Rated current: 16 A
Rated operating voltage: 230 V
Various phases connectable: yes
With bus coupling: no
Bus module removable: no
Min. depth of device box: 63.5 mm
Modular expansion option: no
Protection class (IP): IP20
The ABB Stotz S&J Switching Actuator SA/S4.16.2.2 switches electrical consumers via ABB i-bus® with 2, 4, 8, or 12 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching state of the contact is displayed. The 16A standard series is suitable for switching resistive loads (AC1).
3. ABB Switch actuator 12-fold, 16A, C-load SA/S12.16.5.2
Switches electrical consumers with 2, 4, 8, or 12 independent potential-free contacts via ABB i-bus®. Manual operation of each contact is possible. The switching state of the contact is displayed. The 16/20A, 16A-AC3, C-load series is particularly suitable for switching loads with high inrush current peaks, such as lighting fixtures with compensation capacitors or fluorescent lamp loads according to DIN EN 60669.
Type: SA/S12.16.5.2
Switch actuators 16/20 A switch actuator.
4. ABB JA/S4.SMI.1M JA/S4.SMI.1M Blind actuator Man, 4F, SMI
Controls four independent groups digitally, each with up to four SMI roller shutter or blind drives via ABB i-bus. Functions include up/down, slat adjustment/stop, drive to position, sun protection and heating/cooling automation, and status messages for drive and covering. Manual operation directly at the device is also possible without EIB/KNX voltage.

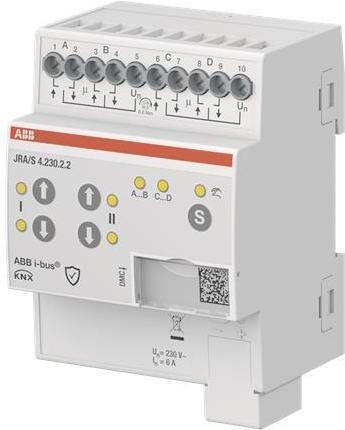

5. ABB TUB Thomas&Betts Striebel JRA/S4.230.2.2 Jal.Akt.,4f,Man.B.
The TUB Thomas&Betts Striebel JRA/S4.230.2.2 Jal.Akt. is a highly advanced shutter actuator specifically designed to control up to four independent groups of 230 V AC drives. This device allows for precise positioning of blinds, shutters, awnings, and other coverings, and also provides the capability to control doors, windows, and ventilation flaps. Manual operation directly at the device ensures user-friendly handling, while the electromechanical locking of the outputs offers additional safety. The actuator supports a variety of functions, including control of up/down movements, slat adjustment, position and scene control, as well as various safety and automation functions for sun protection and heating/cooling applications. With KNX compatibility, the actuator is ideal for modern smart home systems.
- Control of up to 4 independent groups of 230 V AC drives
- Manual operation without auxiliary voltage
- Electromechanical locking of the outputs
- Diverse functions such as position and scene control
- Compatible with KNX Smart Home protocol.
6. ABB Switch actuator 4gang, 16A, C-load SA/S4.16.5.2
ABB Stotz S&J Switching Actuator SA/S4.16.5.2 Manufacturer: ABB Stotz S&J Description: 4-channel switching actuator, 16A, C-load Type: SA/S4.16.5.2 Bus system KNX: yes Bus system KNX-RF: no Bus system Radio Bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without RF bidirectional: no Mounting type: REG Width in modular units: 4 Local/manual operation: yes With LED display: yes Max. switching power: 3680 W Max. switching power LED: 400 W Output power: 3680 W Suitable for C-load: yes Max. number of switching outputs: 4 Max. switching current: 20 A Rated current: 20 A Rated operating voltage: 230 V Different phases connectable: yes With bus coupling: yes Bus module removable: no Min. depth of device box: 64.5 mm Modular expansion option: no Protection class (IP): IP20 The switching actuator controls electrical consumers via ABB i-bus® with 2, 4, 8, or 12 independent potential-free contacts. Manual operation of the contact is possible for each output. The switching state of the contact is displayed. The 16/20A, 16A-AC3, C-load series is particularly suitable for switching loads with high inrush current peaks, such as lamps with compensation capacitors or fluorescent lamp loads according to DIN EN 60669. EAN: 4016779066471.
7. ABB Jalousieaktor
The ABB blind actuator is a versatile control device specifically designed for the precise control of blinds, roller shutters, awnings, and similar applications. It allows for the operation of two independent groups, each capable of controlling two 230 V AC drives. With features such as automatic travel time determination and manual operation directly on the device, this actuator offers a user-friendly solution for automating windows, doors, and ventilation flaps. The blind actuator is designed to support a variety of functions, including slat control, safety features, and integration into a KNX system for comprehensive building automation. The electromechanical locking of the outputs ensures safe and reliable operation.
- Control of two independent groups of drives
- Automatic travel time determination for precise positioning
- Manual operation directly on the device possible
- Integrated safety features and status messages
- Compatible with KNX for comprehensive building automation.

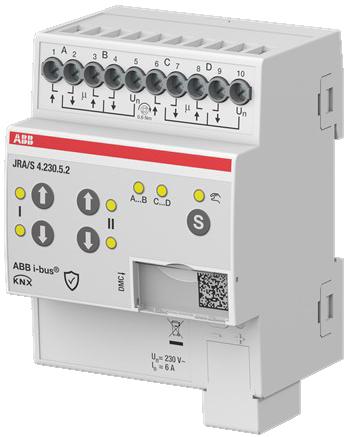

8. ABB TUB Thomas&Betts Striebel JRA/S4.230.5.2 Jal.Akt.,4f,Fahr,Man.
The TUB Thomas&Betts Striebel JRA/S4.230.5.2 is a highly advanced switching actuator specifically designed to control up to four independent groups of 230 V AC drives. This actuator is ideal for positioning blinds, shutters, awnings, as well as controlling doors, windows, and ventilation flaps. With features such as automatic travel time determination and manual operation directly on the device, it offers a user-friendly solution for automating shading systems. The actuator requires no auxiliary voltage and ensures safe operation through electromechanical locking of the outputs. Additional features include control of up and down movements, slat adjustment, position and scene control, as well as various safety and automation functions that enhance comfort and safety in residential or work environments.
- Control of up to four independent groups of 230 V AC drives
- Automatic travel time determination and manual operation
- No auxiliary voltage required
- Electromechanical locking of outputs for increased safety
- Extensive functions such as sun protection and heating/cooling automation.

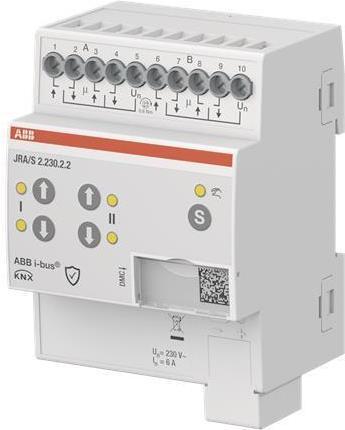

9. ABB Jalousie-/Rollladenaktor 2f. Man.B.
The ABB blind/shutter actuator is a versatile control device specifically designed for the manual operation of two independent groups of 230 V AC drives. It enables precise positioning of blinds, shutters, awnings, and other drapes, and is also suitable for controlling doors, windows, and ventilation flaps. The actuator does not require auxiliary voltage and offers direct manual operation at the device. The electromechanical locking of the outputs provides additional safety and reliability. With a variety of functions, including up and down control, slat adjustment, position and scene control, as well as safety features, this actuator is an ideal solution for modern building automation. Additionally, it supports automation for sun protection and heating and cooling functions and provides status messages for monitoring operation.
- Control of two independent groups of drives
- Manual operation without auxiliary voltage
- Electromechanical locking of the outputs
- Diverse functions such as position and scene control
- Automation for sun protection and heating and cooling functions.

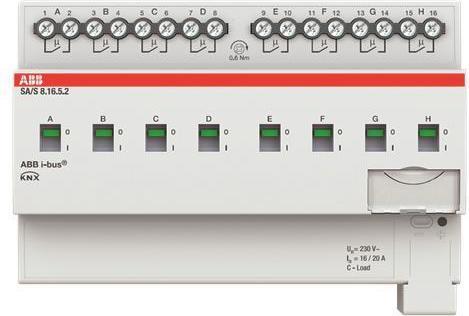

10. ABB Switch actuator
ABB Stotz S&J switch actuator SA/S8.16.5.2
Manufacturer: ABB Stotz S&J
Designation: Switch actuator
Type: SA/S8.16.5.2
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: REG
Width in division units: 8
On-site/manual operation: Yes
With LED display: Yes
Max. switching capacity: 3680 W
Max. LED switching capacity: 400 W
Output capacity: 3680 W
Suitable for C-load: Yes
Max. number of switching outputs: 8
Number of switching outputs: 8
Max. rated current: 20 A
Rated operating voltage: 230 V
Different phases connectable: Yes
With bus coupling: Yes
Bus module removable: Yes
Min. depth of device box: 64.5 mm
Modular expansion option: Yes
Protection class (IP): IP20
The ABB Stotz S&J switch actuator SA/S8.16.5.2 switches electrical loads via ABB i-bus® with 2, 4, 8, or 12 independent floating contacts. Manual operation of the contact is possible for each output, and the switching state of the contact is displayed. The 16/20A, 16A-AC3, C-load series is particularly suitable for switching loads with high inrush current peaks, such as lamps with compensation capacitors or fluorescent lamp loads according to DIN EN 60669.
