Best selling Actuators from Busch-Jaeger
On this page you’ll find a ranking of the best Actuators from Busch-Jaeger. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Busch-Jaeger Sensor/shutter actuator
Busch-Jaeger Sensor/Shutter Actuator 6213/1.1
Manufacturer: Busch-Jaeger
Designation: Sensor/Shutter Actuator 1/1-fold
Type: 6213/1.1
Other Bus Systems: free@home
Mounting Type: Flush-mounted
With Bus Coupling: yes
Local/Manual Operation: yes
With LED Display: yes
Number of Inputs: 1
Switching Current Resistive: 4 A
Max. Switching Power: 920 W
Max. Number of Shutter Outputs: 1
Current Type: AC
Protection Class (IP): IP20
Min. Depth of Device Box: 40 mm
The Busch-Jaeger Sensor/Shutter Actuator 6213/1.1 is designed for controlling shutter or awning motors. It features an integrated shutter actuator. The shutter function is available without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes).
For connection to switch 1-fold 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx, and 6234-10-xxx. The bus connection is made via the included bus terminal. When installing in the flush-mounted box, ensure a spatial separation between the bus and the 127 V/230 V installation cable. If the minimum distance is not met, for example, use electronic boxes or insulating tubes.
Programming is only possible when bus voltage is applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online user manual in the current online catalog.
EAN: 4011395180044.

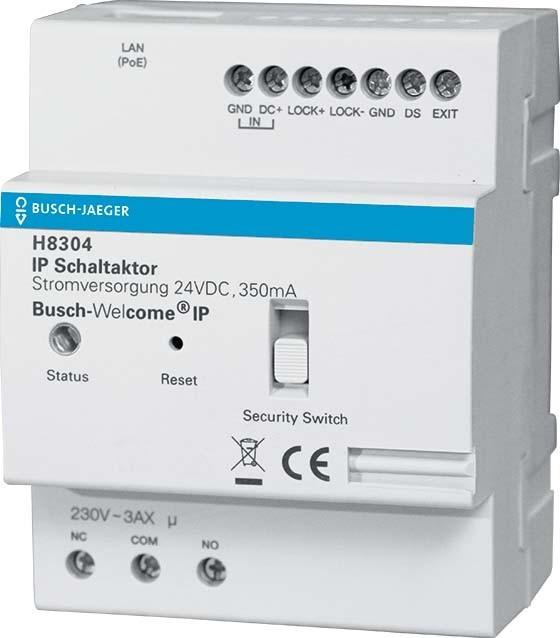

2. Busch-Jaeger IP switching actuator
Busch-Jaeger IP Switch Actuator H8304-03
Manufacturer: Busch-Jaeger
Designation: IP Switch Actuator
Type: H8304-03
Function: Switching
Installation Technology: Network Technology
Material: Plastic
Interface Type: LAN
Mounting Type: DIN Rail
Width: 65 mm
Height: 90 mm
Depth: 72 mm
Width in Division Units: 4
Additional Details:
For connecting an electric door opener or for switching lights. Connection option for an electric door opener (DC: 12 V DC, 4 A pulse, max. 500 mA continuous or AC: 12 V AC, 50 Hz, max. 500 mA continuous). Potential-free contact: 230 V AC, 3 A or 30 V DC, 3 A. Connection option for an external door sensor to detect the door status after opening. Connection option for an external door button for door opening. Switching duration for door opener and light adjustable via IP Touch 7 or Smart Access Point. Power supply via Power-over-Ethernet (PoE) 802.3af.
3. Busch-Jaeger USB-Stick
The Eve Energy and Busch-free@home® Thread USB Stick Set serves as an easy entry point for Matter over Thread capable devices into the Busch-free@home® ecosystem. The Thread USB stick is integrated into a free USB port of the System Access Point. By simply scanning the QR codes with the Busch-free@home® Next App, the Eve Energy devices are integrated into the Busch-free@home® system.
System requirements:
System Access Point from HW version 2.0 including Matter Controller Addon
Free USB A port on the System Access Point
Busch-free@home® Next App and mobile device with camera.
Product series: Eve, Busch-free@home®.

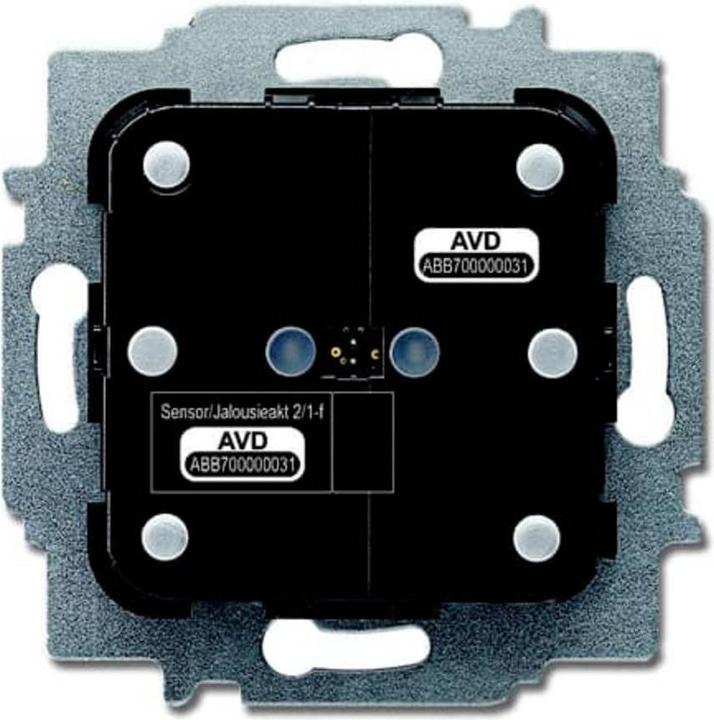

4. Busch-Jaeger Sensor/shutter actuator 6213/2.1
Busch-Jaeger Sensor/Shutter Actuator 6213/2.1
Manufacturer: Busch-Jaeger
Designation: Sensor/Shutter Actuator 2/1-fold
Type: 6213/2.1
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Installation Type: Flush-mounted
With Bus Coupling: no
Bus Module Removable: no
Local/Manual Operation: yes
With LED Display: no
Number of Inputs: 1
Switching Current Resistive: 4 A
Max. Switching Power: 920 W
Max. Number of Shutter Outputs: 1
Current Type: AC
Protection Class (IP): IP20
Min. Depth of Device Box: 32 mm
The Busch-Jaeger Sensor/Shutter Actuator 6213/2.1 is a 2/1-fold shutter actuator for Busch-free@home®. It is suitable for controlling shutter or awning motors and features an integrated shutter actuator. The shutter function is available without prior programming (left sensor channel preconfigured). Configuration can be changed later via the web interface (groups, scenes). The right sensor channel is used for programming additional functions (groups, scenes).
The bus connection is made via the included bus terminal. When installing in the flush-mounted box, care must be taken to maintain a spatial separation between the bus and the 127 V/230 V installation line. If the minimum distance is not maintained, electronic boxes or insulating sleeves should be used. Programming is only possible with bus voltage applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online user manual.
EAN: 4011395180068.
5. Busch-Jaeger Heating actuator
Busch-Jaeger heating actuator 6-fold 6254/0.6
Manufacturer: Busch-Jaeger
Designation: Heating actuator 6-fold REG
Type: 6254/0.6
Other bus systems: free@home
Mounting type: REG
Width in pitch units: 4
With bus coupling: Yes
Actuating variable continuous: Yes
Actuating variable switching: No
Valve protection function: Yes
Max. switching current (ohmic load): 1 A
Number of outputs: 6
Max. output current: 0.16 A
Output current: 0.16 A
Switching voltage: 24 V
Protection class (IP): IP20
For controlling thermoelectric actuators in heating/cooling systems. Up to 3 actuators 6164/10-102 or 1 actuator 6164/11-102 can be connected per output. The outputs are short-circuit and overload protected. The bus connection is made via the enclosed bus terminal. Programming is only possible with bus voltage applied via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online operating instructions in the current online catalog. EAN: 4011395180419.
6. Busch-Jaeger BJ 6211/2.1 Sensor/switch actuator 2/1-fold
Busch-Jaeger Sensor/Switch Actuator 6211/2.1
Manufacturer: Busch-Jaeger
Designation: Sensor/Switch Actuator 2/1-fold
Type: 6211/2.1
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: miscellaneous
Mounting Type: Flush-mounted
Local/Manual Operation: yes
With LED Display: no
Max. Switching Power: 2300 W
Max. Number of Switching Outputs: 1
Max. Switching Current: 10 A
Rated Current: 10 A
Rated Operating Voltage: 230 V
Connectable Different Phases: no
With Bus Coupling: no
Bus Module Removable: no
Min. Depth of Device Box: 32 mm
Modular Expansion Option: no
Protection Class (IP): IP20
The Busch-Jaeger Sensor/Switch Actuator 6211/2.1 is a 2/1-fold sensor/switch actuator for Busch-free@home®. It is suitable for switching 127 V~/230 V~ consumers and features an integrated switch actuator. The switching function is available without prior programming (left sensor channel pre-configured). The configuration can be changed later via the web interface (groups, scenes). The right sensor channel is intended for programming additional functions (groups, scenes).
The connection is made via rocker 2-fold 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx, and 6234-2x-xxx. The bus connection is made via the included bus terminal. When installing in the flush-mounted box, care must be taken to maintain spatial separation between the bus and the 127 V/230 V installation cable. If the minimum distance is not maintained, electronic boxes or insulating tubes should be used.
Programming is only possible with bus voltage applied via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online user manual.
EAN: 4011395179994.
7. Busch-Jaeger Series/shutter actuator
Busch-Jaeger Series/blind actuator 6705-101 Manufacturer: Busch-Jaeger Designation: Series/blind actuator flush-mounted Type: 6705-101 Suitable for shutter switches: yes Suitable for blind switches: yes Suitable for blind/roller shutter switches: yes Suitable for switches: yes In housing: yes Power supply: 230 V AC Switching operation: yes Number of relays: 2 Mounting type: other Material: Plastic Material grade: thermoplastic Halogen-free: yes Surface protection: untreated Surface finish: matt Mounting type: other Color: white RAL number (similar): 9016 Suitable for protection class (IP): IP20 Radio frequency: 868 MHz Modulation: VHF (FM)Busch-Jaeger serial/blind actuator 6705-101: more detailsFor switching electrical loads by radio. For driving and adjusting blinds/shutters and awnings by radio. Functions via radio: series switch, blind switch and light scene control. Functions via extension: serial switch, blind switch and send radio telegram. Operation via conventional pushbuttons (2020 US, 2012/6 UK) possible. Operation of the extension (via conventional pushbutton) leads to switching of the output and sending of a radio telegram. Actuation of the extension in the serial switch function: alternate sending of an ON/OFF telegram. Actuation of the extension in the shutter switch function: Extension 1 sends UP telegram and extension 2 sends DOWN telegram. For Waveline 6731-xxx, 6732-xxx and 6733-xxx wall transmitters. For handheld transmitter WaveLINE 6780. In the blind switch function: running time 3 min. repeater function can be activated to increase the range. For universal mounting or installation. 3-wire connection technology (neutral conductor required). For mounting in (deep) flush-mounted boxes according to DIN 49073. Can be controlled via up to 32 transmitter addresses. Transmitting/receiving frequency: 868 MHz. Range: approx. 100 m (free field). If required, please refer to the current online catalog for further information. , EAN: 4011395182659.

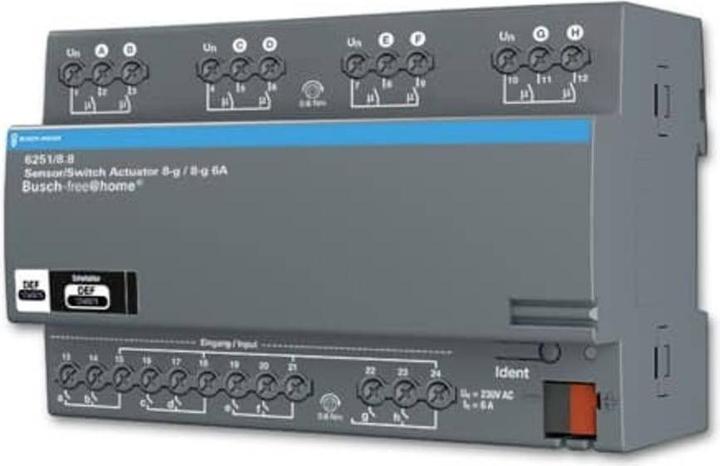

8. Busch-Jaeger Sensor/switch actuator 6251/8.8
Busch-Jaeger Sensor/Switch Actuator 6251/8.8
Manufacturer: Busch-Jaeger
Designation: Sensor/Switch Actuator 8/8-fold DIN Rail Actuator
Type: 6251/8.8
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Bidirectional Radio: yes
Mounting Type: DIN Rail
Width in Division Units: 8
Local/Manual Operation: no
With LED Display: no
Number of Digital Inputs: 8
Max. Switching Power: 1200 W
Output Power: 1380 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 8
Max. Switching Current: 6 A
Rated Current: 6 A
Rated Operating Voltage: 230 V
Different Phases Connectable: yes
With Bus Coupling: no
Bus Module Removable: no
Min. Depth of Device Box: 64.5 mm
Modular Expansion Option: no
Protection Class (IP): IP20
Busch-Jaeger Sensor/Switch Actuator 6251/8.8: Additional Details
8-fold switch actuator/binary input for Busch-free@home®. Combination device with 8 binary inputs and 8 switch actuators. Conventional switches or auxiliary contacts can be connected to 8 channels. The information from the contact query can be used to control Busch-free@home® actuators or to capture status information. The contact query voltage is provided by the device itself. Maximum cable length with a cross-section of 1.5 mm² is under 100 m. For switching 8 independent 230 V~ consumers. No additional commissioning software is required. Programming is only possible with bus voltage applied via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online operating instructions.
EAN: 4011395180396.

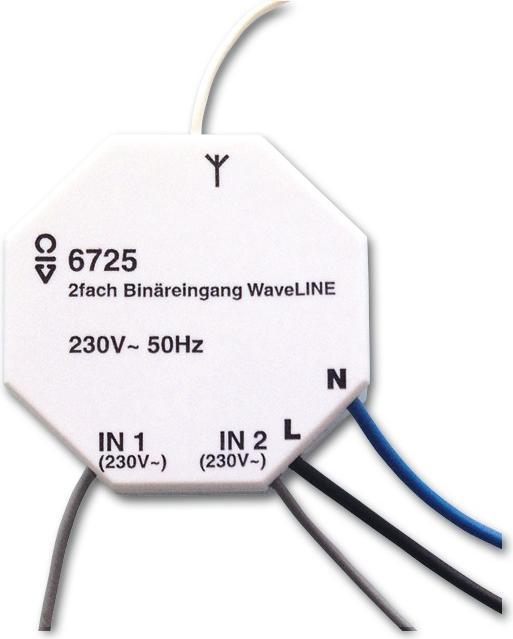

9. Busch-Jaeger Binary input Wavel-LINE 6725
The WaveLINE 6725 binary input from Busch-Jaeger is a versatile heating actuator designed for controlling electrical devices and blinds. With the capability to manage two channels, this device offers a flexible solution for automating lighting and blinds in residential and commercial spaces. The WaveLINE 6725 allows control via conventional switches and sends radio telegrams upon activation, enabling easy integration into existing systems. The various operating modes allow for switching, dimming, and controlling lighting scenes, providing customization to meet user needs. Additionally, the binary input can be installed in flush-mounted boxes and is suitable for indoor use. With a range of up to 100 meters in open field, it ensures reliable communication.
- Five operating modes: switching, dimming, blind control, lighting scene control, and permanent switching
- Compatible with conventional switches and WaveLINE actuators for enhanced functionality
- Repeater function can be activated to extend range
- Installation in flush-mounted boxes according to DIN 49073 is possible
- Wireless communication at a frequency of 868 MHz.

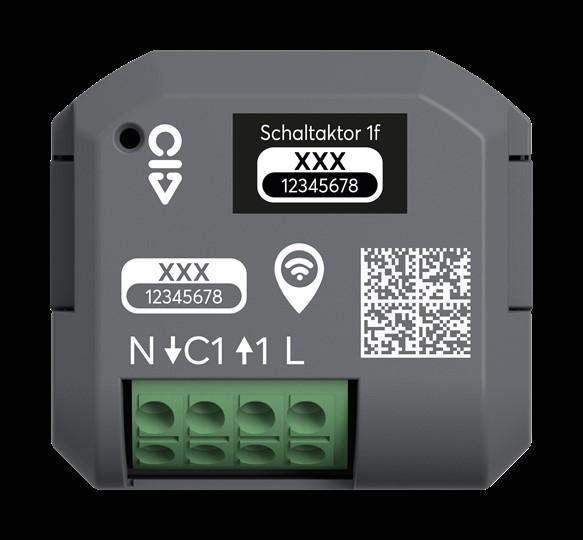

10. Busch-Jaeger Schaltaktor 1-fach, UP
10-piece variant of wireless flush-mounted actuator for controlling lighting systems. Usable in Busch-flexTronics® wireless single control as a standalone renovation solution or radio-networked room control with up to 32 devices. Integratable into Busch-free@home® wireless via System Access Point with up to 150 devices. 3-wire connection technology (neutral wire required). With push-in spring-loaded terminals. With secondary input. Operation via conventional switches (e.g., 2020 US) is possible. Compatible with secondary switch insert flex, 64891 U. Compatible with Smart-Switch wireless 62721 U-WL and 62721/01 U-WL. Remotely controllable via Bluetooth through smartphone/tablet app. Programming via Bluetooth with the Busch-free@home® Next App or through the web interface of the System Access Point. To be installed only in conjunction with commercially available flush-mounted device boxes according to DIN 49073 Part 1.
