Best selling Cable routing accessories from Dehn
On this page you'll find a ranking of the best Dehn products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Dehn 423020
Pipe clamps for connecting downpipes to the lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3).
Connection options for Rd, e.g., with KS connector item no. 301 000 or with clamp block item no. 390 150 (depending on material).
Features
- additional torsion protection for the fastening screw
- stamped cutting aids
- with markings and predetermined bending points
Selection criteria
Material: Steel tZn
Clamping range: 60 - 150 mm
Length: 494 mm
Technical data
Screw material: stainless steel
Drilling diameter: 10.5 mm
Screw: M8 x 25 mm
Item number: DEH423020
Shop number: 102437
EAN: 4013364054288.

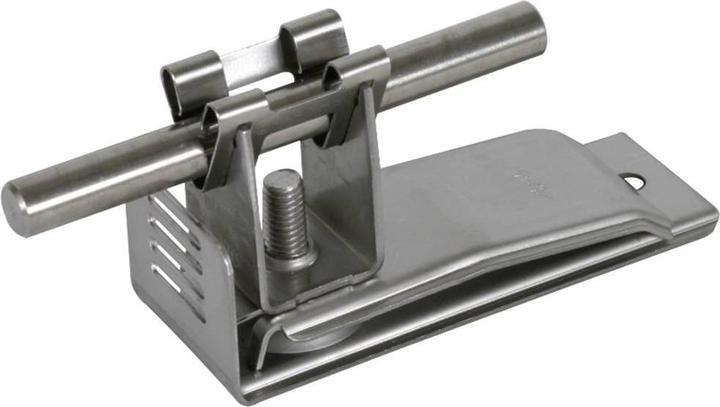

2. Dehn Roof conductor holder f. roof wall panels 206389
Dehn 206389 DLHDGH20UK8V2A.
3. Dehn Band pipe clamp
Dehn + Soehne band pipe clamp B 25mm NIRO 106 323 (106323).
4. Dehn Downpipe clamp D 100mm Cu-St/tZn version 420207
DEHN Rain Pipe Clamp ZMRRS100KB610CUSTTZN
Manufacturer: DEHN
Description: Rain pipe clamp D 100mm Cu-St/tZn
Type: ZMRRS100KB610CUSTTZN
Clamping/holding range: 100 mm
Material: Copper/Steel
Surface protection: Hot-dip galvanized
Bimetal connector: Yes
Explosion-proof: No
Additional details: Pipe clamp according to DIN EN 62561-1, for connecting rain downpipes to the lightning protection potential equalization according to DIN EN 62305-3. Connection options D11 mm for round conductors, e.g., with KS connector or with clamp block. Bimetal design, for connecting steel conductors with copper rain downpipes, with clamp block St/tZn and intermediate plate (Cupal), for fixed pipe diameters with screw M8.
EAN: 4013364045873.
5. Dehn Clamping head for 540900 Stainless steel earthing strap pipe clamp
The tension head for the 540900 grounding band pipe clamp from Dehn is a high-quality accessory specifically designed for the safe and reliable connection of pipes within the framework of protective and functional potential equalization. It meets the requirements according to DIN VDE 0100-410/540 and is intended for use with a continuous tension band of 25 x 0.3 mm. The tension head is made of stainless steel 304 (V2A), which provides high corrosion resistance and durability. With a connection cross-section of 4-25 mm², it offers flexibility in application and is suitable for various installation requirements. The untreated surface ensures optimal adhesion and connection, while the compact design allows for easy handling. This product is ideal for professionals who value quality and safety in their installations.
- Use according to DIN VDE 0100-410/540 for protective and functional potential equalization
- Compatible with continuous tension band 25 x 0.3 mm
- Made of corrosion-resistant stainless steel 304 (V2A)
- Flexible connection cross-section of 4-25 mm².
Cable routing accessories
EUR9,22
Dehn Clamping head for 540900 Stainless steel earthing strap pipe clamp

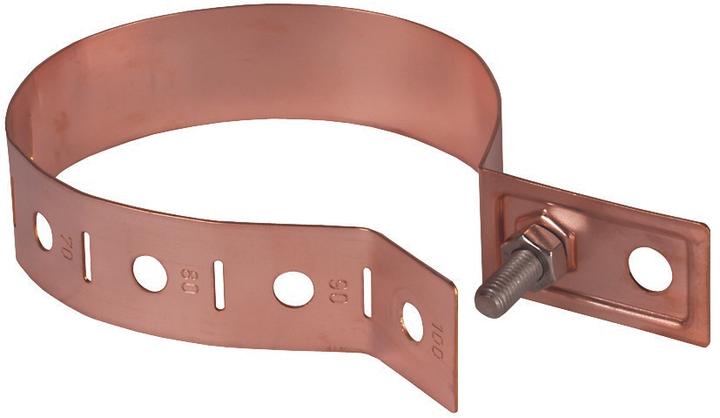

6. Dehn Rain pipe clamp 60-150mm Cu w. 423027
The rain pipe clamp 60-150mm from Dehn is a high-quality accessory for cable management, specifically designed for connecting rainwater downpipes to the lightning protection equipotential bonding. It meets the requirements of DIN EN 62561-1, making it suitable for use in safety-critical applications. The adjustable design allows for adaptation to various pipe diameters, while the integrated anti-twist feature of the fastening screw ensures reliable installation. The clamp is equipped with predetermined bending points and stamped cutting aids, which facilitate installation and improve handling. Made from high-quality copper, this product offers a durable and corrosion-resistant solution for lightning protection and rainwater drainage needs.
- Adjustable design for various pipe diameters
- Integrated anti-twist feature of the M8 fastening screw
- Markings and predetermined bending points for easy installation
- Made from corrosion-resistant copper.

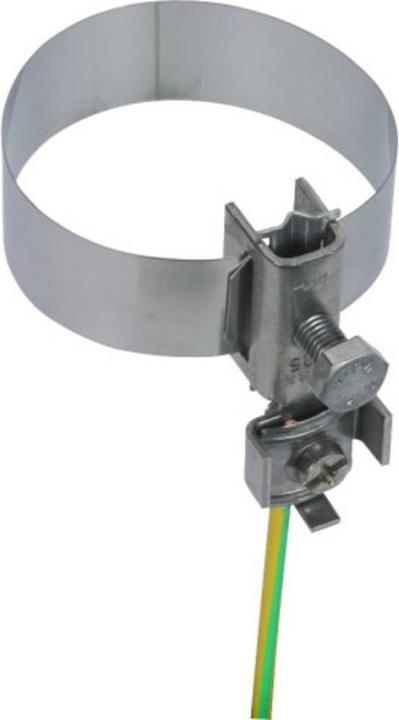

7. Dehn SOEHNE Earthing strap pipe clamp D 26.9-165mm 540 912
Earthing strap pipe clamp for binding pipes into the protection and functional equipotential bonding according to DIN VDE 0100-410/540. Standard version with a continuously adjustable clamping strap made of stainless steel, for connecting one or two conductors or through-wiring, connection cross section 4-25 mm².

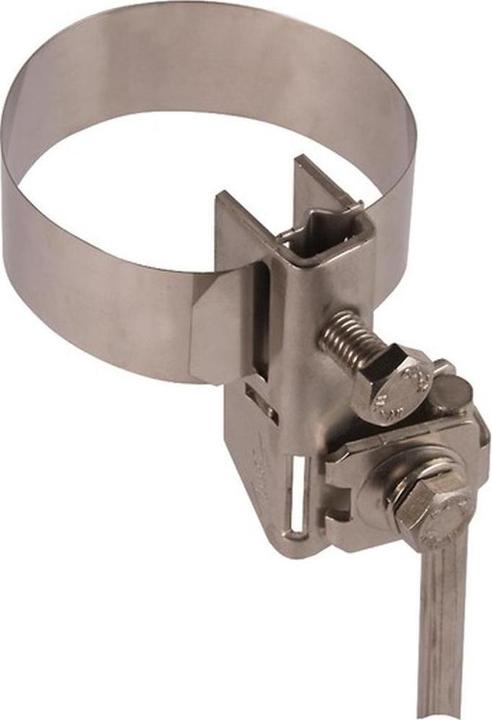

8. Dehn Antenna Tape Tube Clamp 540100
DEHN Antenna Band Pipe Clamp BRS16168AK1X102X68V2
Manufacturer: DEHN
Description: Antenna band pipe clamp D 27-165 mm stainless steel
Type: BRS16168AK1X102X68V2
Clamping/holding range: 16..168 mm
Min. clamping/holding range in inches: 3/8 inch
Max. clamping/holding range in inches: 6 inches
Diameter of the cable holder: 6..8 mm
Material: Stainless steel 304 (V2A)
Surface protection: untreated
Bimetal connector: no
Explosion-proof: no
Further details: Antenna band pipe clamp according to DIN EN 62561-1, for integrating pipes into the protective and functional potential equalization according to DIN VDE 0100-410/540 and the lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3). Complete design with continuously adjustable band made of stainless steel, for connecting 1 conductor Rd D10 mm or 1-2 conductors Rd D6-8 mm or 4-50 mm² (single/multi-stranded).
EAN: 4013364094109.

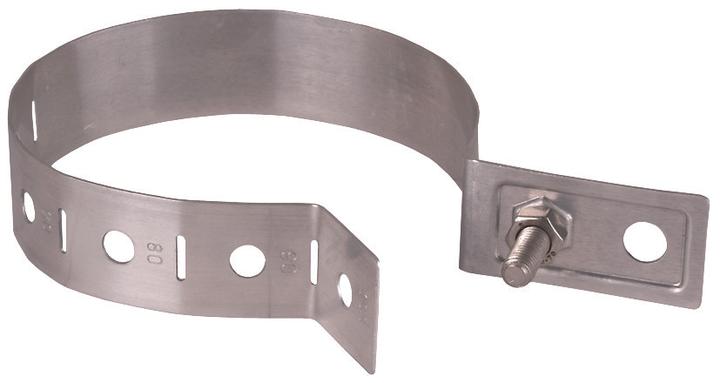

9. Dehn Rain pipe clamp 60-100mm aluminium w. 423011
Dehn rainwater pipe clamp RRSV60100B105AL
Manufacturer: Dehn
Designation: Rainwater pipe clamp 60-100mm
Type: RRSV60100B105AL
Clamping/tensioning range: 60-100 mm
Material: Aluminium
Surface protection: Untreated
Two-metal connector: No
Connection hole: 10.5 mm
Dehn downpipe clamp RRSV60100B105AL: Further details
Pipe clamp according to DIN EN 62561-1, for connecting downpipes to lightning equipotential bonding according to DIN EN 62305-3. Connection options D11 mm for round conductors, e.g. with KS connector or with clamping block. Version type RV adjustable for various conduit diameters, with additional anti-twist protection for the M8 fastening screw and markings, predetermined bending points and punched-in cutting aids.
EAN: 4013364054332.
10. Dehn Roof conductor holder DEHNQUICK St/tZn f. 202080
DEHN Roof Conductor Holder DLHDQ610H55L410WSSTT
Manufacturer: DEHN
Description: Roof Conductor Holder DEHNquick St/tZn
Type: DLHDQ610H55L410WSSTT
Mounting Type for Conductor: with screw clamp
Conductor Diameter: 6-10 mm
Application: Sloped roof surface
Installation Type: Hook-in
Material of Holder: Steel
Material of Support: Steel
Length of Support: 410 mm
Roof conductor holder with angled strut for securing catch and down conductors on roof surfaces. Designed for hooking into roof tiles or battens, featuring DEHNquick conductor holder and fixed conductor routing either longitudinally or transversely.
