Best NZR products in the Energy monitors category
On this page you'll find a ranking of the best NZR products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. NZR 63021206
The NZR T3M 1(6)A 3x230/400V DS meter is an electronic three-phase meter designed for transformer connections in 4-wire networks. It complies with MID requirements and offers a variety of features that make it a reliable choice for energy monitoring. With a D0 output and the ability to control tariffs via the MSB data interface, this meter is particularly flexible. It is tamper-proof and resistant to electromagnetic interference and overvoltage, enhancing its durability and reliability. The functionality meets the FNN specifications EDL V1.2 and allows for an upgrade to a smart metering system. The meter stores historical energy values for a period of two years and provides user-friendly operation via an optical call button with pin protection.
- MID compliant and suitable for meter cross-mounting
- Robust measurement principle with low self-heating
- Bidirectional optical MSB interface for data transmission
- Stores historical energy values for up to two years
- Tamper-proof and resistant to electromagnetic interference.
2. NZR Three-phase meter reg DS10(60)A-GEE ** 3x230/400V 10(60)A calibrated 1002021
The NZR three-phase meter reg DS10(60)A-GEE is a mechanical electricity meter designed for direct connection. It is suitable for use in 4-wire networks and offers single-rate billing. The meter is calibrated and meets accuracy class 2 according to IEC 1036, making it a reliable choice for energy billing. Equipped with a mechanical roller counter, it allows for precise measurement of active energy. The meter is designed for voltages of 3x230/400V and currents of up to 60A. It is approved for mounting on meter panels according to DIN 43857 and has PTB approval. The operating temperature range is from -10 to +45 °C, making it suitable for various environments. The meter has a protection rating of IP 51, which protects it from dust and splashes. It is approved for billing purposes for up to 16 years after the calibration year.
- Calibrated and suitable for single-rate billing
- Accuracy class 2 according to IEC 1036
- Mechanical roller counter for precise measurements
- PTB approved and authorised for 16 years after calibration year
- Protection rating IP 51 for additional protection against environmental influences.
Energy monitors
EUR67,06
NZR Three-phase meter reg DS10(60)A-GEE ** 3x230/400V 10(60)A calibrated 1002021
3. NZR DS Top-hat rail meter

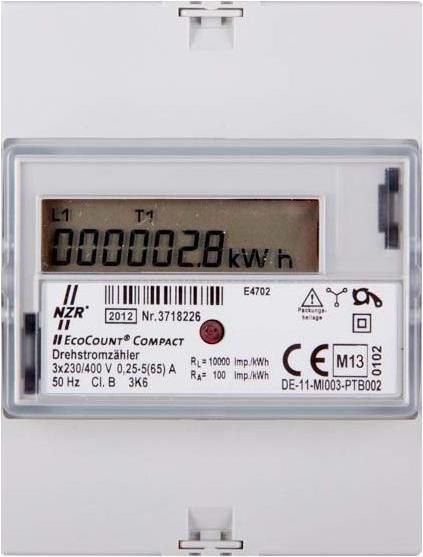

The EcoCount Compact is a meter for measuring three-phase active energy. Its compact design allows for space-saving installation (only 4 TE wide). The meter features a 7-digit LCD display. Energy consumption values can be output via a pulse output. It is suitable for industrial applications and billing purposes, for 4-wire networks, accuracy class B, with a rolling 7-digit LCD display, a tariff register, pulse output, and instantaneous value measurement of power P (per phase and total), voltage (U), and current (I) (per phase). Installation is done on DIN rails according to IEC 60715. The meter has an EC type examination certificate according to Directive 2004/22/EC (MID = Measuring Instrument Directive).
Technical data:
- Voltage: 3x230/400V
- Current: 0.25-5(65)A
- Frequency: 50 Hz
- Counter: 6.1 (LCD 7-digit)
- Accuracy class B (according to EN 50470-1,-3)
- Power consumption (Pe) < 0.55 VA (< 0.4 W) per phase
- Power consumption (le) < 0.01 VA per phase
- Pulse output: 1x S0 (max. 27 V DC, 27 mA passive)
- Pulse length: 100 ms
- Temperature range (Tb) (operating): -25°C to +55°C
- Temperature range (TB) (storage): -40°C to +70°C
- Humidity: max. 95%, non-condensing (according to IEC 62052-11, EN 50470-1, and IEC 60068-2-30)
- Protection class II
- Degree of protection for housing and connections: IP20
- Weight: approx. 0.35 kg
- Dimensions (W x H x D) (4 TE): 72 x 90 x 61 mm
- Type: EcoCount Compact, 1 tariff, 0.25-5(65) A, MID compliant.
4. NZR 43420405
EcoCount SL 51 three-phase meter, 1-56 A, transformer meter, M-BUS, MID compliant. The EcoCount SL meter in transformer version is a fully electronic electricity meter designed for fixed installation in three-phase four-wire networks or single-phase two-wire networks, intended to measure electrical active energy and register it in up to two energy tariffs. It is an indoor meter as a built-in device for mounting on DIN rails in a compact design of only a few modular units. The meter features a backlit display, menu navigation via two control buttons, and displays active, reactive, and apparent power, power factor, voltage, network frequency, and current totals and per phase. Alarm functionality with parameterizable thresholds, tariff switching, reading, resettable meter register, phase failure detection, rotation field detection, reverse flow prevention, bidirectional meter, conformity assessment according to MID, and display capacity that dynamically adjusts to consumption. Initially, it shows 5.3 digits for whole and decimal places. As consumption increases, the decimal point shifts up to a display of 8.0, adjustable modular units, transformer ratio, M-BUS and S0 pulse output, future-proof with expansion interface and additional functions via modules.
5. NZR SEM 16+ Energy Monitor

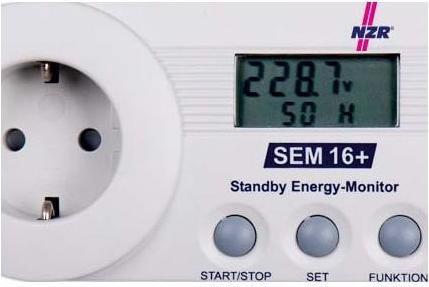

The NZR Standby Energy Monitor SEM 16+ is an electronic power meter specifically designed to monitor the energy consumption of individual electrical devices in households. With a maximum current of 16 amps and a nominal voltage of 230 volts, this device allows for precise measurement of electricity costs. The SEM 16+ is easy to use: after plugging in the device to be measured, it automatically begins a 24-hour measurement. Upon completion of the measurement, the results, including energy consumption and energy costs, are displayed on the digital screen. The measurement duration can be flexibly set to 1, 7, or 30 days, and the option to manually start and stop the measurement provides additional control. The monitor is designed as a plug-in device and has an IP20 protection rating, making it suitable for indoor use.
- Automatic 24-hour measurement of energy consumption
- Adjustable measurement duration of 1, 7, or 30 days
- Digital display of energy costs and consumption
- Easy handling due to plug-in design
- Suitable for use in households with a maximum power of 3680 watts.
6. NZR 43420418

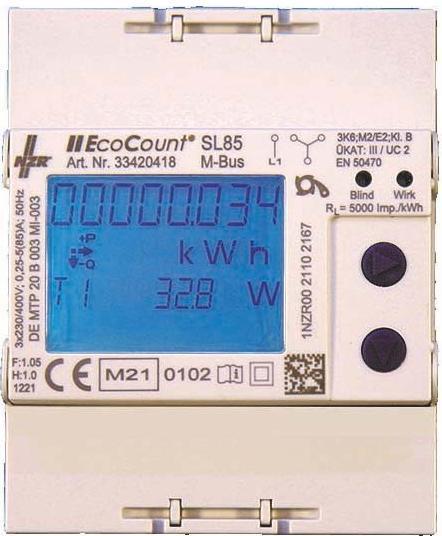

Three-phase meter EcoCount SL 85A, M-BUS, 0.25-585A, MID conformity assessed for delivery and consumption. The EcoCount SL meter in direct measurement design is a fully electronic electricity meter for permanent installation in three-phase four-wire networks or single-phase two-wire networks, intended to measure active electrical energy and register it in up to two energy tariffs. It is an indoor meter designed as a built-in device for mounting on DIN rails in a compact design of only one modular unit. The meter features a backlit display, menu navigation via two control buttons, and displays active, reactive, and apparent power, power factor, voltage, network frequency, and current for both total and per phase. Alarm functionality with parameterizable thresholds, tariff switching, reading, resettable meter register, phase failure detection, rotation field detection, reverse flow prevention, bidirectional meter, delivery and consumption, conformity assessment according to MID. The display capacity dynamically adjusts to consumption. Initially, it shows 5.3 for whole and decimal places. As consumption increases, the decimal point shifts up to the representation of 8.0, modular units, M-BUS, and S0 pulse output, future-proof with expansion interface and additional functions via EcoCount SL 85 MID M-Bus modules.
7. NZR Alternating current meter

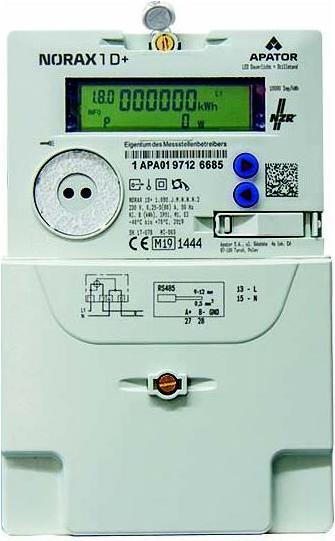

NZR Alternating current meter NORAX 1D+ Manufacturer: NZR Name: Alternating current meter mME WS max.60A Type: NORAX 1D+ Meter type: electronic Rated current (In): 5 A Maximum current (Imax): 60 A Frequency: 50 Hz Accuracy class: B Pole type: 1-phase Design: direct measurement Energy type: active power Suitable for: Purchase/delivery Tariff type: dual tariff Pulse rate: 10000 Imp/kWh (kvarh) Display type: digital Mounting type: surface-mounted Interface type: other Protection class (IP): IP51NZR Alternating current meter NORAX 1D+: more detailsMID, delivery and purchase, DT , EAN: 4048652103751.
8. NZR Communication module

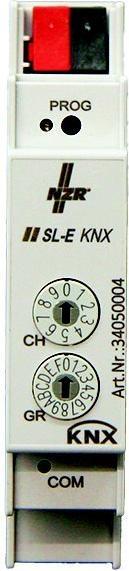

The KNX bus is widely used in the control of home and building system technology. The SL-E KNX expansion module is used to connect the EcoCount SL energy meter to the KNX bus. The IR (infrared) interface located on the left side of the SL-E expansion module is intended for connecting the EcoCount SL generation electricity meters. All values available on the measuring device can be transmitted via the KNX bus. Power is supplied directly through the KNX bus, so only the bus cable (a standardized cable) needs to be connected. The interface features an ETS user program that allows for function configuration. For quick installation, the module can also be integrated without the ETS and is KNX quick capable. If needed, the device can also be operated with KNX SECURE. With the product database EcoCount SL-E_KNX.knxprod, it is possible to configure the EcoCount SL-E KNX expansion module.
9. NZR 23030627
The NZR electricity meter 23030627 is an electronic measuring device designed for the precise recording of energy consumption in three-phase networks. With a nominal voltage of 230/400 V and a maximum current of 60 A, this meter is suitable for both energy consumption and delivery. It features a digital display and allows measurement in two tariffs, making it particularly flexible for different billing models. The meter is intended for installation in switch panels and complies with the Measuring Instruments Directive (MID), underscoring its accuracy and reliability. The four-wire design and optical pulse output provide additional functionalities necessary for modern energy monitoring systems. Thus, the NZR electricity meter 23030627 is an appropriate choice for households and commercial applications that require precise and efficient energy monitoring.
- Calibrated and MID-compliant for reliable measurements
- Two-tariff design for flexible billing
- Optical pulse output for external data transmission
- Direct measurement for all three phases
- Digital display for easy readability.
10. NZR 23030727
The NZR 23030727 is a modern electronic household energy meter designed for the precise measurement of active energy in 4-wire network systems. With a maximum current of 60 Amperes and a rated voltage of 230 Volts, this meter provides a reliable solution for energy monitoring. The integrated D0 interface allows for easy and continuous data reading, while the two-line LCD display ensures user-friendly interaction. The meter supports two tariffs and is classified according to accuracy class B as per DIN EN 50470-1, -3, guaranteeing high measurement accuracy. Additionally, the NZR 23030727 is robust against magnetic fields and offers a variety of functions for capturing and analyzing energy consumption data over different periods.
- Two tariffs with MID approval for flexible billing
- Optical data interface D0 for continuous data reading
- Resettable energy register via PIN for individual use
- High accuracy according to DIN EN 50470-1, -3
- Operating temperature range from -25 to +55 °C for versatile applications.
