Best selling Fuses from Mersen
On this page you'll find a ranking of the best Mersen products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Mersen Switch-disconnector
Mersen Load Break Switch Neozed 05861.025000
Manufacturer: Mersen
Designation: Load Break Switch Neozed D02 25A/230/400V 1-p
Type: 05861.025000
Number of Poles: 1
Size: D02
Rated Voltage: 230 V
Rated Current: 25 A
The D0-Linocur is a combination of a load break switch and a Neozed fuse element rated at 63 A, equipped with significant safety features and advanced switching and clamping technology. The power output of the Neozed fuse inserts leads to internal heating of the Linocur device. To prevent overheating of the device and unwanted premature tripping of the fuse insert, special design measures have been implemented: generously sized conductors made of solid copper, strong external springing under the foot contact, extensive heat transfer through screw cap contact, large-area contact at the foot contact, and special contacts with functional separation.
Thanks to this design, the Linocur offers one of the lowest values in terms of power loss in the market for D0 fuse units.
EN/IEC 60947-3, DIN VDE 43880, DIN VDE 0660 Part 107, DIN VDE 0638, DIN VDE 0636 Part 3, IEC 60269-3, EAN: 3605340496017.
2. Mersen Fuse link
Mersen Fuse Insert Cylindrical FR14GG69V16
Manufacturer: Mersen
Description: Fuse insert cylindrical 14x51 gG 16A/690V
Type: FR14GG69V16
Design: Ceramic fuse
Size: 14x51 mm
Voltage type: AC
Rated current: 16 A
Rated voltage: 690 V
Operating class: gL/gG (Full-range line protection/Full-range device protection)
Operating frequency: 50 Hz
Tripping characteristic: other
Power loss at rated current: 2.35 W
Mersen aM and gG fuse inserts cover a wide range of different sizes and current ratings for 400, 500, and 690 VAC. They are used for the protection of electrical distribution circuits and industrial systems. A large portion of the current ratings is available in sizes 8x31 and 10x38 optionally with indicator, and in sizes 14x51 and 22x58 optionally with a striker for triggering an auxiliary contact.
All cylindrical fuse inserts consist of a ceramic body and silver-plated contacts. Cylindrical fuse inserts of the gG operating class are used to protect lines, devices, and systems. They reliably disconnect unacceptable overloads and short-circuit currents up to the rated cutoff current. Cylindrical gG fuse inserts also protect electrical devices and systems from the electrodynamic effects of high short-circuit currents. Our technology and manufacturing process ensure highly reliable technical performance.

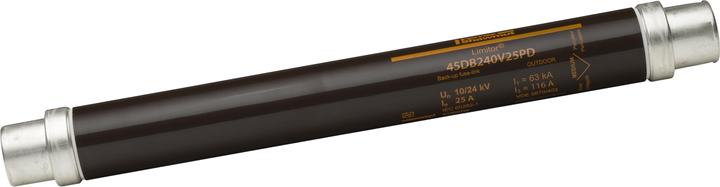

3. Mersen MERS HH sub-area safeguarding operation
Mersen Fuse Insert HH 45DB240V25PD
Manufacturer: Mersen
Designation: Fuse Insert HH 10-24kV 25A
Type: 45DB240V25PD
Rated Current: 25 A
Rated Voltage: 24 kV
Voltage Type: AC
Rated Frequency: 50-60 Hz
Breaking Capacity: 63 kA
Operating Class: Other
Application: Other
Length: 442 mm
Diameter: 56 mm
Performance Category according to IEC 60282-1: Partial Range
With Impact Detector: Yes
Standard: IEC
Tripping Characteristic: Other
Installation Technology: Air
Mersen Fuse Insert HH 45DB240V25PD: Additional Details
Mersen HH fuse inserts have been used for decades to provide reliable protection in high-voltage switchgear and installations. The Limitor -PD product range complies with the standards of IEC 60282-1 and VDE 0670 T402 and protects transformers against the effects of short circuits. VDE 0670 T402 defines a fuse range between 6.3 A and 160 A. For additional power classes, please visit the product range of Mersen's Limitor -P fuse inserts. Mersen uses the best materials: the melt conductors are made of pure silver, the contact caps are made of copper with a silver coating, and the fuse body is made of ceramic.

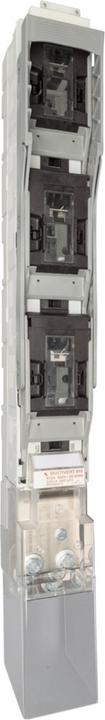

4. Mersen MV6M301K701G
MULTIVERT NH fuse load switch bars fulfill all functions of an NH fuse load disconnect switch. The design is intended for direct mounting on busbars in a three-pole arrangement. MULTIVERT transformer feed bars 630 kVA/910 A can be directly mounted on 185 mm busbar systems. They are designed for NH fuse inserts gTr according to IEC/EN 60269-1, VDE 0636. The system is a modular system in which the various products can be optimally combined. MULTIVERT allows users a quick and easy installation option as well as high safety during installation and maintenance. The design as a symmetrical switch bar with cable exit either at the top or bottom can be directly mounted using claw terminals and is switchable in a 1x3-pole configuration. All MULTIVERT units can be locked or sealed in a closed state with a padlock. This version is supplied with a multi-connection M12 for cable connections of large cross-sections with an installed cable cover. Connection variants: Al/Cu max. 300 mm² rm, sm (2 cable lugs) or Cu max. 150 mm² rm, sm (3 cable lugs) M = 32 to 38 Nm.

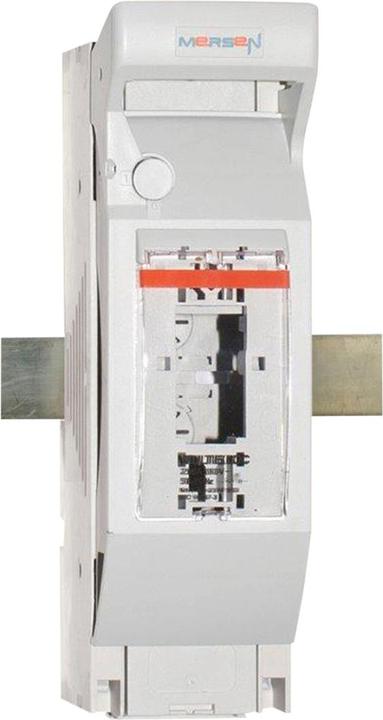

5. Mersen 1.001.818 Fuse switch disconnector NH size 1 250A 1-p.
Mersen Load Break Switch 1.001.818
Manufacturer: Mersen
Designation: Load Break Switch NH Size 1 250A 1-pole
Type: 1.001.818
Configured as Main Switch: no
Configured as Safety Switch: no
Max. Rated Operating Voltage Ue for AC: 690 V
Rated Continuous Current Iu: 250 A
Conditional Rated Short-Circuit Current Iq: 80 kA
Suitable for Fuse Inserts: NH1
Number of Poles: 1
With Fuse Monitoring: no
Connection Type Main Circuit: Rail Connection
Cable Entry: Other
Equipped with Connectors: no
Suitable for Floor Mounting: no
Suitable for Front Mounting: no
Suitable for Busbar Assembly: yes
Design of Actuating Element: Cover Handle
Position of Actuating Element: Front
Motor Drive Optional: no
Motor Drive Integrated: no
Configured as EMERGENCY STOP Device: no
Protection Class (IP), Front Side: IP20
Further Details: The MULTIBLOC 1.ST8 product range includes NH fuse load break switches for 250 A. The products are available in various configurations and in 1-, 2-, 3-, and 4-pole versions. MULTIBLOC NH fuse load break switches of different sizes can be aligned with suitable covers, allowing for a common, flat central cover. MULTIBLOC Size 1 is designed for NH fuse inserts according to IEC/EN 60269-2, VDE 0636-2, Size 1, 250A. The system is a modular system where different products can be optimally combined. MULTIBLOC allows users quick and easy installation options while ensuring high safety during installation and maintenance. It is suitable for use in service connection boxes, meter distribution boards, measuring transformer cabinets, and telecom transmission stations. This NH fuse load break switch is mounted directly onto the busbar using an M10 screw.

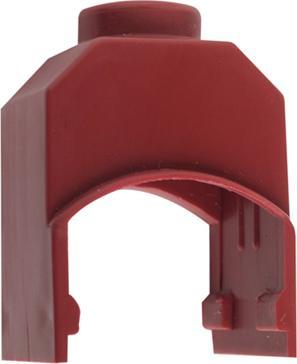

6. Mersen Insulating cap

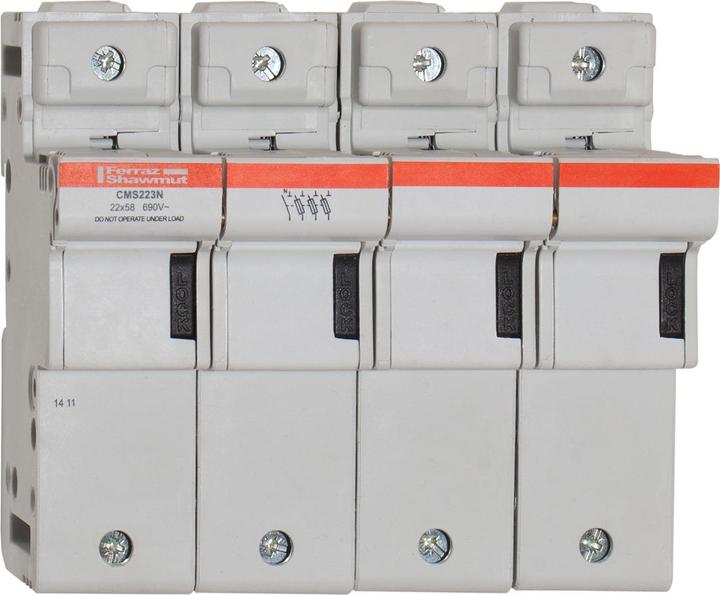

7. Mersen CMS223N
Mersen Fuse Holder CMS223N
Manufacturer: Mersen
Designation: Fuse holder 22x58 125A 3+N-p
Type: CMS223N
Rated Voltage: 690 V
Mounting Type: DIN rail
For Fuse Size: 22x58 mm
Number of Poles: 3
Switching Neutral: Yes
Lockable: No
With Visual Defect Indicator: No
Mersen Fuse Holder CMS223N: Further Details
The Mersen product range includes an extensive range of innovative Modulostar fuse holders. The modular fuse holders are finger-safe according to IEC and comply with protection class IP20 even during fuse replacement. Modulostar fuse holders are available in 1, 2, 3, or 4 pole versions. Mersen offers variants with or without optical fuse monitoring, in UL and IEC versions. With a mounting set, single-pole units can be combined into multi-pole units. In sizes 14 or 22, microswitches for remote indication can be used as an option. These are supplied with the fuse holder or can be retrofitted as accessories. Modulostar products offer optimum mechanical and thermal resistance.
EAN: 8430399000428.

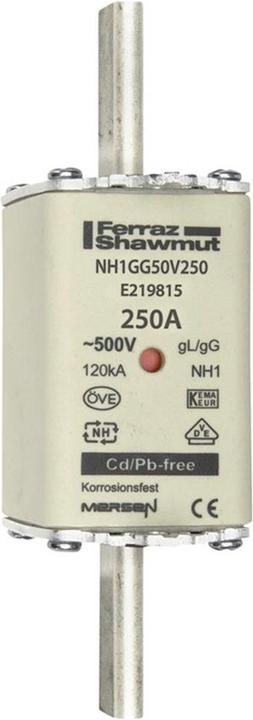

8. Mersen NHSicherung Fuse size
The NH-DIN fuse from Mersen is a reliable component for cable and line protection in general applications. With a rated current of 250 Amperes and a rated voltage of 500 Volts, this fuse is designed for use in alternating current systems. It provides comprehensive protection and contributes to the safety of electrical installations. The fuse is available as a single unit and is suitable for various applications where effective overcurrent protection is required. Its robust construction and specific technical characteristics make the Mersen NH-DIN fuse an important component in electrical infrastructure. This fuse not only ensures safety but also the longevity of the electrical systems in which it is used.
9. Mersen NH cut-off knives
Mersen NH Disconnect Switch SF NH3NEUTRAL
Manufacturer: Mersen
Designation: NH Disconnect Switch SF Size 3 630A VDE 0636
Type: NH3NEUTRAL
Rated Current: 630 A
Power Loss at Rated Current: 9.1 W
Size: NH3
The NH disconnect switch is manufactured in standard design. The current-carrying parts are made of silver-plated copper. The NH disconnect switch can be used in NH fuse load disconnectors, NH fuse load disconnect switchgear, NH fuse bases, and NH fuse rails as a substitute for NH fuse inserts for switching and isolating purposes.
10. Mersen Cylindersikring gl/gl 1A 10X38
Mersen Cylindrical Fuse Insert FR10GG50V1
Manufacturer: Mersen
Designation: Cylindrical Fuse Insert gG 10x38 1A
Type: FR10GG50V1
Execution: Ceramic Fuse
Size: 10x38 mm
Voltage Type: AC
Rated Current: 1 A
Rated Voltage: 500 V
Operating Class: gL/gG (Full-Range Line Protection/Full-Range Equipment Protection)
Operating Frequency: 50 Hz
Tripping Characteristic: Other
Power Loss at Rated Current: 0.45 W
Mersen Cylindrical Fuse Insert FR10GG50V1: Additional Details
Mersen aM and gG fuse inserts cover a wide range of sizes and current ratings for 400, 500, and 690 VAC. They are used for the protection of electrical distribution circuits and industrial systems. A large portion of the current ratings is available in sizes 8x31 and 10x38 optionally with a signaling device, and in sizes 14x51 and 22x58 optionally with a striker pin for triggering an auxiliary contact. All cylindrical fuse inserts consist of a ceramic body and silver-plated contacts. Cylindrical fuse inserts of the gG operating class are used to protect lines, devices, and systems. They safely disconnect excessive overloads and short-circuit currents up to the rated cutoff current. gG cylindrical fuse inserts also protect electrical devices and systems from the electrodynamic effects of high short-circuit currents. Our technology and manufacturing process ensure highly reliable technical performance.
