Best 3M products in the Heat shrink tubing category
On this page you'll find a ranking of the best 3M products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. 3M TE100042031 Heat shrink tubing (TE100042031)
3M Germany Heat Shrink Tubing Roll HSR 3000 1.5/0.5 mm, black.
Manufacturer: 3M Germany
Description: Heat shrink tubing roll 1.5/0.5 mm, black, thin-walled
Type: HSR 3000 1.5/0.5 black
Design: thin-walled
Shrink ratio: 3:1
Inner diameter before shrinkage: 1.5 mm
Inner diameter after shrinkage: 0.5 mm
Wall thickness after shrinkage: 0.45 mm
Length: 12 m
Operating temperature: 135 °C
Color: black
Transparent: no
Material: Polyolefin (PO-X)
Halogen-free: yes
With internal adhesive: no
UL approval: no
3M heat shrink tubing HSR-3000 is color-coded for quick and easy identification of wires. This split-resistant, halogen-free tubing is used as a shrinkable electrical insulation over cable splices or terminations. The tubing, with a shrink ratio of 3:1, is mechanically tough, easily markable, and resistant to cold flow. It is ideal as a lightweight protective covering for cable harnesses, for marking and bundling wires, and for packaging components. It is temperature resistant from -55 to 135 °C and complies with RoHS 2011/65/EU.
2. 3M Heat shrink tubing roll 24/8 mm blue duennw. HS
Heat shrink tubing HSR-3000 is a series of flexible, thin-walled RoHS-compliant shrink tubes made from cross-linked halogen-free polyolefin. HSR 3000 provides good insulation protection in various industrial applications. They are also suitable for cable marking and identification applications. HSR 3000 tubes have a shrink ratio of 3:1 and are available in the following colors: transparent, black, red, yellow, blue, white, green, gray, and green-yellow striped. HSR-3000 heat shrink tubes are color-coded for quick and easy identification of wires. This gap-resistant, halogen-free tubing is used as a shrinkable electrical insulation over cable splices or terminations. The tubes, with a 3:1 expansion ratio, are mechanically tough, easily markable, and resistant to cold flow. They are ideal as lightweight protective coverings for wire harnesses, for marking and bundling wires, and for packaging components. They are temperature resistant from -55 to 135 °C and comply with RoHS 2011/65/EU.
3. 3M TE100037601 Heat shrink tubing (TE100037601)
3M Deutschland Heat Shrink Tubing MDT-A 38/12-B
Manufacturer: 3M Deutschland
Description: Heat shrink tubing 38/12 mm, black, with adhesive
Type: MDT-A 38/12-B
Design: medium wall
Shrink ratio: 3:1
Inner diameter before shrinking: 38 mm
Inner diameter after shrinking: 12 mm
Wall thickness after shrinking: 3.3 mm
Length: 1 m
Operating temperature: 130 °C
Color: black
Transparent: no
Material: Polyolefins (PO-X)
Halogen-free: yes
With internal adhesive: yes
Printable: no
UL approval: no
MDT-A heat shrink tubes are a medium wall shrink tubing series with hot melt adhesive, designed for reliable performance in electrical splicing, connections, and terminations up to 1.0 kV, as well as for mechanical and environmental protection. MDT-A shrink tubes feature a halogen-free, cross-linked polyolefin outer wall and a factory-applied adhesive layer on the inside.
The MDT-A heat shrink tubing is a halogen-free, medium wall heat shrink tubing made from cross-linked polyolefin with a hot melt adhesive coating. The hot melt adhesive penetrates all irregularities and cavities, preventing moisture ingress.
The MDT-A heat shrink tubing is suitable for insulating plastic and mass cables up to 0.6/1 kV for both outdoor and underground installations. The aging-resistant heat shrink tubing is UV-resistant and resistant to many chemical influences. It can be used in a temperature range of -55 °C to +130 °C.
With its high shrink ratio of 4.5 to 1, you can accommodate large diameter jumps with just one tube. The MDT-A heat shrink tubing meets technical requirements according to IEC 60684 and is approved by Lloyds Register of Shipping, certificate 95/30032(E5). It is halogen-free and RoHS compliant.
EAN: 8712403518908.
4. 3M Heat-shrinkable connector 3x1.5-4x6qmmPr.verb. 9 (TE100053848)
The 3M 91-AH is a heat-shrink connection kit for crimp connectors designed for low voltages. It is suitable for 4- or 5-core, unshielded, and non-armored insulated low-voltage plastic cables with a voltage rating of up to 0.6/1 kV. The shrink ratio is up to 4.5:1, the minimum shrink temperature is 135 °C, and the operating temperature range is from -55 °C to 130 °C. The 91-AH 20-5N is RoHS compliant, halogen-free, and provides excellent waterproof moisture sealing as well as protection against mechanical impacts. It features outstanding electrical insulation and good resistance to UV radiation, alkaline earth metals, and chemicals. Applications include electrical insulation and mechanical protection of crimp connectors. The 91-AH is suitable for use indoors and outdoors in underground and underwater installations. The 91-AH is available in black and in sizes designed for a cable cross-section range of 5 x 1.5 to 5 x 6 mm². Standard packaging is as a kit. Approvals: Type tested according to DIN EN 50393, Table 3.

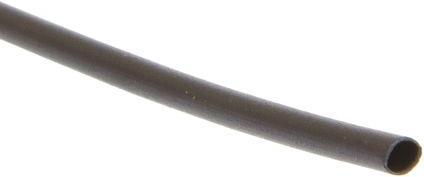

5. 3M HEATSHRINK 2,4MM
Hose diameter: 2.4 mm
Shrink diameter: 1.2 mm
Color: Black
Sleeve type: Heat shrinkable
Shrink ratio: 2:1
Tube length: 11 m
Material: Polyolefin
Flame retardant: Yes
Series: HSR
Heat shrinkable tubing in dispenser box. Thin wall heat shrink tubing for insulation. Flexible after assembly as no hot melt adhesive is present.
6. 3M Germany Cable end set spanungsf 35
The 3M Voltage-Resistant Cable End Kit SKE S is suitable for all live four-core plastic cables in the low voltage range as a termination. It consists of four inner caps and one outer cap, with the outer cap marked by a wear-resistant voltage symbol. The heat-shrinkable cable end kit is completely waterproof due to the thick hot melt adhesive coating on the caps. It also features high mechanical strength and is resistant to UV rays, ozone, oxygen, and acids. This ensures high electrical operational safety at the cable end and makes it ideal for both outdoor and underground installations.
7. 3M TE100050992. Product colour: Black, Quantity per pack: 4 piece(s), Shrink temperature: 135 °C (TE100
3M Germany Heat Shrink Joint Kit 91-AH 23 N
Manufacturer: 3M Germany
Description: Heat Shrink Joint Kit 4x25-95 mm² L700
Type: 91-AH 23 N
Rated Voltage U0/U (Um): 0.6/1 (1.2) kV
Design: Heat Shrink
For connecting paper-insulated to plastic-insulated cables: no
Number of conductors: 4
Conductor nominal cross-section: 25..95 mm²
Mining approval: no
With concentric shielding: no
Suitable for: others
Halogen-free: yes
Further details:
The 3M 91-AH is a heat shrink joint kit designed for crimp connectors, intended for low voltage applications. It is suitable for 4- or 5-core, unshielded and non-armored insulated low voltage plastic cables with up to 0.6/1 kV (according to HD 603 and IEC 60502-1). It features a shrink ratio of up to 4.5:1, a minimum shrink temperature of 135 °C, and an operating temperature range of -55 °C to 130 °C. The 91-AH 20-5N is RoHS compliant, halogen-free, and provides excellent waterproof moisture sealing as well as protection against mechanical impacts. It offers outstanding electrical insulation and good resistance to UV radiation, alkaline earth metals, and chemicals. Applications include electrical insulation and mechanical protection of crimp connectors. The 91-AH is suitable for use indoors and outdoors in underground and underwater installations. The 91-AH is available in black and in sizes designed for a cable cross-section range of 5 x 1.5 to 5 x 6 mm². Standard packaging as a kit. Approvals: Type tested according to DIN EN 50393, Table 3.
Heat shrink tubing
EUR82,67
3M TE100050992. Product colour: Black, Quantity per pack: 4 piece(s), Shrink temperature: 135 °C (TE100
4 x
8. 3M SKE 30/76. Colour of product: Black, Hose/tube length: 9 cm, Diameter before shrinking: 7.6 cm
The 3M Heat Shrink End Cap SKE is designed to seal cable ends for transport, storage, and installation. It is particularly well-suited for coiled cables. The end cap features a high shrink capacity and a very high shrink ratio. Its high mechanical strength, along with its resistance to UV rays, ozone, oxygen, and acids, ensures long-lasting functionality. Additionally, the end cap is completely waterproof due to its thick hot melt adhesive inner coating.
Main features:
- Waterproof due to thick hot melt adhesive coating
- High mechanical strength
- High shrink capacity
- Especially suitable for coiled cables
- Resistant to UV rays, ozone, oxygen, and acids
- Halogen-free
Specifications:
- Product color: Black
- Tube/pipe length: 9 cm
- Diameter before shrinking: 7.6 cm
- Quantity per pack: 1 piece
- Shrink temperature: 120 °C.
Heat shrink tubing
EUR26,23
3M SKE 30/76. Colour of product: Black, Hose/tube length: 9 cm, Diameter before shrinking: 7.6 cm
1 x
9. 3M Germany heat shrink tubing with.w MDT-A 19,0/6,0mm sw
3M Germany Heat Shrink Tubing MDT-A 19.0/6.0 mm black
Manufacturer: 3M Germany
Designation: Heat Shrink Tubing MDT-A
Type: 19.0/6.0 mm black
Shrink Ratio: 3:1
Inner Diameter Before Shrinkage: 19 mm
Inner Diameter After Shrinkage: 6 mm
Wall Thickness After Shrinkage: 3.2 mm
Length: 1 m
Color: black
Transparent: no
Material: Polyolefins (PO-X)
Halogen-Free: yes
With Internal Adhesive: yes
UL Approval: no
The 3M Heat Shrink Tubing MDT-A is a halogen-free, medium-wall heat shrink tubing made from cross-linked polyolefin with a melt adhesive coating. The melt adhesive penetrates all irregularities and cavities, preventing moisture ingress. The 3M Heat Shrink Tubing MDT-A is suitable for insulating plastic and mass cables up to 0.6/1 kV for both outdoor and underground installations. This aging-resistant heat shrink tubing is UV-resistant and resistant to many chemical influences. It can be used in a temperature range of -55 °C to +130 °C. With its high shrink ratio of 4.5 to 1, you can accommodate large diameter jumps with just one tubing. The 3M Heat Shrink Tubing MDT-A meets technical requirements according to IEC 60684 and is approved by Lloyds Register of Shipping, Certificate 95/30032(E5). It is halogen-free and RoHS compliant. EAN: 8712403598818.

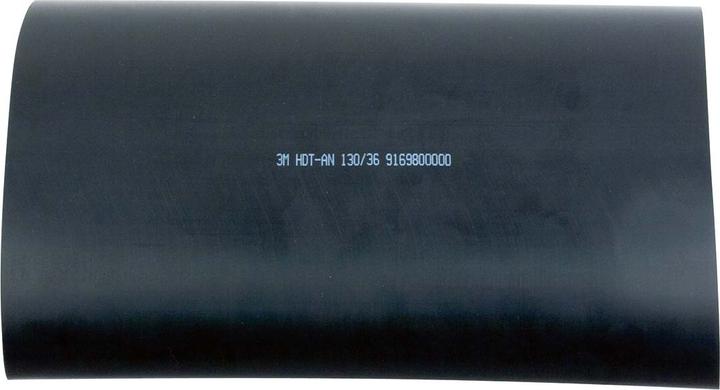

10. 3M Heat shrink tubing thickw HDT-AN-130/36 130/36 mm,sw, w.Kle. Heat shrink tubing 4046719486250
Main features:
Type: Heat-shrink tubing
Product colour: Black
Tube/pipe length: 100 cm
Diameter before shrinking: 3.6 cm
Diameter after shrinking: 13 cm
Shrink temperature: 135 °C.
Heat shrink tubing
EUR119,–
3M Heat shrink tubing thickw HDT-AN-130/36 130/36 mm,sw, w.Kle. Heat shrink tubing 4046719486250
1 x
