Best selling Motion sensors from Hager
On this page you’ll find a ranking of the best Motion sensors from Hager. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

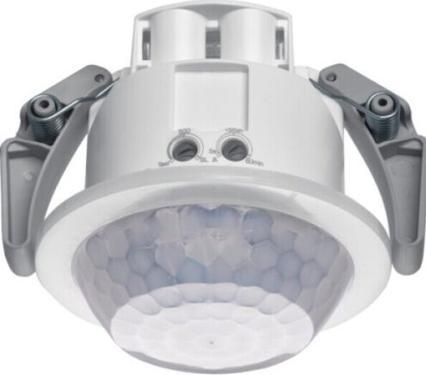

1. Hager 360° FLUSH-MOUNTED PRESENCE DETECTOR (EER501)
The Hager Presence Detector 360° Flush Mount (EER501) is an innovative solution for the automatic control of lighting and other electrical devices indoors. With a comprehensive detection angle of 360 degrees and a range of up to 10 meters, this detector captures movements over a wide area, making it ideal for hallways, offices, and other large spaces. The presence detector is designed for flush mounting, seamlessly integrating into the wall for an aesthetic and discreet solution. The PIR (Passive Infrared) sensor type ensures reliable motion detection, while remote control operation allows for user-friendly handling. With an IP41 protection rating, the detector is suitable for indoor use and offers robust performance.
- 360-degree detection angle for comprehensive motion detection
- Range of up to 10 meters for flexible applications
- Flush mounting for aesthetic integration into walls
- PIR sensor technology for reliable and precise motion detection.
2. Hager Motion detector
Hager Motion detector EED515 Manufacturer :Hager Designation :Motion detector corridor DALI2 360G Type :EED515 Design :Motion detector Sensor type :passive Infrared With DALI interface :yes Constant light control :no HVAC control :no Forced switch-on :no Forced switch-off :no Animal track :no Creep protection/back field monitoring :no Can be networked :yes Scanning angle :360 ° Optimum mounting height :3 m Staircase monitoring :no Max. range to one side :15 m Max. range to the other side :15 m Range to one side :15 m Max. Range frontal :14 m Suitable for wireless transmission :no Remote control :yes With remote control :yes Response sensitivity adjustable :yes Response brightness adjustable :yes With signal unit :no Teach function for response brightness :yes Suitable for wall mounting :no Mounting type :Surface-mounted connection type :plug-in terminal Material :plastic Material quality :thermoplastic Halogen-free :yes Surface protection :untreated Surface finish :glossy Colour :white RAL number (similar) :9010 Protection class (IP) :IP41 Impact resistance :IK04 Voltage type :AC Frequency :50..60 Hz Rated voltage :230 V Min. on-time :2 s Max. off-time :60 min 60 min Switch-off delay :0 s Switch-on delay :0 s Pivoting range of sensor, horizontal :0 ° Pivoting range of sensor, vertical :0 ° Response brightness :5..2000 lx Max. switching capacity :0 W Switching capacity :0 W Max. Switching capacity LED :0 W Suitable for C-load :no Temperature :-5..45 °C Number of switching zones :1 Min. inrush current :0 A Extension input :yes Height :60 mm Depth :0 mm Diameter :105 mm Installation depth :0 mm Installation diameter :0 mm Compatible with Apple HomeKit :no Min. Depth of device socket :0 mm Compatible with Google Assistant :no Compatible with Amazon Alexa :no IFTTT support available :no Hager motion detector EED515: more details Motion detector corridor DALI2 360°, surface mounting, detection 30x5m , EAN: 3250612256204.
3. Hager Presence detector
Hager presence detector TXD501
Manufacturer: Hager
Designation: Presence detector KNX 360G, EB 10m
Type: TXD501
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Radio bidirectional: No
Version: Presence detector
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Surface protection: Untreated
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
With bus coupling: No
Extension input: No
Creep protection/back field monitoring: No
Operating mode switch: No
Animal track: Yes
Staircase monitoring: No
Adjustable response brightness: No
Teach function for response brightness: No
Self-learning switch-off delay: No
DALI-2 certified: No
Optimum mounting height: 2.5 m
Max. range to one side: 5 m
Reach to one side: 5 m
Max. range frontal: 2.5 m
Detection field diameter on floor: 10 m
Detection angle horizontal: 360°
No. of digital inputs: 1
No. of channels: 5
Switching capacity: 0 W
Min. duty cycle: 5 s
Max. switching time: 5 s
Max. duty cycle: 480 min
Min. depth of device box: 0 mm
Hager presence detector TXD501: more details
Presence/motion detector KNX 360°, flush-mounted, detection Ø10m.
4. Hager EE821
Outdoor motion detector 140° IP55, surface mount, anthracite. Outdoor motion detector for lighting control in commercial buildings and residential homes by detecting moving persons. Detection range of 140° and a maximum range of 16 m at a recommended mounting height of 2.5 m. Horizontal lens adjustment of +/- 80° and vertical lens adjustment of 0-30° are possible. Detection is achieved using Fresnel lenses. Limiting the monitoring area is possible with the included masks. The adjustment of the time delay and brightness value is done directly on the device, and a pulse can also be generated. Mounting on ceilings and corners is possible using optional mounting adapters EE826 or EE828.

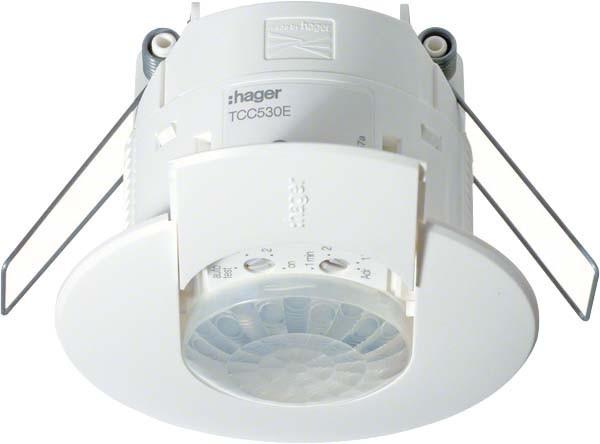

5. Hager TCC530E Presence detector KNX
The Hager TCC530E presence detector KNX is an advanced device designed for the reliable detection of movements indoors. With a detection angle of 360 degrees and a range of up to 7 meters, this presence detector offers comprehensive monitoring, making it ideal for integration into modern smart home systems. The flush-mounted installation style allows for seamless installation in various environments, while the robust housing made of ABS synthetic and polycarbonate ensures durability. The TCC530E is not only functional but also aesthetically pleasing, making it an ideal choice for residential and commercial spaces. Its compatibility with the KNX standard allows for easy integration into existing automation systems, enabling efficient control of lighting and other electrical devices.
- Detection angle of 360 degrees for comprehensive movement detection
- Range of up to 7 meters
- Flush-mounted installation for an elegant setup
- Compatible with KNX smart home systems.

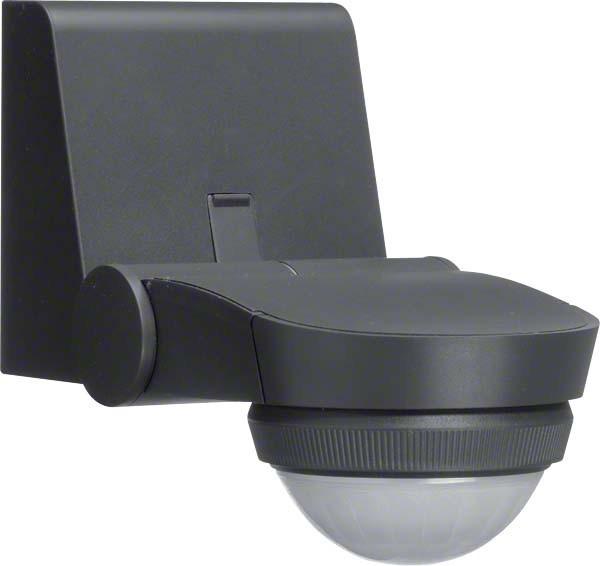

6. Hager EE841
Outdoor motion detector 360° IP55, surface-mounted, anthracite. The outdoor motion detector is designed for lighting control in commercial buildings and residential homes by detecting moving individuals. It has a detection range of 360° with anti-creep protection for local detection and a maximum diameter of 12 m at a recommended mounting height of 2.5 m. A vertical lens adjustment of +90°/-30° is possible. Detection is carried out using Fresnel lenses. The adjustment of the time delay and brightness level can be made directly on the device or via the optional remote control EE 806; a pulse can also be generated. Sensitivity can be adjusted from 20% to 100%. An additional potential-free contact is available. Mounting on walls and ceilings is possible, as well as on corners using the optional mounting adapter EE855.
7. Hager TCC521E Presence detector KNX w.DALI
The Hager TCC521E presence detector is an advanced device designed for ceiling installation, offering an intelligent solution for brightness- and motion-dependent constant light control. With an integrated DALI/DSI output, this presence detector allows for the direct connection of up to 24 DALI/DSI control devices or the control of dimmers via the KNX bus. Basic settings can be conveniently adjusted directly on the device or optionally via a remote control. The brightness range extends from 5 to 1000 Lux, enabling flexible adaptation to varying lighting conditions. The detection range reaches up to 7 meters at a mounting height of 2.5 meters, and the 360-degree detection angle ensures comprehensive coverage of the room. The TCC521E is suitable not only for indoor use but is also compatible with smart home systems, making it a versatile choice for modern buildings.
- Integrated DALI/DSI output for up to 24 control devices
- Adjustable reflection rate for natural and artificial light values
- Functions such as dimming control and timing features
- Easy basic setting without disassembly of the device
- 360° detection angle for comprehensive room coverage.
8. Hager 1 piece Presence detector recessed 360G On/Off EE815 / 342982
Presence detector built-in 360° On/Off. Presence detector with On/Off function for lighting control in commercial buildings and residential homes, by detecting moving individuals. Designed for installation in hollow walls or suspended ceilings with a detection range of 7 meters in diameter at a mounting height of 2.5 meters. Basic settings can be adjusted directly on the already installed device without disassembly or optionally via the remote control EE807. Selection of various operating modes, such as semi-automatic, automatic, learning, day, corridor, office, and test mode. Setting of two modes in case of power interruption as well as active/passive switching to activate or deactivate the light threshold in the respective detection zone. Switching on and off via a button or the optionally available remote control EE808 is also possible.
9. Hager EE861
Outdoor motion detector Comfort 220° IP55 anthracite. The outdoor motion detector is used for lighting control in commercial buildings and residential homes by detecting moving individuals. The detection range is 220° with a maximum range of 16 m at a recommended mounting height of 2.5 m. A horizontal lens adjustment of +/- 80° and a vertical lens adjustment of +90°/-30° are possible. Detection is achieved using Fresnel lenses. The monitoring area can be limited using the included masks. The settings for time delay and brightness level can be adjusted directly on the device or via the optional remote control EE 806. A pulse can also be generated. Sensitivity can be adjusted from 20% to 100%. An additional potential-free contact is available. Installation on walls and ceilings is possible. For corners, installation using the optional mounting adapter EE856 is possible.

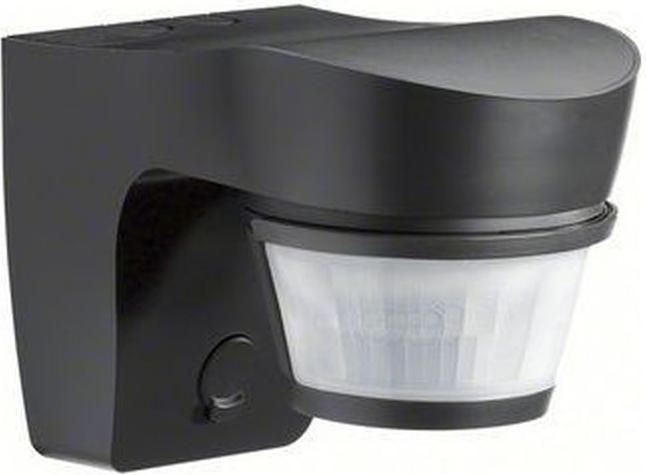

10. Hager EE831 Motion detector 200° anthr.
Outdoor motion detector 200° IP55, anthracite. This outdoor motion detector controls lighting in commercial buildings and residential homes by detecting moving individuals. The detection range is 200° with a maximum range of 16 m at a recommended mounting height of 2.5 m. A horizontal lens adjustment of +/- 80° and a vertical lens adjustment of 0-30° are possible. Detection is achieved using Fresnel lenses. The monitoring area can be limited using the included masks. The settings for time delay and brightness level can be adjusted directly on the device, and a pulse can also be generated. Mounting on ceilings and corners is possible with optional mounting adapters.
