Best selling Sanitary installation accessories from Stiebel Eltron

On this page you'll find a ranking of the best Stiebel Eltron products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

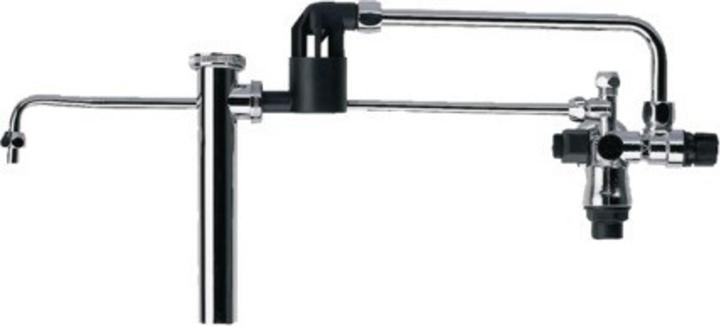

1. Stiebel Eltron KV 30

Stiebel Eltron Safety Group KV 30

Manufacturer: Stiebel Eltron
Designation: Safety Group
Type: KV 30
Nominal Diameter: DN 15
Outer Diameter of All Connections: 20 mm
Connection: External Thread
Max. Boiler Capacity: 75 kW
Design: Without Mixing Valve
Pressure Rating: PN 10
Surface Protection: Galvanized/Electrolytically Zinc Coated
Includes Couplings: No
Includes Crimp Set: No
Includes Siphon: No
Replaceable Check Valve: No
Shut-off Valve: No
Length of Connection 1: 100 mm
Working Length of Connection 1: 100 mm

Application
The safety group is required to ensure the operation of pressure-resistant, closed wall-mounted storage tanks. It prevents exceeding the permissible operating pressure in the hot water storage tank as well as the return of heated drinking water into the piping system. Expansion water is discharged into the drainage line.

Equipment
The delivery scope of the safety group includes: safety valve, shut-off valve, backflow preventer, funnel siphon, rosette, and chrome-plated connection accessories.

Installation
The safety group is installed according to specifications before the hot water storage tank in the cold water supply line. It facilitates maintenance work by allowing the system to be vented via a rotary handle on the safety valve. Additionally, the cold water supply line can be closed for subsequent installations (e.g., hot water storage tank) using a shut-off valve. The individual components are interchangeable.

Safety
The safety group consists of a highly polished, chrome-plated brass housing, is low-lead manufactured, and DVGW certified. The safety valve is component tested. The connection pipes are made of chrome-plated copper. All plastic parts comply with the KTW recommendation.
EAN: 4017212389577.

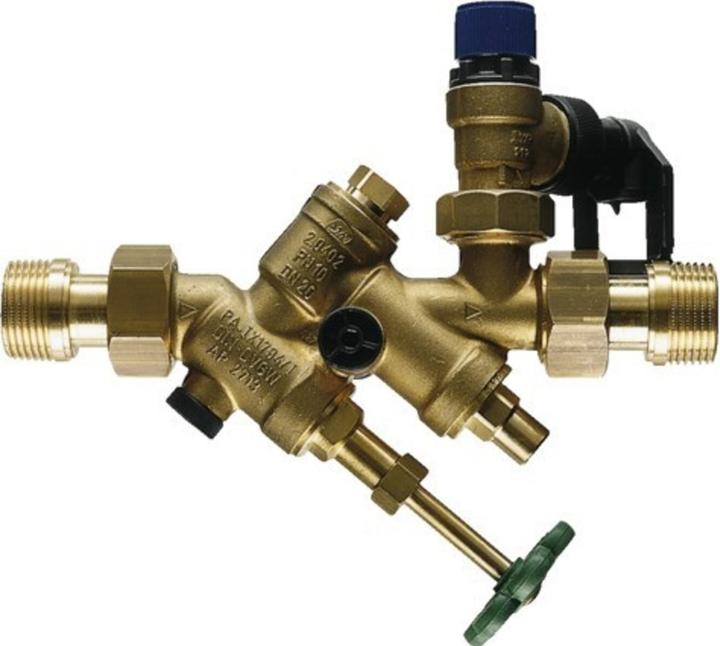

2. Stiebel Eltron Safety group ZH1 for protection against overpressure for closed electric storage tanks up to 1000

Stiebel Eltron Safety Group ZH 1

Manufacturer: Stiebel Eltron
Designation: Safety Group
Type: ZH 1
Housing Material: Brass
Nominal Diameter: DN 15
Outer Diameter of All Connections: 20 mm
Connection: External Thread
Max. Boiler Capacity: 75 kW
Design: Without Mixing Valve
Pressure Rating: PN 10
Surface Protection: Galvanized/Electrolytically Zinc-Coated
Includes Couplings: No
Includes Crimp Set: No
Includes Siphon: No
Shut-off Valve: No
Length of Connection 1: 140 mm
Working Length of Connection 1: 205 mm

The safety group is suitable for use with pressure-resistant electric and integral storage tanks. The scope of delivery includes a shut-off valve, a non-return valve with testing device, a manometer connection, a membrane safety valve, and a discharge funnel. To prevent backflow of discharge water, a pipe break is integrated into the discharge funnel of the safety valve. The safety valve can be adjusted to different installation conditions thanks to its screw connection, as it can be rotated, repositioned, and replaced. The safety group can be installed in both corner and straight configurations in horizontal and vertical pipelines. In vertical pipelines, the safety group must only be installed in the flow direction from bottom to top. A pressure reducing valve can be retrofitted if necessary.
EAN: 4017210743708.

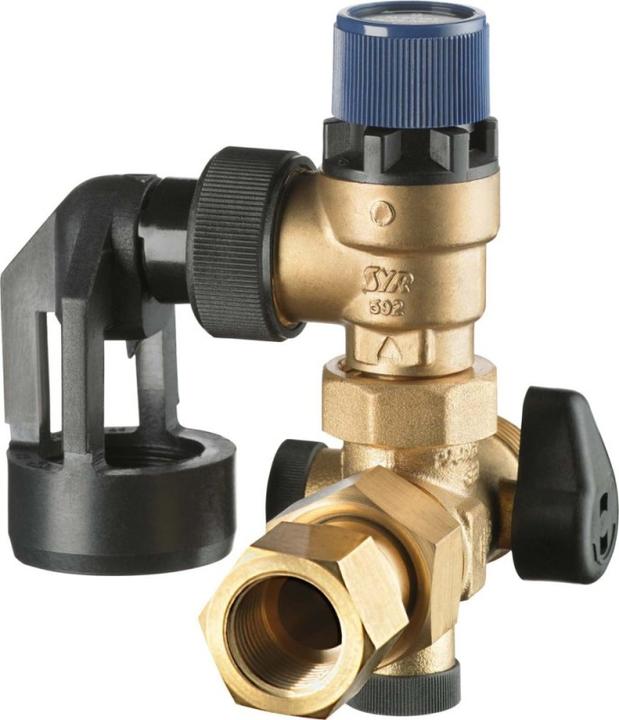

3. Stiebel Eltron Stiebel SRT 2 safety group

Safety group for surface mounting for closed wall-mounted storage tanks and pressurized small storage tanks. It includes a safety valve rated at 0.6 MPa (6 bar). This product is approved for use in Germany, Austria, the Netherlands, and Poland. Model: Stiebel SRT 2 safety group.

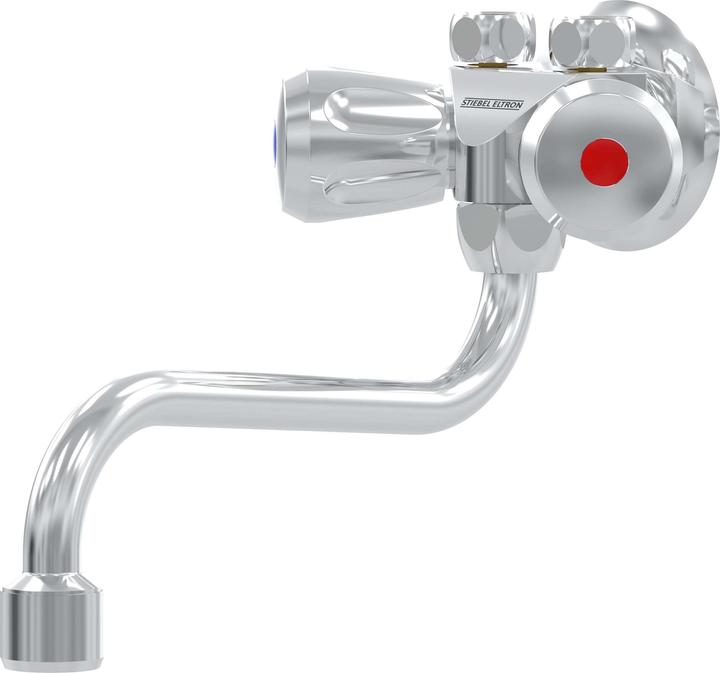

4. Stiebel Eltron MAW two-handle wall fitting, unpressurised, for mini instantaneous water heater

The MAW two-handle wall-mounted faucet from Stiebel Eltron is a non-pressurized fixture specifically designed for installation with mini instantaneous water heaters. This faucet allows for straightforward installation above the hand wash basin and provides an efficient solution without standby energy losses. The simple operation is managed through two rotary handles, with the left handle controlling cold water and the right handle controlling hot water. The swivel spout adds extra flexibility for use. This faucet is ideal for applications in plumbing, especially in areas where a non-pressurized operation is required.

- Easy installation above the hand wash basin
- Non-pressurized operation for mini instantaneous water heaters
- Swivel spout for flexible use
- Robust construction made of stainless steel.

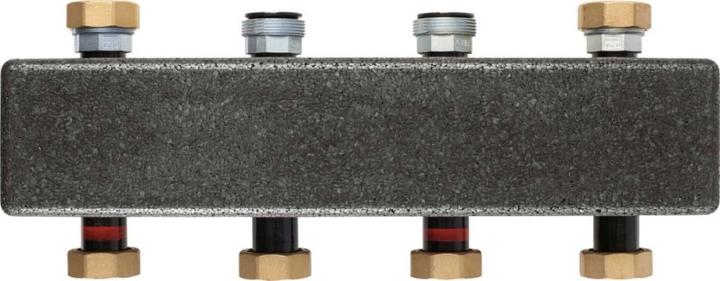

5. Stiebel Eltron Wpki-Hkv

Stiebel WPKI-HKV 2 connection manifold.

6. Stiebel Eltron Pump assembly HSBC-HKM

Stiebel Eltron pump assembly HSBC-HKM

Manufacturer: Stiebel Eltron
Designation: Pump assembly mixed heating circuit
Type: HSBC-HKM
Pipework material: Copper
Primary connection: Other
Nominal diameter primary: Other
External pipe diameter primary: 22 mm
Built-in circulation pump: Yes
With non-return valve: No
With safety valve: No
With thermometer: No
Outlet tap: No
With expansion vessel connection: No
With automatic vent: No
With thermal insulation: Yes

The Stiebel Eltron pump assembly HSBC-HKM is designed to add a mixed heating circuit to the integral storage tank. The assembly consists of the insulated connection pipework, the heating circuit circulation pump, and the 3-way mixing valve with servomotor. It is intended for use inside the integral storage tank at the prepared connections.

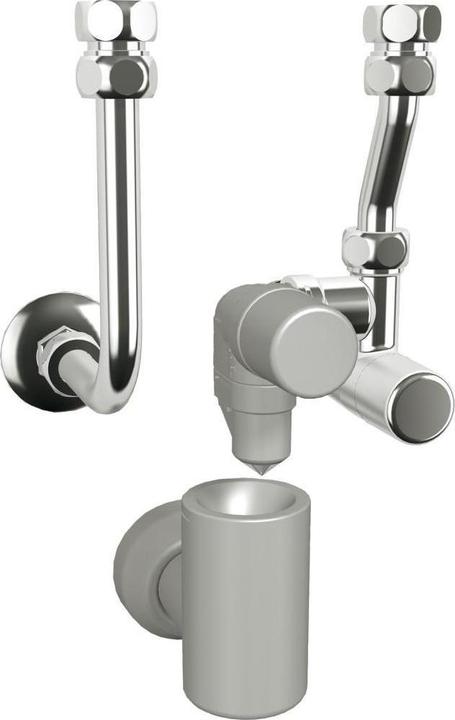

7. Stiebel Eltron SVMT safety group for connecting pressure fittings to small storage tanks

Stiebel Eltron Safety Group SVMT

Manufacturer: Stiebel Eltron
Designation: Safety Group SVMT
Type: SVMT
Housing Material: Other
Nominal Diameter: DN 15
Outer Diameter of All Connections: 20 mm
Connection: External Thread
Max. Boiler Capacity: 75 kW
Design: Without Mixing Valve
Pressure Level Article: PN 10
Surface Protection: Galvanized/Electrolytically Zinc Coated
With Couplings: No
With Crimp Set: No
With Siphon: No
Replaceable Check Valve: No
Shut-off Valve: No

The safety group in a brass housing with a chrome finish is suitable for pressure-resistant, closed under-sink small storage tanks. The delivery includes the pressure limiting device, a flow control valve, and the drainage funnel with a backflow preventer.
EAN: 4017210734997.

8. Stiebel Eltron Stiebel WPKI 5-I compact installation

Stiebel Eltron Compact Installation WPKI 5-I

Manufacturer: Stiebel Eltron
Designation: Compact Installation
Type: WPKI 5-I
Suitable for: Heat Pump
Execution: Connection Kit

The compact installation includes all necessary components for the hydraulic connection of the heating heat pump to buffer storage tanks ranging from 200 to 700 liters. The delivery includes: safety valve, thermo-manometer, shut-off valves, check valve, and the connection option for a membrane expansion vessel, as well as the kit for hot water preparation. The compact installation is only suitable for heating heat pumps without an integrated heating circulation pump.

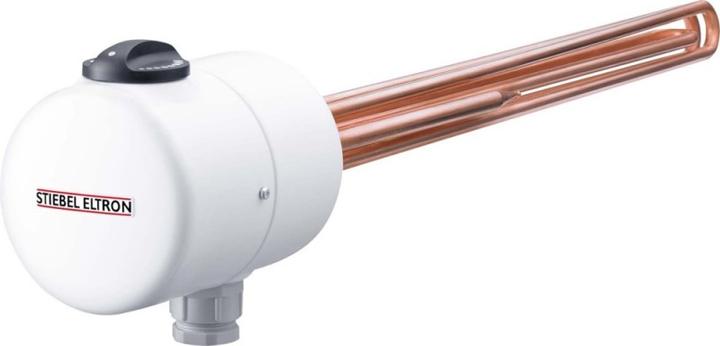

9. Stiebel Eltron BGC/45

Stiebel BGC 6 kW 455 mm ET.

10. Stiebel Eltron K. 307

Stiebel Eltron Safety Group KV 307

Manufacturer: Stiebel Eltron
Designation: Safety group for hot water storage tanks
Type: KV 307
Housing material: Other
Nominal diameter: DN 15
Outer diameter of all connections: 20 mm
Connection: External thread
Max. boiler capacity: 75 kW
Design: Without mixing valve
Pressure rating: PN 10
Surface protection: Galvanically/electrolytically galvanized
Includes couplings: No
Includes crimp set: No
Includes siphon: No
Replaceable check valve: No
Shut-off valve: No
Length of connection 1: 100 mm
Working length of connection 1: 100 mm

Application: The safety group is designed for use with pressure-resistant, closed above-counter small storage tanks.

Equipment: The delivery includes a shut-off valve, a backflow preventer, and a replaceable membrane safety valve. The pressure relief safety valve prevents exceeding the permissible operating pressure of the hot water storage tank. The backflow preventer stops the return flow of heated drinking water into the piping system. The included funnel siphon with rosette and connection accessories ensures that expansion water is drained into the wastewater line.

Installation: The safety group is installed before the hot water storage tank in the cold water supply line (please refer to specifications). To facilitate maintenance, the safety valve can be vented via a rotary handle. Additionally, the cold water supply line for the subsequent installation (e.g., a hot water storage tank) can be shut off using the shut-off valve. The components are interchangeable.

Safety: The safety group consists of a highly polished, chrome-plated brass housing, is low in lead, and is DVGW tested. The safety valve is component tested. The connection pipes are made of chrome-plated copper pipe. The plastic parts comply with the KTW recommendation.
EAN: 4017212389591.
