Best Fischer products in the Vices + Clamps category
On this page you'll find a ranking of the best Fischer products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

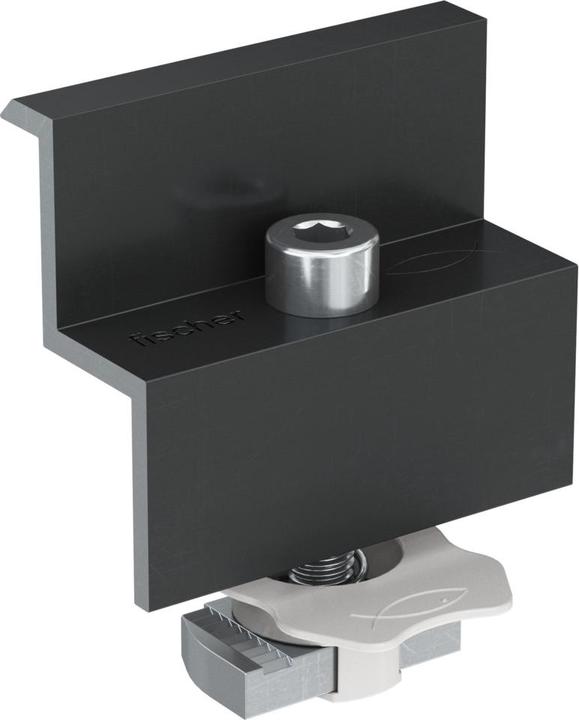

1. Fischer Endklemme vorm. PM F 30 AL sw
PM F is the pre-assembled end clamp for PV modules with aluminum frames. The PM clamp is available in various versions depending on the thickness of the PV panel. PM F features a hammer nut with a special plastic cage to facilitate the positioning of the nut in the central groove of the rail. The spring keeps the clamp raised until it is tightened, making it easier to position the PV panel.
2. Fischer Kft

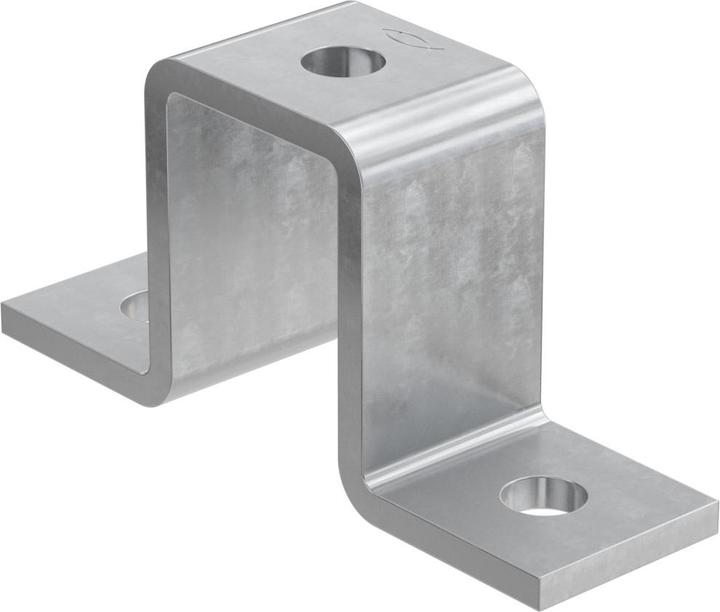

3. Fischer Rail connector 553076 1 pc.
Fischer 553076. material: Zinc steel, product colour: Steel, certification: DIN EN 10025, number of products included: 15 piece(s).

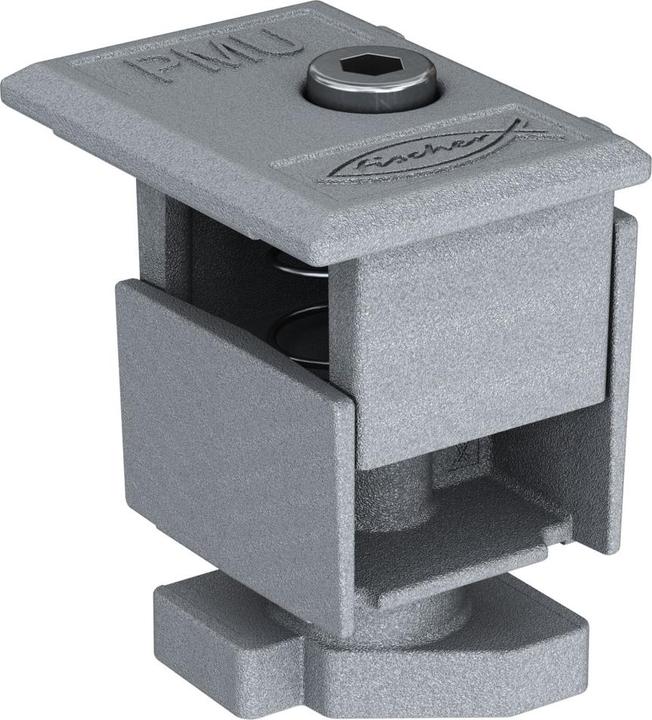

4. Fischer 519784 Single PMU clamp (10 pieces)
PM U is the universal clamp for PV panels with a thickness of 30 to 50 mm, which can be used as both a mid clamp and an end clamp. PM U can be quickly inserted into the profiles by simply rotating it. Compatible with SolarFish H33, SolarFish H44, SolarFish H83, and SolarMetal profiles.

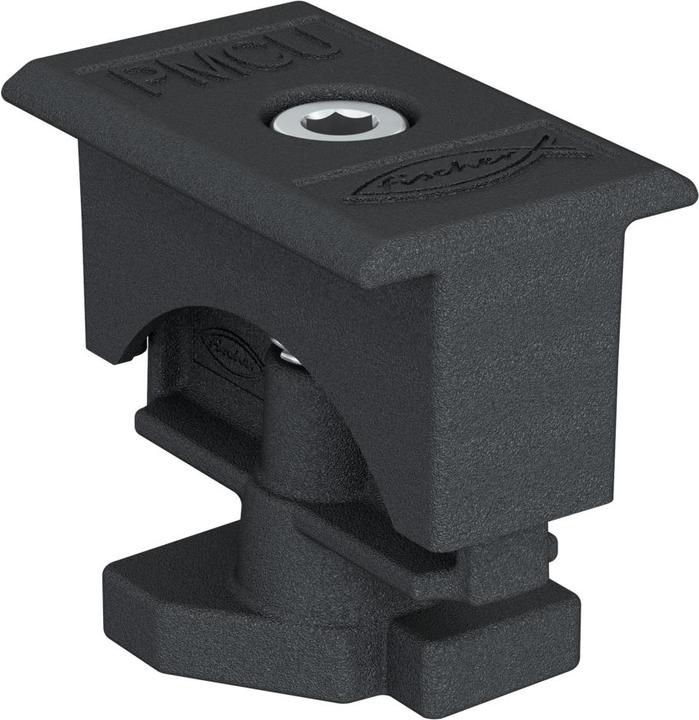

5. Fischer Mittelklemme vorm.Uni.PM C U 30-50 AL sw
PMC U is the universal mid clamp for PV panels with a thickness of 30 to 50 mm. PMC U can be quickly inserted into the rails by simply turning it. Compatible with SolarFish H33, SolarFish H44, SolarFish H83, and SolarMetal rails.

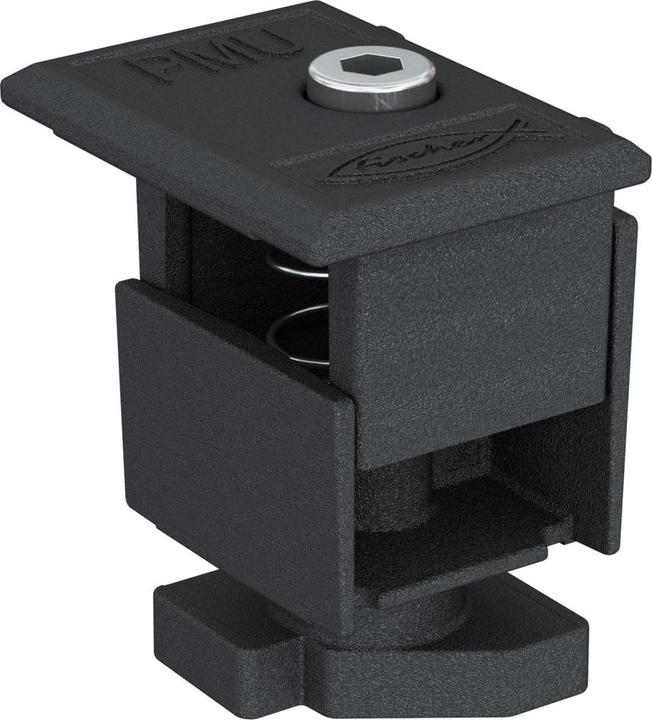

6. Fischer Mittel/Endkl. Uni.vorm. PM U 30-50 AL sw
PM U is the universal clamp for PV panels with a thickness of 30 to 50 mm, which can be used as both a mid clamp and an end clamp. PM U can be quickly inserted into the profiles by simply rotating it. Compatible with SolarFish H33, SolarFish H44, SolarFish H83, and SolarMetal profiles.
7. Fischer 79502

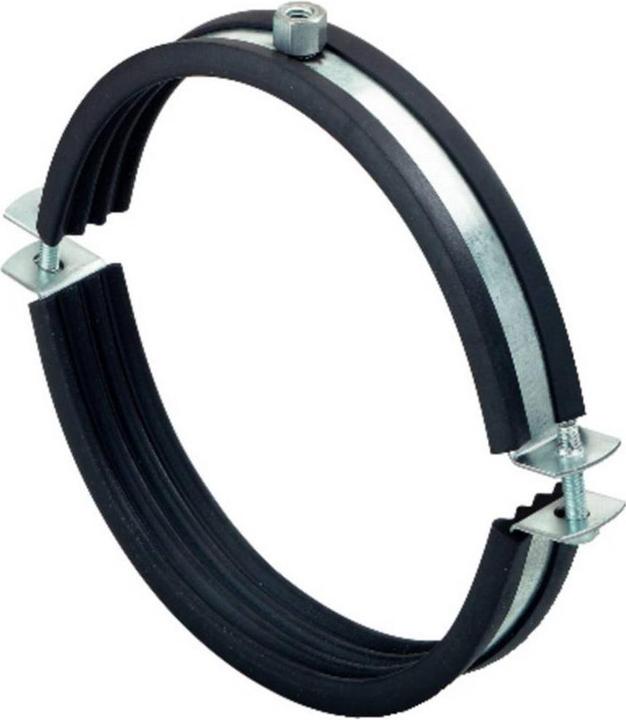

The fischer ventilation duct clamp LGS 250 for 250 mm size, two-part design with glued sound insulation insert for fixing spiral pipes or plastic pipes. The large opening angle of the LGS allows for quick and easy installation. The two screws allow for ideal adaptation to suit the outer pipe diameter. Connecting nut with combination thread M 8 / M 10 for holding threaded rods or hanger bolts. Pipe clamp screws with loss protection.
Advantages
- The large opening angle of the LGS enables a quick and easy installation.
- The LGS's two screws allow the adjustment to suit the outer pipe diameter.
- The locking screw with large recess/cross recess head is secured to not get lost during installation.
- The sound-insulation insert has a form fit and can not fall out during the adjustment of the pipe.
Properties
- Material: steel DC01 (material no. 1.330) acc. to DIN EN 10130
- Zinc plating: electro zinc-plated, 5 - 9 µm
- Connecting nut: resistance welded domed nut, M8 / M10, SW 13
- Locking screw: oval head screw with combination recessed head
- Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
- Sound insulation: for DIN 4109
- Temperature range: -50 °C to +110 °C
- Hardness: 45 ± 5° Shore A
- Fire behaviour: DIN 4102: Class B2.
8. Fischer Endklemme vorm. PM F 35 AL sw
PM F is the pre-assembled end clamp for PV modules with aluminum frames. The PM clamp is available in various versions depending on the thickness of the PV panel. PM F features a hammer nut with a special plastic cage to facilitate the positioning of the nut in the central groove of the rail. The spring keeps the clamp raised until it is tightened, making it easier to position the PV panel.

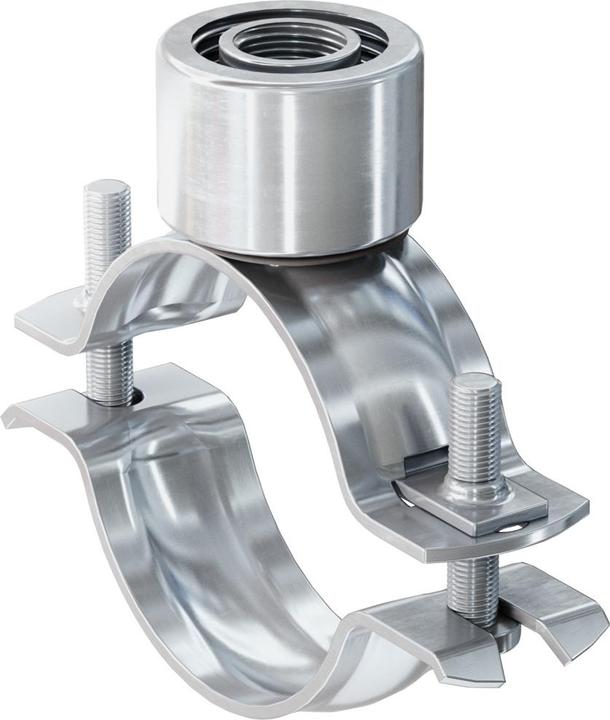

9. Fischer Pipe clamp FRS Triple 115-125
The Fischer FRS Triple pipe clamp is a two-bolt pipe clamp made of galvanized steel with material grade DD11, featuring a triple connection thread M 8/M 10 and ½”. The quick-release mechanism allows for easy and time-saving installation. The design with two screws ensures optimized adaptation to the outer diameter of the pipe. Together with the triple connection thread, this increases flexibility. It allows for secure fastening of pipelines with an outer diameter of 15 - 169 mm using threaded rods or stud bolts in indoor applications. The pipe clamp meets the requirements of DIN 4109 with a sound insulation insert that is free of chlorine and silicone. The Fischer FRS is suitable for applications in a temperature range of -50 °C to +100 °C.
10. Fischer 500725, Pipe clamp, Zinc steel, 10 pc(s)
The Fischer pipe clamp FRSN Triple is a two-screw pipe clamp made of galvanized steel with material grade DD11, featuring a triple connection thread M 8/M 10 and ½“ without sound-damping insert. The quick-release mechanism allows for easy and time-saving installation. The design with two screws ensures optimized adjustment to the outer diameter of the pipe. Together with the triple connection thread, this increases flexibility. This allows for economical and secure fastening of pipes with an outer diameter of 15 - 114 mm using threaded rods or stud bolts in buildings.
