Top-rated products in the Junction box category
Here's a ranking of the top rated products in this category. To give you a quick overview, we've also added some key information about the products.

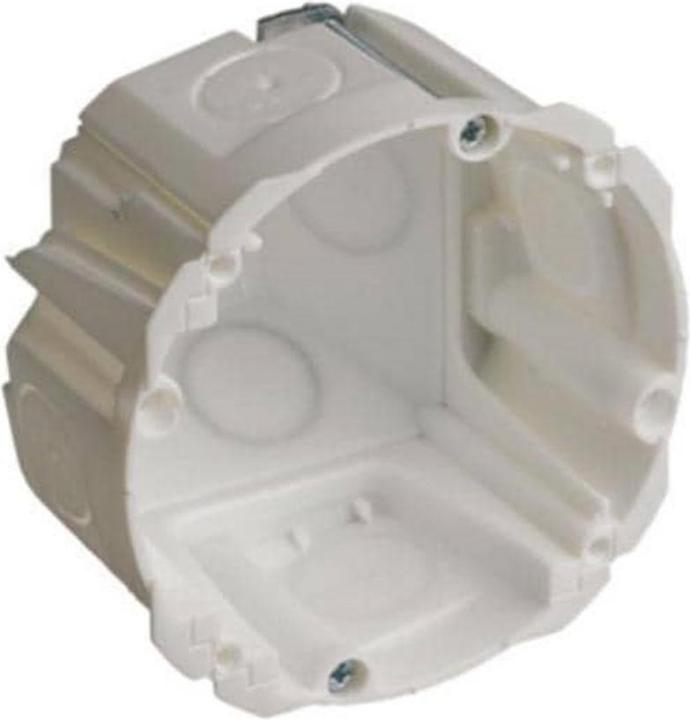

1. Elektromaterial Inlet box Agro Quickbox H1
Electrical material inlet box Agro Quickbox H1, installation box for use in hollow and lightweight walls.

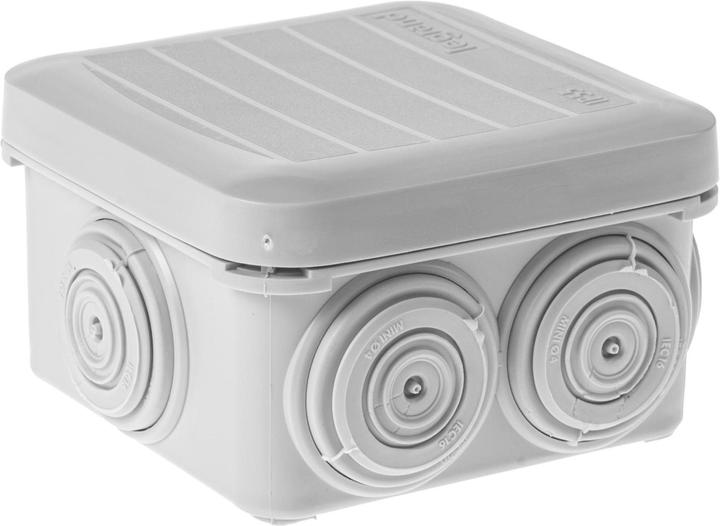

2. Legrand Plexo box
Plexo boxes IP 55 - IK 07 with membrane glands for direct entry, glow wire resistance at 650 °C. Designed for use as junction boxes in any type of normal installation circuit. Operating temperature ranges from -25 °C to +40 °C. Interchangeable membrane glands accommodate IRL conduits up to 16 and R02V cables, with marked recess for larger IRL conduits. Features a captive cover with cable tie and space for marking on both sides. Fastening is achieved with vertical leveling. Class II is ensured by protective caps (included) for the fixing screws. These boxes are free from halogenated flame retardants (in compliance with European Directive RoHS 2002/95/EC). Square boxes can be fixed using tools such as a Pulsa 700 E nail gun. Dimensions are 105 x 105 x 55 mm in grey (RAL 7035). Permissible cables and conduits range from 4 to 25 mm. The cover closes with a quarter turn.
3. Elektromaterial Junction box Plexo IP55
The Plexo IP55 junction box from Elektromaterial is a robust and versatile solution for electrical installations outdoors. With compact dimensions of 65 x 65 x 40 mm, it provides ample space for the secure connection of cables. The sealing strain reliefs allow for flexible cable entry with a sealing range of Ø 4-20 mm, making installation in various applications easier. The IP55 protection rating ensures that the box is protected against dust and water, making it ideal for use in demanding environments. This junction box is made from high-quality plastic and is suitable for surface mounting. It is a reliable choice for anyone looking for a durable and weatherproof solution for their electrical connections.
- IP55 protection rating for optimal dust and water protection
- Sealing strain reliefs for flexible cable entry
- Compact dimensions for easy installation
- Made from high-quality plastic for durability.

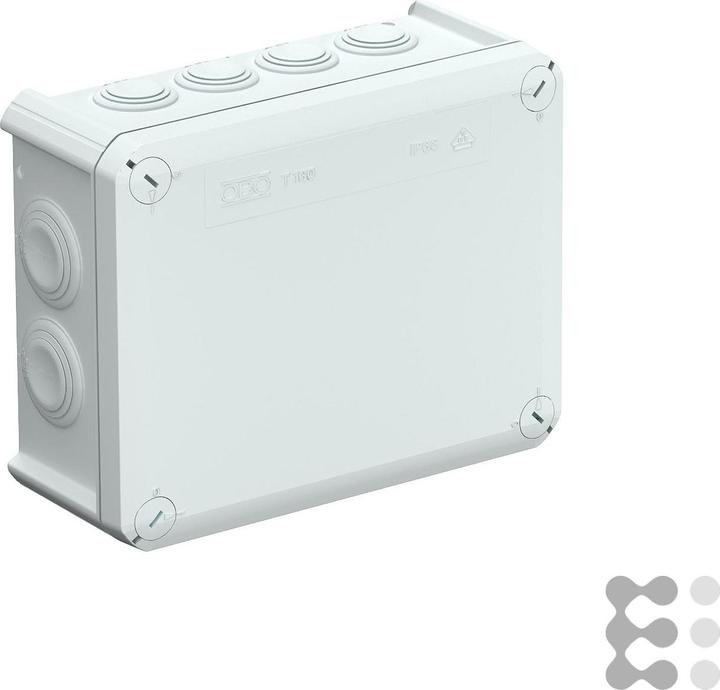

4. OBO Bettermann Junction box
The T-series junction boxes are all UV-resistant. They are made of a thermoplastic polypropylene with insert seals made of ethylene-vinyl acetate (EVA). This allows cables to be installed through the 7x M25 + 5x M32 seals, or the seals can be cut with a knife at the designated points to create an entry opening for cables or pipes. Alternatively, cable glands can be inserted through the openings instead of the seals and secured from the inside with a counter nut. The junction boxes can be mounted on mounting plates using sheet metal screws 3.5 x 9.5 in openings at the bottom. Internal dimensions: 176 x 135 x 67 mm. Lid with labeling field and sealable.
5. Spelsberg Junction box (L x W x H) 93
The Spelsberg junction box is a high-quality outdoor junction box designed for use in external environments. With an IP65 protection rating, it provides effective protection against the ingress of water and dust, making it ideal for demanding conditions. This box meets the requirements of DIN IEC 60670 (VDE 0606) and is suitable for voltages up to 690 V. Made from robust polystyrene, it ensures durability and reliability. Its compact dimensions of 93 x 93 x 55 mm allow for easy installation, while ceiling mounting offers flexible application. This junction box is an excellent choice for anyone seeking a safe and reliable solution for electrical connections outdoors.
- IP65 protection rating for optimal protection against water and dust
- Suitable for voltages up to 690 V
- Made from durable polystyrene
- Complies with DIN IEC 60670 (VDE 0606) standards.
6. Spelsberg Junction box
The Spelsberg junction box 80200301 is a robust junction box designed for various installation requirements. With a compact size of 87 x 152 x 52 mm, it offers sufficient space for the safe storage of electrical connections. The box is made of high-quality, halogen-free plastic and is characterised by its weather resistance, making it ideal for use both indoors and in protected outdoor areas. The IP66 protection rating ensures that the box is dust-tight and protected against strong water jets, making it a reliable choice for demanding environments. The junction box is equipped with self-sealing, soft entry membranes that enable easy and safe cable entry. It is suitable for standard installations and offers a maximum conductor cross-section of 2.5 mm², allowing flexible use in various applications. IP66 protection rating for high weather resistance. Halogen-free material for increased safety. Self-sealing entry membranes for easy installation. Suitable for indoor and protected outdoor applications. VDE certified for added reliability.
7. Rs Pro 304 S/Steel Terminal Box 200x200x120mm
Length: 200 mm
Width: 120 mm
Height: 200 mm
Dimensions (L x W x H): 200 x 120 x 200 mm
Material: Stainless steel
Protection class: IP66
Colour: Nature
Terminal boxes with IP66 protection. These robust terminal boxes were developed for DIN rail terminals and accessories. Thanks to their construction of 1.2 mm untreated AISI 304 stainless steel and black neoprene gasket, these enclosures are IP66 rated. The cover features a black neoprene seal and 4 captive M6 hexagon socket screws. Operating temperature ranges from -20 to +110 °C. Several DIN rail mounting points (M5) and external M6 earthing studs are included. Material: Stainless steel 304 / 1.4301. Protection class: IP66.

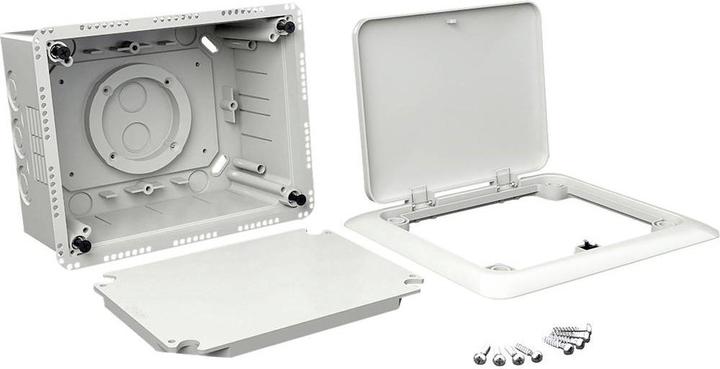

8. Kopos Insulation installation box halo
Designed for circuits with a voltage of up to 400 V. For installation in insulated facades with a thickness of 80-140 mm, possibly as a flush-mounted box. Used as a junction box, device holder, for lightning protection measuring clamps, and other customer applications. When installed on external plaster, sealing with silicone or rubber-based window sealant is recommended (IP 44).
9. Agro Universal anchor with 6 entries
The universal plugs Agro m.6 entries are specifically designed for use in junction boxes and provide a reliable solution for wall mounting. With a compact design and an IP30 protection rating, these plugs are ideal for use in dry indoor areas. The junction box has a length of 69 mm and a width of 60 mm, making it a practical choice for various installation requirements. Made from robust plastic, the plugs ensure a durable and secure attachment. The entries are designed to allow for easy and efficient installation, while the gray color supports discreet integration into the environment. This junction box is an excellent choice for electrical installations that require both functionality and aesthetics.
- IP30 protection rating for use in dry indoor areas
- Compact dimensions for versatile installation options
- Made from durable plastic
- Easy installation due to thoughtful design.
10. Kopp Junction box surface-mounted damp-proof, without terminal strip, colour: grey
The surface-mounted junction box for damp environments is a practical solution for electrical installations in humid settings. With an IP54 protection rating, it offers reliable protection against dust and splashes, making it ideal for use in bathrooms, kitchens, or other wet areas. The box has compact dimensions of 100x100x40 mm and is made from durable plastic, ensuring its longevity and resilience under various conditions. It is mounted on the ceiling, allowing for flexible installation. This junction box does not come with a terminal block, simplifying handling and installation.
- IP54 protection rating for use in damp environments
- Compact dimensions of 100x100x40 mm
- Durable plastic material for longevity.
Junction box
EUR5,57
Kopp Junction box surface-mounted damp-proof, without terminal strip, colour: grey
