Best selling Lathes
Here you’ll find the best-selling products in the Lathes category. The ranking is primarily based on sales volume, while also taking factors such as availability, price trends, and overall customer relevance into account. For each product, we provide a short description and the most important insights from customer reviews so you can quickly compare the most popular options. This page always stays fresh and updates automatically.
1. Proxxon Fd 150/E
2-stage belt drive and additional electronic control enable spindle speeds of up to 5,000 rpm. The right cutting speed even for the smallest parts. For facing, longitudinal turning, unscrewing, taper turning, tapping and drilling. Complete with 3-jaw chuck and accompanying grain tip. Centre distance 150 mm. Centre height 55 mm. Centre height above support 33 mm. Machine bed: With dovetail guide made of aluminium continuous casting. Headstock: Made of die-cast aluminium. With quiet DC special motor, 2-stage belt drive and additional speed control: for high pulling power at lower speeds for larger workpieces and for the correct cutting speed even for the smallest parts. Relay switch with emergency stop function and restart protection. Precision-beared main spindle with through 8.5 mm bore. Fit on chuck side for standard collets type ER 11. Three-jaw chuck: Centrically clamping (inner jaws 1 - 20 mm, outer jaws 20 - 60 mm). Tailstock: Made of die-cast aluminium. With quill and accompanying grain tip (fit MK 0/short). Support: Is moved on the bed manually and clamped with a lever. Turnable steel holder for turning steels 6 x 6 mm. The machining is carried out with top slides (60 mm travel) and cross slides (40 mm travel). By adjusting the angle of the top slide, it is possible to turn cones up to +/- 45°. Setting wheels: With scale ring adjustable to 0 (1 graduation = 0.05 mm, 1 revolution = 1 mm). Other technical data: 230 Volt. 50/60 Hz. Centre distance 150 mm. Centre height 55 mm. Centre height above support 33 mm. Adjustment range face slide (X) 40 mm, top slide (Z) 60 mm. Steel holder for turning steels 6 x 6 mm. Spindle aperture 8.5 mm. 2-stage belt drive with speed control: stage 1 = 800 - 2,800/min. Level 2 = 1.500 - 5.000/min. Size approx. 360 x 150 x 150 mm. Weight approx. 4.5 kg. Built according to protection class 1.
2. Scheppach DM1100T
Workpieces with a length of 1000 mm and a diameter of 350 mm can be processed on the Scheppach DM1100T lathe. A quiet-running 400 W induction motor with 4 speed settings ensures vibration-free turning for various material requirements. With a weight of 20 kg, the lathe has a stable stand thanks to its solid steel bed.
The Scheppach DM1100T lathe is perfectly suited for home hobby workshops due to its compact size. Wood and soft materials can be easily processed with the DM1100T, making it ideal for the needs of model builders and DIY enthusiasts.
Workpieces with a length of 1000 mm and a diameter of 350 mm can be fixed between the headstock with M18 thread and 4-prong live center and the tailstock, allowing for the processing of larger workpieces with ease. The adjustable tool rest enables powerful tool application to the workpiece, resulting in smoother tool guidance and a more beautiful finish.
The lathe is easy to transport, allowing for flexible use. Its weight of 20 kg and solid steel bed ensure a particularly stable stand and low-vibration operation.
The quiet-running 400 W induction motor with 4 speed settings provides sufficient power. The high running smoothness contributes to a better finish.
Thanks to the adjustable spindle speed (890 / 1260 / 1760 / 2600 min-1), the turning speed can be perfectly adapted to the material of the workpiece, ensuring ideal results at all times.
The package also includes 1 faceplate, 2 turning chisels (1 straight, 1 hollow), and a mounting set for attachment to the workbench. Additional turning tools are available separately.
3. Proxxon Röhm gear rim drill chuck
Chuck with a jaw chuck. Clamping range of 0.5 - 6.5 mm. Industrial version with high runout accuracy (approved up to 10,000/min). Complete with a B 10 x MK 0/short taper. For the tailstock of the FD 150/E.
4. Röhm Clamping sleeve
The Type B clamping sleeve from Röhm is a precise accessory for lathes, specifically designed for applications with a minimum diameter of 49.7 mm. This standard version is not vulcanized and provides reliable clamping force for various machining processes. With a stretch of 1 mm and an overall length of 78 mm, the clamping sleeve is ideal for use in metalworking. It ensures a secure and stable connection between the workpiece and the machine, leading to high accuracy and efficiency in machining. The clamping sleeve is not classified as a medical device and is therefore suitable exclusively for industrial applications. Its robust construction and precise manufacturing make it an indispensable component for professionals in turning operations.
- Minimum diameter of 49.7 mm for versatile applications
- Robust standard version for high stability
- Precise manufacturing for optimal clamping force.
5. Loc-Line Coolant hose system
LOC-LINE Coolant hose system / 1/2", 51821 / 2 reducers
Type 1/2" - 12 mm passage (30 l/min); segment outside diameter 21.5 mm or 25 mm.
Coolant hoses can be put together, adapted, extended and shortened easily by hand; neither coolant pressure nor machine vibrations can change the hose''s position.
Flat nozzles 51847, 51848, 59897, 59898 - ideal when sanding and for EDM applications.
6. Röhm Centre punch centre centre HM size 104 MK 3
The Röhm live center point is a precise tool specifically designed for counterholding workpieces on turning and grinding machines. With a point angle of 60° and a hardened and ground body, this center point offers high stability and roundness accuracy. The carbide insert ensures exceptional durability and wear resistance, making it a reliable choice for demanding applications. The triple bearing guarantees a maximum runout deviation of only 0.005 mm, allowing for the highest precision in machining. This center point is ideal for professionals who value quality and accuracy.
- Wear-resistant carbide insert for long lifespan
- High-precision roundness accuracy with a maximum deviation of 0.005 mm
- Triple bearing for increased stability
- Hardened and ground body for improved performance
- Suitable for turning and grinding machines.
7. Magni Zinner support blade Length 150 mm Piercing width 2.2 mm
The Zinner support blade ZRC-2.2-32-10 is a precise tool specifically designed for use in lathes. With a cutting width of 2.2 mm and a maximum insert depth of 30 mm, it offers high efficiency and accuracy when processing materials. The cutting edge height of 32 mm ensures optimal stability during use. Made in Germany, this product stands for quality and durability. Weighing 63 g, it is easy to handle, while the specific designation and technical data allow for easy identification and integration into existing machines. This support blade is ideal for professionals who value precision and reliability.
- Maximum insert depth of 30 mm for versatile applications
- Made in Germany, which speaks to high quality standards
- Optimal stability with a cutting edge height of 32 mm
- Lightweight at 63 g for easy handling.

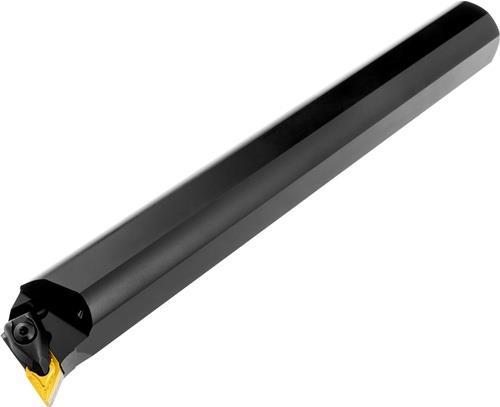

8. Pramet Bohrstange ISO A40T-DDUNR 15 D.40mm Rechtslauf
The Pramet ISO A40T-DDUNR 15 D.40mm boring bar is a highly advanced tool specifically designed for lathes. It features a double-clamped clamping device that allows for precise handling of 55° rhombus negative indexable cutting inserts. With an inner circle diameter of 12.7 mm and a thickness of 6.35 mm, this boring bar is ideal for various applications, including internal deburring, internal taper turning, and copy turning. The right-hand version is optimized for longitudinal turning at an angle of 93°. Made from robust steel and equipped with a coolant channel hole, it ensures efficient cooling during operation. With a diameter of 40 mm and a length of 300 mm, it is suitable for a wide range of machining tasks, offering high stability and durability.
- Double-clamped clamping device for precise machining
- Optimized for 55° rhombus negative indexable cutting inserts
- Integrated coolant channel hole to enhance cooling
- Versatile for internal deburring and copy turning
- Robust steel construction for high stability and durability.
9. Röhm 61705 Travelling centre point type 614-00 MK 4 with interchangeable inserts
Short description with interchangeable inserts made of wear-resistant tool steel for maximum flexibility. The set includes various inserts. Technical features: body hardened and ground, inserts through-hardened and ground. Application areas: for counter-holding workpieces on turning and grinding machines. Particularly suitable for the single production of a wide variety of workpieces due to different inserts. Advantages: wide range of applications due to interchangeable inserts, quick change of interchangeable inserts. Additional information: live center point, MK 4 holder, size 108, complete with all inserts in a wooden box.
10. Röhm Top jaw AB
The AB jaw attachment from Röhm is a high-quality accessory for lathes, specifically designed for precise machining requirements. This set consists of four unhardened, non-stepped jaws that allow for optimal adaptation to various workpieces. The use of 16MnCr5 as the material ensures high strength and durability, making the jaw attachment a reliable choice for professional applications. With a maximum turning diameter of 100 millimeters, this product is ideal for a variety of turning projects. The non-stepped design allows for flexible handling and adaptation to different workpiece shapes, enhancing versatility in application. Therefore, the AB jaw attachment is a valuable addition to any lathe, providing precise and efficient machining.
- Unhardened, non-stepped design for flexible application
- Made from robust 16MnCr5 material
- Suitable for maximum turning diameters of 100 mm.
