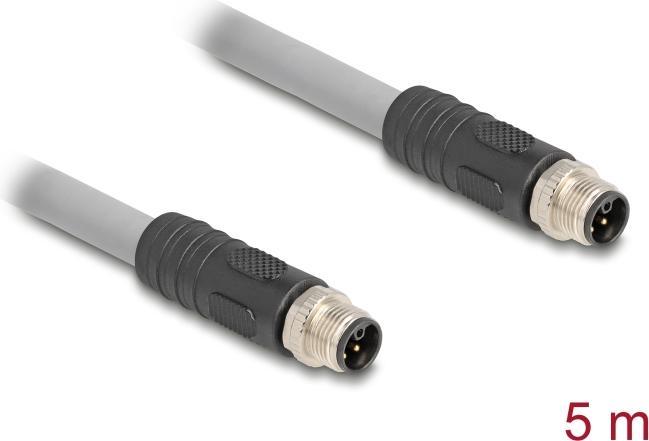

This M12 sensor cable by Delock is designed for direct current applications. The L-coded version features 5 current contacts with a rated current of 16 A at 63 V, enabling reliable current transmission. It is suitable for powering fieldbus components, power supply units, industrial machines, and motors where high current and low voltage are required.

Technical data

• Connections:

1 x M12 plug 5 pin L-coded
1 x M12 plug 5 pin L-coded

• Copper cable
• Shielded
• Wire cross-section: 14 AWG (2.5 mm²)
• Rated current: 16 A / 63 V
• Width across flats: SW13
• Cable diameter: approx. 10.4 mm
• Cable sheath material: PUR
• Suitable for drag chains
• Drag chain speed: up to max. 5 m/s
• Tightening torque: 0.6 Nm
• Bending radius (fixed): 5 x outer diameter
• Bending radius (movable): 10 x outer diameter
• Max. number of bending cycles: 5,000,000
• Max. number of torsion cycles: 500,000
• Torsional stress: ± 180 °/m
• Operating temperature (fixed): -40 °C to 80 °C
• Operating temperature (movable): -25 °C to 75 °C
• Flammability class: UL94HB
• Halogen-free, silicone-free, oil-resistant
• Protection class: IP66 / IP67
• Thread material: die-cast zinc
• Colour: grey
• Length including connections: approx. 5 m

Package contents

• M12 cable

Packaging

• Resealable bag.
