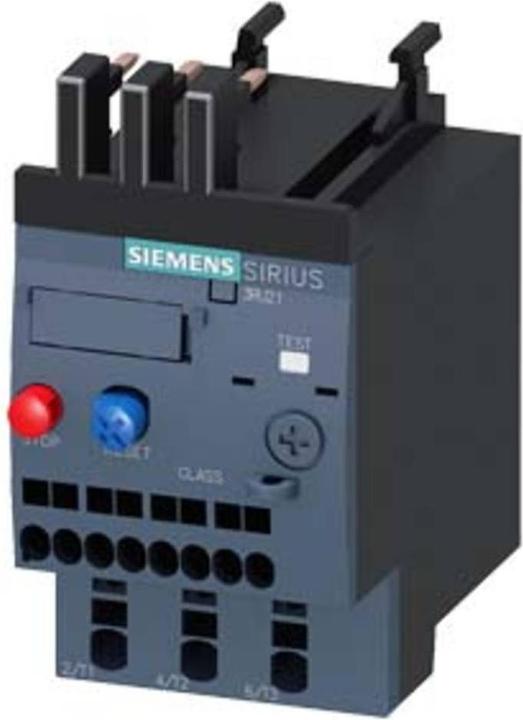

Siemens digital industrial overload relay 3RU2116-0BC0. Manufacturer: Siemens Digital Industries. Designation: Overload relay 0.14-0.20A S00. Type: 3RU2116-0BC0. Adjustable current range: 0.14 to 0.2 A. Maximum operating voltage: 690 V. Mounting type: Direct mounting. Connection type main circuit: Spring-loaded connection. Rated operational voltage: 690 V. Number of auxiliary contacts as NC contacts: 1. Number of auxiliary contacts as NO contacts: 1. Tripping class: Class 10. Reset function input: No. Reset function automatic: Yes. Reset function push-button: Yes.

Further details: Overload relay 0.14 to 0.20 A thermal for motor protection, size S00, Class 10 contactor mounting. Main circuit: Spring-loaded terminal. Auxiliary circuit: Spring-loaded terminal. Manual automatic reset. SIRIUS 3RU2 thermal overload relay for current-dependent protection of loads with normal starting against impermissibly high heating due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g., IEC and UL/CSA) and applications in potentially explosive atmospheres (ATEX or IEC Ex) are standard. Available with different setting ranges of the overload release. They are available with screw or spring-cage connection for fast, maintenance-free, and vibration-proof connection, as well as for individual installation. The accessories fit all sizes S00 to S3. Simple, efficient, always up-to-date - the SIRIUS modular system. EAN: 4011209781931.
