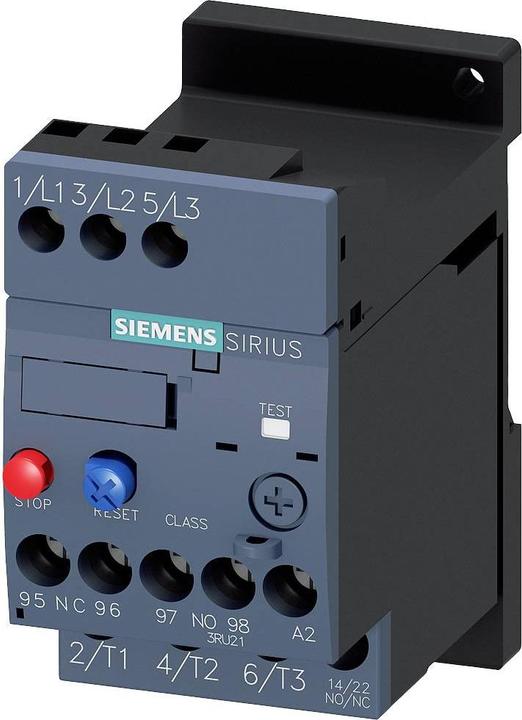

Siemens digital industrial overload relay 3RU2116-1CB1

Manufacturer: Siemens Digital Industries
Designation: Overload relay 1.8-2.5A S00
Type: 3RU2116-1CB1
Adjustable current range: 1.8 - 2.5 A
Max. rated operational voltage: 690 V
Mounting type: Individual installation
Connection type main circuit: Screw connection
Number of auxiliary contacts as NC contacts: 1
Number of auxiliary contacts as NO contacts: 1
Tripping class: Class 10
Reset function input: No
Reset function automatic: Yes
Reset function push-button: Yes

Further details:
Overload relay 1.8 - 2.5 A thermal for motor protection, size S00, Class 10. Individual installation with screw connection for the main circuit and screw connection for the auxiliary circuit. Manual and automatic reset available.

The SIRIUS 3RU2 thermal overload relay provides current-dependent protection of loads with normal starting against impermissibly high heating due to overload or phase failure. This series is particularly flexible and cost-effective, with worldwide approvals (e.g., IEC and UL/CSA) and applications in potentially explosive atmospheres (ATEX or IEC Ex).

Available with different setting ranges for the overload release, they feature screw or spring-cage connections for fast, maintenance-free, and vibration-proof installation. The accessories fit all sizes from S00 to S3. Simple, efficient, and always up-to-date - the SIRIUS modular system.
