Devi Thin Bed Set 1-450 W 140F0820

Manufacturer: Devi
Description: Thin bed set 1-450 W DTIF 3.0 sqm, professional
Type: 140F0820
With carrier mat: yes
Fixation of heating cable: glued
Self-adhesive: yes
Connection power: 0-450 W
Power: 150 W/m²
Heating cable load: 11 W/m
Number of cold leads: 1
Length of cold leads: 4000 mm
Suitable for wet rooms: yes
Suitable as outdoor heating: no
Suitable as roof heating: no
Area: 3 m²
Length: 6000 mm
Width: 500 mm
Thickness: 3.5 mm
With controller: yes
With room thermostat: yes
With floor temperature sensor: yes

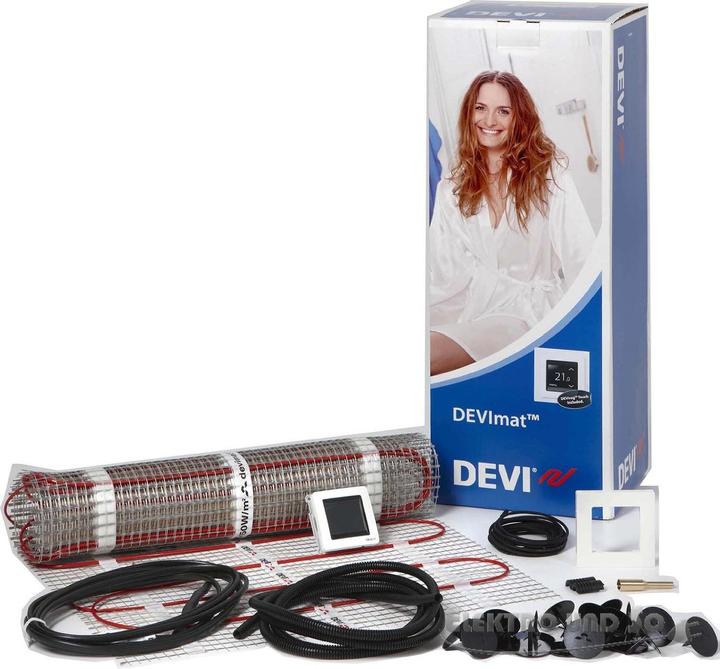

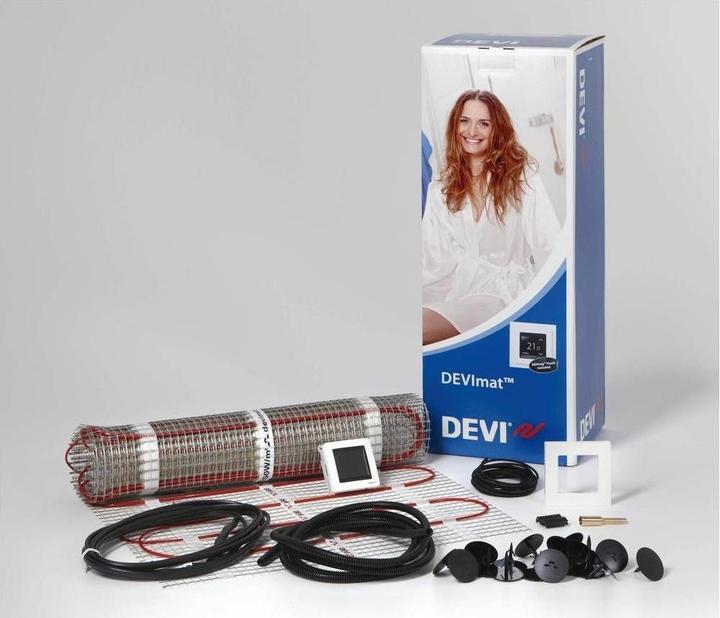

Additional details: Thin bed set with touch thermostat, flexible sensor protection tube DN10 with red cap, plastic nails, installation instructions. The self-adhesive thin bed heating mat with a connection cable is pre-assembled and designed specifically for installation in leveling compound or flexible adhesive directly beneath the floor covering. Due to the low installation height of only 3.2 mm, it is ideal for renovating and modernizing bathrooms, showers, kitchens, etc. This floor heating system is particularly suitable for retrofitting in awkward and/or large rooms, as the return of the second connection is not required. The heating cable with additional protective sheath for use with RCD protection is mounted on a plastic mesh. The length of the connection cables is 4.0 m. Cold lead: 1 x 4 m, 1.0 mm², Voltage: 230 V, Rated limit temperature: 120 °C, Specific heating power: 150 W/m², Length load: 11 W, Insulation: PVDF / FEP, Resistance tolerance: +10% / -5%, Minimum installation temperature: 5 °C, Minimum bending radius: 6 x dA, Calculation width: 50 cm, Delivery width: 48 cm, Mat height: 3.2 mm, Protection class: IPX7, Approval: EN 60335-2-96, Area: 3.0 m², 0.5 x 6.0 m.
