Application:
Controlled screw tightening in the range of 1 - 5 Nm / 0.75 - 3.7 lbf·ft.

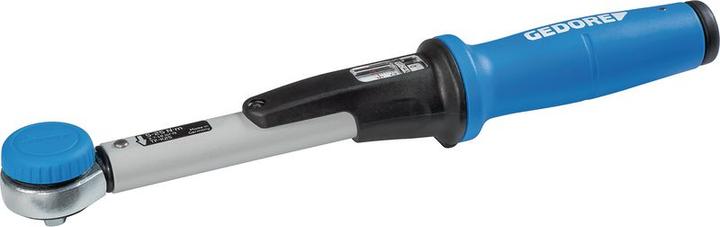

Adjustable, releasing, and robust pipe torque wrench with integrated ratchet and square drive for industry and crafts.
Design:
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, calibrated to a maximum permissible deviation of +/- 3%, thus more precise than the +/- 4% required by the standard.
Includes traceable test certificate (DIN EN ISO 6789-2:2017).
For controlled right and left tightening (switch square drive for direction change).
1/4" mushroom head interchangeable square with ball lock.
Robust, matte powder-coated steel tube construction with galvanized ratchet and high-quality plastic parts.
New ergonomic handle shaped according to the natural grip position of the hand.
Clearly recognizable and tactile hand centering aid as well as calibration aid in the center of the handle.

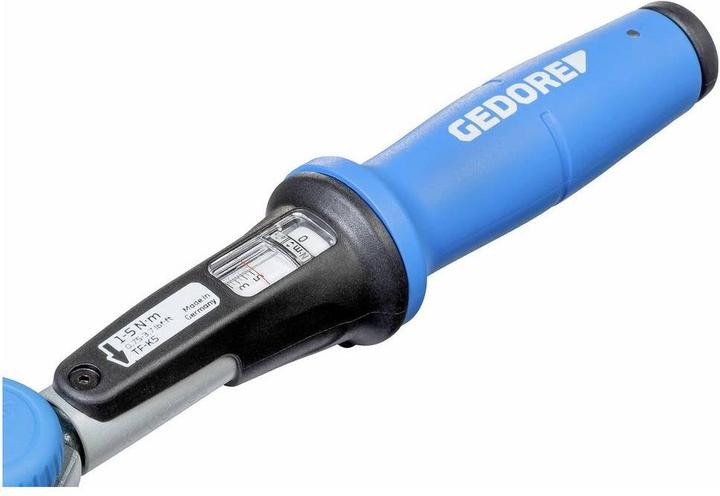

Double scale Nm / lbf·ft with vernier (Nm), enlarged viewing window protects against abrasion and contamination.
With vernier scale for Nm main scale to set scale intermediate values; lbf·ft setting only via main scale.
Vertical alignment of the scale, making torque adjustment suitable for both left- and right-handed users.
Scale mark positioned directly above the scale, preventing reading errors (parallax error).
Unit labeling integrated into the scale frame and also protected against abrasion through the viewing window.
Precise release mechanism generates a clearly noticeable and audible release signal upon reaching the set torque value.
Includes roll-away protection, preventing the tool from rolling away when set down.
