Niedax Hanging Profile HU 5050/250

Manufacturer: Niedax
Designation: Hanging Profile
Type: HU 5050/250
Length: 255 mm
Profile Width: 50 mm
Profile Height: 50 mm
Design: U-Profile
Load Capacity: 4 kN
Suitable for Function Maintenance: no
Material: Steel
Stainless Steel, Pickled: no
Material Quality: other
Surface Protection: Hot-dip galvanized
Operating Temperature: -20 to 120 °C
Weight: 1.05229 kg

Further Details:
Hanging profile, 3-sided continuously perforated U-profile with welded head plate, System HU 5050, for brackets for one-, two-, and three-sided installation. To prevent deformation of the hanging profile during the installation of brackets, the hanging profile spacer HDS 50.50 F with hexagon screw must be considered for static reasons. When attaching the bracket to the hanging profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the hanging profile. For static reasons and to allow for easy placement of the protective cap, the bracket must be mounted at a distance of 50 mm (bracket bottom edge to hanging profile end) above the end of the hanging profile. VDE certified!

For Brackets: KTAL, KTAM, KTA

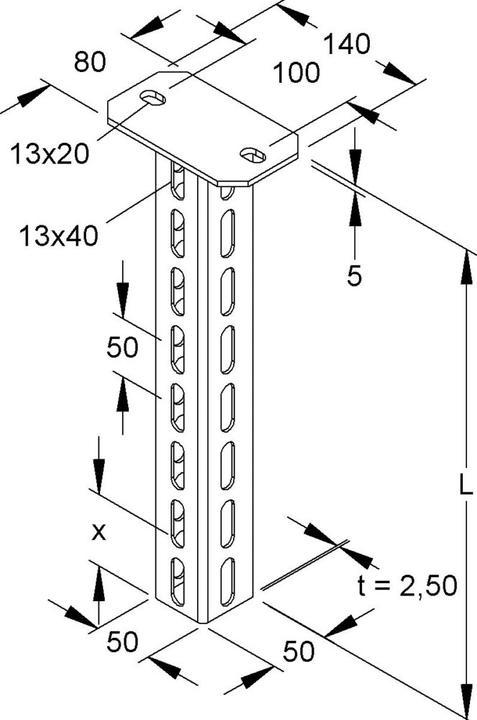

Dimensions (approx. measurements):
Head Plate L x W x t: 140 x 80 x 5 mm
Mounting Hole: 13 x 20 mm
Center Distance: 100 mm
U-Profile: 50 x 50 x 50 mm
Material Thickness t: 2.5 mm
Three-sided Profile Perforation, single row: 12 x 30 mm
Center Distance: 50 mm
Total Length L: 255 mm
Material: Steel, hot-dip galvanized according to DIN EN ISO 1461
EAN: 4013339858729.
