Best Optimum products in the Bench drills category
On this page you'll find a ranking of the best Optimum products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

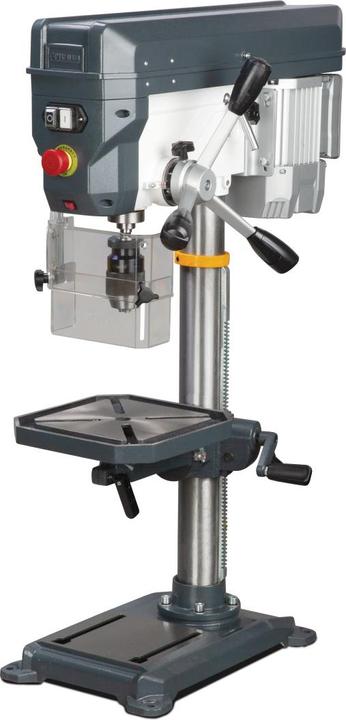

1. Optimum OPTIdrill DQ14
Separate emergency stop switch, measuring scale for drilling depth, drill table can be tilted ± 45° and rotated 360°. One-piece die-cast aluminium quill lever with soft-grip handles. Precision spindle bore, safety electrics with 24 V DC voltage. Guaranteed concentricity of less than 0.03 mm measured in the drill sleeve. Drill spindle with precision ball bearings, high-quality quick-action drill chuck. GATES quality belt. Large base plate with T-slots, heavily ribbed on the back. Scope of delivery: Quick-action drill chuck 1-15.9 mm, T-nuts

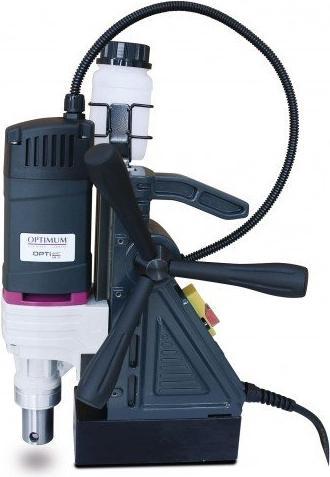

2. Optimum 713071050 DM50 Magnetischer Bohrständer ø 50 x 50 mm OptiDrill

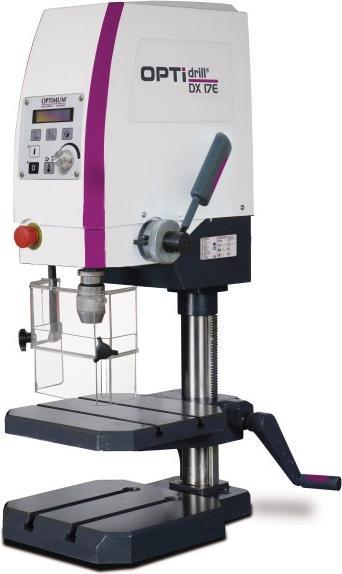

3. Optimum Stürmer - Bench drill OPTIdrill DX 17E
Description: Optimal power transmission through aluminum pulleys. Emergency stop switch. Drill spindle with precision ball bearings. Guaranteed run-out accuracy of less than 0.03 mm measured at the drill spindle. High-contrast digital LCD speed display integrated into the housing, speed control via potentiometer. Dirt and water-resistant, easy-to-clean membrane keyboard. Glare-free LED lighting integrated on both sides of the drill head. No distracting shadows. Height-adjustable feed guard with microswitch for maximum protection. Precisely machined drill table with parallel T-slots, precisely surface-treated. Drill table can be swung away. Solid base plate with parallel T-slots.
Technical Data:
Dimensions and Weights:
Column diameter 60 mm, Length (product) approx. 425 mm, Width/Depth (product) approx. 481 mm, Height (product) approx. 910 mm, Weight (net) approx. 73 kg.
Drilling Capacity:
Drilling capacity steel (S235JR) 16 mm, Continuous drilling capacity steel (S235JR) 13 mm.
Drill Table:
Drill table working surface length 290 mm, Drill table working surface width 290 mm, Drill table T-slot size 10 mm, Number of T-slots on drill table 2, Distance between T-slots on drill table 100 mm, Drill table rotation 360°, Distance from chuck to drill table min. 98 mm, Distance from chuck to drill table max. 315 mm.
Speed Range:
Speed range 50 – 4000 min¯¹, Electronic speed control.
Electrical Data:
Power of drive motor 1.0 kW, Connection voltage 230 V, Mains frequency 50 Hz.
Machine Base:
Distance from chuck to machine base max. 385 mm, Machine base working surface length 290 mm, Machine base working surface width 280 mm, Machine base T-slot size 14 mm, Number of T-slots on machine base 2, Distance between T-slots on machine base 100 mm.
Spindle:
Quill stroke 60 mm, Spindle mount MK 2, Reach 235 mm.
Scope of Delivery: Quick-release drill chuck 1 - 13 mm.
4. Optimum 713071435 DM35PF Power Magnet-Bohrer ø 38 x 35 mm OptiDrill
5. Optimum 713020281 Optidrill B28H Colombo-Bohrmaschine 28 mm 230 Volt

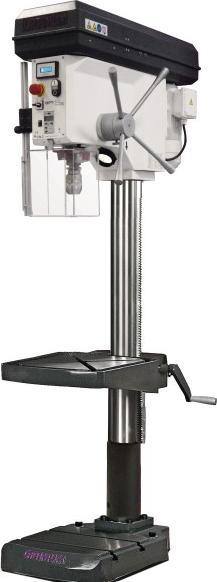

6. Optimum - OPTIdrill DH 40BV pillar drilling machine
The OPTIdrill DH 40BV column drill from Optimum is a powerful tool designed for precise drilling in various materials. With a mains voltage of 400 V and a power output of 2.2 kW, this bench drill provides a reliable energy source for demanding applications. The chuck clamping range extends from 14 mm to 16 mm, allowing for flexible handling of different drill sizes. The maximum drilling depth of 32 mm ensures that even deeper holes can be easily processed. The machine is designed for mains operation and features a robust construction that guarantees a long lifespan. Its striking green color not only gives the machine a modern appearance but also makes it an attractive element in any workshop. The OPTIdrill DH 40BV is ideal for professional craftsmen as well as hobbyists who value precision and performance.
7. Optimum 713071035 DM35 Magnetischer Bohrständer ø 35 x 35 mm OptiDrill
8. Optimum Optidrill bench drill 230V OPTI B17PRO basic
The Optidrill bench drill 230V OPTI B17PRO basic from Optimum is a powerful tool designed for precise drilling in various materials, especially metal. With a motor power of 490 watts and a guaranteed run-out accuracy of less than 0.02 mm, this machine offers high precision and reliability. The drill spindle is equipped with precision ball bearings, enhancing the durability and efficiency of the device. The robustly designed drill table features diagonally arranged T-slots and a surrounding coolant channel, ensuring optimal handling and cooling during the drilling process. Safety features such as a belt cover with a safety switch and a separate emergency stop switch ensure safe operation. This bench drill is ideal for professional applications and offers a variety of functions that enhance user-friendliness and work quality.
- Drilling capacity for steel up to 15.5 mm
- High-quality quick-release drill chuck with a clamping range of 12 to 15.5 mm
- Precisely crafted drill table with T-slots for versatile applications
- Separate emergency stop switch for increased safety
- Drilling depth stop for accurate drilling.
9. Optimum Drilling machine OPTIdrill DQ20 / 400V/3Ph/50Hz
The OPTIdrill DQ20 from Optimum is a powerful bench drill designed for precise drilling in various materials. With a robust construction and a variety of features, it offers both hobbyists and professionals the ability to execute their projects efficiently and accurately. The machine is equipped with a stable drill table that can be both tilted and rotated, allowing for flexible handling. The integrated measuring scale for drilling depth ensures precise adjustments, while the high-quality aluminum die-cast quill lever with soft grip handles provides comfortable operation. The OPTIdrill DQ20 is also equipped with safety electronics that ensure additional safety during operation.
- Separate emergency stop switch for increased safety
- Precision spindle drilling with guaranteed runout accuracy of less than 0.03 mm
- High-quality quick-release drill chuck for fast tool changes
- Large base plate with T-slots for versatile mounting options
- Speed range from 300 to 2300 min¯¹ with 12 stages for flexible adjustment to different materials.
10. Optimum Bench drill with V-belt drive DQ 22 230V
The DQ 22 bench drilling machine from Optimum is a powerful tool designed for precise drilling in various materials. With a robust design and a range of features, this machine offers high flexibility and user-friendliness. The well-constructed drill table is both tiltable and rotatable, allowing for optimal adjustment to different work requirements. The machine is equipped with a high-quality quick-change drill chuck that enables easy and fast tool changes. Safety is ensured by a separate emergency stop switch and an adjustable protective cover. The DQ 22 is ideal for professional applications and guarantees a run-out accuracy of less than 0.03 mm, making it an excellent choice for precise drilling tasks.
- Separate emergency stop switch for increased safety
- Precision spindle drilling with guaranteed run-out accuracy under 0.03 mm
- High-quality quick-change drill chuck for fast tool changes
- Drill table with diagonal T-slots and a surrounding coolant channel
- Speed range from 300 to 2300 min⁻¹ with 12 levels.
