Best selling Residual-current device from ABB
On this page you'll find a ranking of the best ABB products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. ABB FI/LS switch
FI/LS switches (RCBOs) provide personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. They ensure the protection of single-phase circuits against overload and short-circuit currents, protection against sinusoidal alternating currents, and pulsating currents with a smooth residual current component of up to 6 mA to earth. Additionally, they offer fault protection (protection against indirect contact), supplementary protection, and fire protection. They comply with product standards IEC/EN 61009-1 (VDE 0664-20) and IEC/EN 61009-2-1 (VDE 0664-21). Their areas of application include household and commercial uses.
The compact design of the DSX301C FI/LS is ideally suited for use in power distribution systems where space is limited. The series is equipped with a 30 mA differential residual current and a B or C tripping characteristic.
Its patented connection terminals with Push-In technology ensure easy and secure contact and handling. The upper outgoing Push-In terminal can accommodate conductors of up to 2 x 4 mm². On the input side, the PSX phase rails can be used for cross-wiring. For power supply, conductor cross-sections of up to 10 mm² can be directly connected to the device via the screw connection terminal in protection class IP20. For better visibility when connecting, the opening of the screw terminal is located above the flexible terminal for the phase rail.
The rated switching capacity according to IEC/EN 61009 is Icn = 6 kA. The RCBO DSX301C Type A is single-pole protected (LS) and double-pole switching.
2. ABB RCD, F 204, 4 POLE
Residual current devices (RCCBs) provide protection for persons and property, as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 series RCCBs ensure protection against sinusoidal alternating currents and pulsating currents with a smooth direct fault current component of up to 6 mA to ground. They offer fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA), and fire protection (with IΔn ≤ 300 mA). They comply with product standards IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and for F200 A up to 100 A UL 1053. Applications include household, commercial, and industrial uses. The extensive range of accessories provides everything you need for your installation tasks. Numerous certifications make the F200 suitable for worldwide use.
3. ABB Sicherungsautomat
The S 200 series circuit breakers protect cables and wires from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They meet the construction standards DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN 60947-2, and UL 1077. Their patented terminal block ensures easy and secure connection and handling via a pressure plate. For better visibility during wiring, the connection opening for wires is positioned above the connection opening for the phase rail. Wire cross-sections of up to 35 mm² can be directly connected to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the S 200 suitable for global use. Each device undergoes three rigorous tests for quality and performance before delivery.
4. ABB F202B-25/0,03
F200 Type B for smooth DC residual currents and operational safety, all-current sensitive, with a short delay of 10 ms, and surge current resistant up to 3 kA (5 kA for selective versions). Residual Current Circuit Breakers (RCCBs) provide protection for persons and property, as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. The F200 B series RCCBs ensure protection against earth faults for sinusoidal alternating currents, pulsating currents, and smooth DC residual currents. They also provide fault protection (protection against indirect contact), additional protection (with IΔn ≤ 30 mA), and fire protection (with I∆n ≤ 300 mA). They comply with product standards for Type A IEC/EN 61008-1, 61008-2-1, 61543 (VDE 0664 10, 11, 30) and Type B DIN EN 62423 (VDE 0664-40). Applications include household, commercial, or industrial uses. The extensive range of accessories provides everything you need for your installation tasks. The Type B RCCBs are suitable for non-linear circuits that can generate residual currents with smooth DC residual currents and a variety of (high/) frequencies. These components are found in electronic devices such as frequency converters. The Type B RCCBs have a frequency range of 0...2 kHz for detecting residual currents and offer high system availability.
Type: F202 B-25/0.03
F200 B Type Residual Current Circuit Breaker.

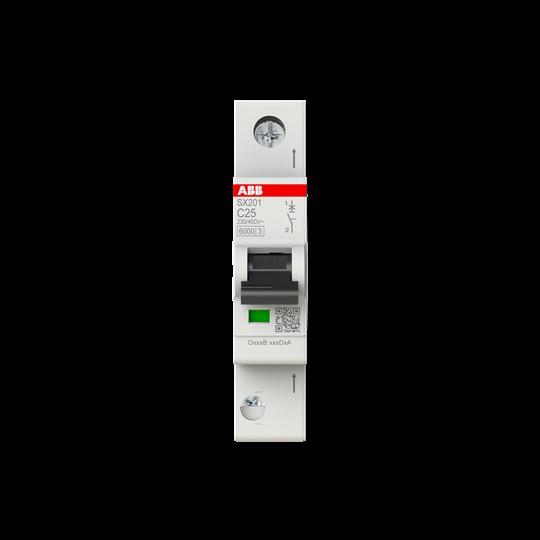

5. ABB Automatic circuit breaker
The SX 200 series circuit breakers protect cables and wires from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They meet the construction standards of DIN VDE 0641-11 and IEC/EN 60898-1. Their patented connection terminals with Push-In technology ensure easy and secure contact and handling. The upper outgoing Push-In terminal can accommodate conductors of up to 2 x 4 mm². On the input side, PSX phase rails can be used for cross-wiring. For power supply, conductor cross-sections of up to 10 mm² can be directly connected to the device via the screw terminal in protection class IP20. For better visibility during connection, the opening of the screw terminal is positioned above the flex terminal for the phase rail. Numerous approvals make the SX200 suitable for use in household and commercial applications. Each device undergoes three rigorous tests for quality and performance before delivery.
6. ABB S202-K10 Automatic circuit breaker 10A 2-pole K-characteristic
The S 200 series circuit breakers protect cables and wires from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They meet the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN 60947-2, and UL 1077. Their patented terminal block ensures easy and secure connection and handling through a pressure plate. For better visibility during wiring, the connection opening for wires is positioned above the connection opening for the phase rail. Conductor cross-sections of up to 35 mm² can be directly connected to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the S 200 suitable for worldwide use. Each device undergoes three intensive tests for quality and performance before delivery.

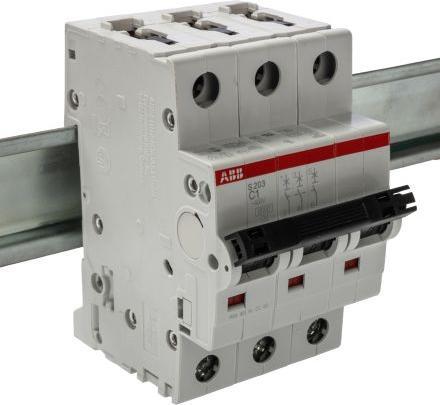

7. ABB S200 MCB 1A 3 Pole Type C 6kA
The ABB S200 Type C 1A 6kA circuit breaker is a reliable protective switch designed for use in electrical installations. With a 3-pole configuration and a Type C tripping characteristic, this switch provides effective protection against overload and short circuits. It is rated for a nominal voltage of 400 volts and ensures a breaking capacity of up to 10 kA, making it a safe choice for various applications. The switch is suitable for mounting on a DIN rail, facilitating installation in distribution cabinets. Its compact design, with a width of 52.5 mm, allows for space-saving arrangements in electrical systems. Manufactured in Germany, the S200 meets high industry standards and offers durable and reliable performance.
- Suitable for AC and DC voltage types
- Made in Germany
- Part of the System Pro M Compact series
- Manufacturer's commitment to sustainability (SBTi).
8. ABB S201-B25NA Circuit breaker 25A pro M compact 1p+NA
The S 200 series circuit breakers protect cables and wires from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN 60947-2, and UL 1077. Their patented terminal block ensures easy and secure connection and handling via a pressure plate. For better visibility during wiring, the terminal opening for wires is located above the terminal opening for the phase rail. Wire cross-sections of up to 35 mm² can be directly connected to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the S 200 suitable for worldwide use. Each device undergoes three intensive tests for quality and performance before delivery.

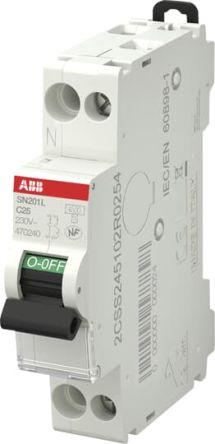

9. ABB SN201 MCB, 1P+N, 25A Curve C, 230V AC, 4.5 kA
The SN201 MCB circuit breaker from ABB is a reliable and safe device designed for use in electrical installations. With a pole configuration of 1+N and a rated current of 25 A, this circuit breaker provides an effective solution for protecting electrical lines against overload and short circuits. The Type C tripping characteristic allows for a targeted response to high inrush currents, making it ideal for applications involving motors and transformers. The switch is designed for an AC rated voltage of 230 V and has a breaking capacity of 4.5 kA, ensuring high safety. Installation is quick and easy on a DIN rail, facilitating its use in various electrical distributions. With a compact design measuring 69 mm in length and 85 mm in depth, the SN201 MCB is also suitable for tight spaces.
- Pole configuration of 1+N for flexible applications
- Type C tripping characteristic for high inrush currents
- Easy installation on DIN rail
- Breaking capacity of 4.5 kA for enhanced safety.
10. ABB STOTZ-KONTAKT S202-B6 Miniature circuit breaker B-type 2 2 module(s)
The S 200 series circuit breakers protect cables and lines from overload and short circuits in accordance with DIN VDE 0100-430 and DIN VDE 0100-530. They comply with the construction regulations DIN VDE 0641-11 or IEC/EN 60898-1, DIN VDE 0660-101 or IEC/EN 60947-2, and UL 1077. Their patented terminal block ensures easy and secure connection and handling via a pressure plate. For better visibility during wiring, the connection opening for wires is located above the connection opening for the phase rail. Conductor cross-sections of up to 35 mm² can be connected directly to the device via the terminal block with insulation in protection class IP20. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the S 200 suitable for worldwide use. Each device undergoes three intensive tests for quality and performance before delivery.
Type: S202-B6
S200 circuit breaker.
Residual-current device
EUR49,65
ABB STOTZ-KONTAKT S202-B6 Miniature circuit breaker B-type 2 2 module(s)
