Best Holzstar products in the Scrollsaws + Bandsaws category
On this page you'll find a ranking of the best Holzstar products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Holzstar Wood band saw HBS 471 230V
Description:
Twist-resistant construction. High stability with minimal space requirement. Safe and smooth saw cuts in wood. The heavy cast iron worktable with a ground surface is adjustable from 0 to 45°. Powerful motor. Safety switch stops the machine when the door is opened, preventing unwanted operation and startup. High-quality fixed band saw guide. Professional band saw with closed base. Quick tensioning of the saw blade via an eccentric lever on the back of the machine, without changing the basic tension setting. Cast iron flywheels ensure smooth operation. Easy tilting of the table from 0 to 45° via a rocking mechanism. Standard with two speeds. Set cutting width can be easily read on a scale. Suitable for saw blade widths from 6 to 25 mm. Aluminum parallel stop with eccentric quick tensioning and scale.
Technical Data:
Dimensions and Weights:
Length (Product) approx. 800 mm
Width/Depth (Product) approx. 490 mm
Height (Product) approx. 2000 mm
Weight (Net) approx. 157 kg
Dust Extraction Connection:
Dust extraction port diameter 100 mm
Work Table(s):
Work table length 535 mm
Work table width 485 mm
Work table height 975 mm
Work table groove width 19 mm
Electrical Data:
Connection voltage 230 V
Mains frequency 50 Hz
Power consumption 1.5 kW
Cutting Areas:
Max cutting height at 90° 285 mm
Max cutting width with stop 390 mm
Max cutting width without stop 465 mm
Saw Blade:
Saw blade speed(s) 380 / 820 m/min
Flywheel diameter 470 mm
Saw blade length 3455 mm
Scope of Delivery:
Saw blade 16.0 x 0.5 x 3455 mm / 4 TPI
Aluminum parallel stop.

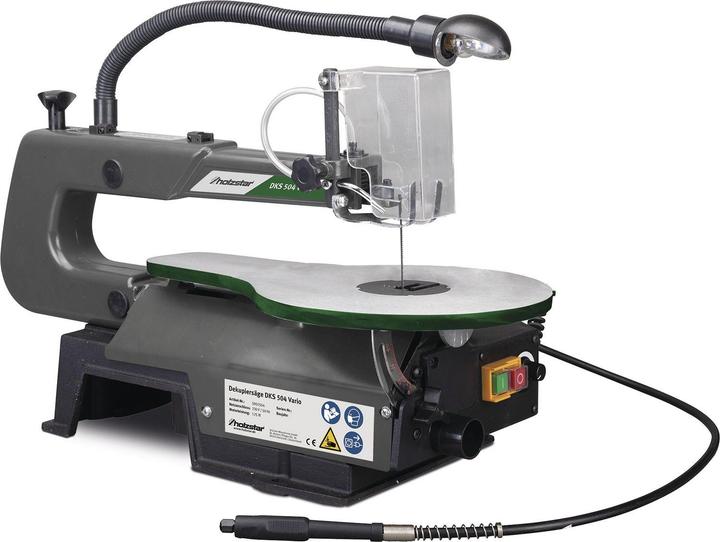

2. Holzstar DKS 504 Vario
The DKS 504 Vario is suitable for mold making, precision engineering, model building, or toy manufacturing. It is ideal for fine sawing work in schools and training workshops, for designers and architects, as well as for DIY enthusiasts. The scroll saw features stepless stroke rate adjustment. The work table can be tilted from 0 to +45 degrees. A flexible LED light is also included to illuminate the cutting area. A universal hand sander with a 3.1 mm tool holder is permanently integrated. It is designed for processing softwood, plastic, and similar materials. A robust cast construction ensures smooth, vibration-free operation. Due to its compact size, it can be used on any workbench or workspace. The saw blade holder swings freely and is compatible with standard saw blades with a cross pin. It can be connected to an external dust extraction system with a diameter of 35 mm via a dust extraction port. Includes a universal hand sander with many applications, such as sanding, cutting, drilling, and polishing. Tool set required.

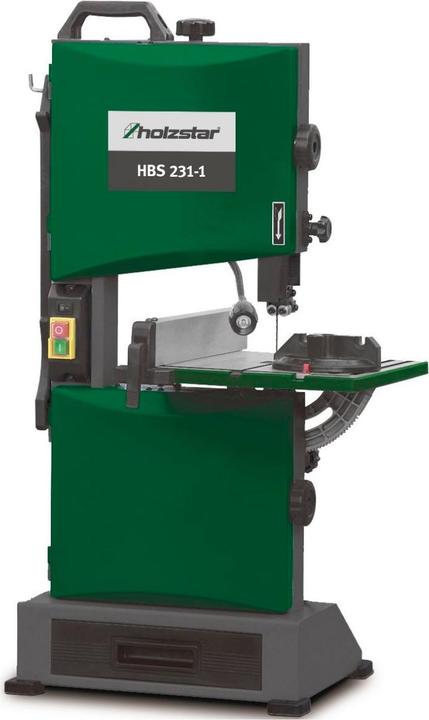

3. Holzstar HBS231-1 Wooden band saw
Description
Ideal for ambitious model builders and DIY enthusiasts. Flywheels made of aluminum die-cast with a special coating. Aluminum cast work table tiltable up to 45°. Equipped with precise 3-roller band saw guidance above and below the table. Aluminum parallel stop with quick clamping, precisely adjustable with the help of a magnifying glass and millimeter scale (except HBS 231-1). Two adjustable band speeds (except HBS 231-1).
Technical Data
Dimensions and Weights
Length (Product) approx. 490 mm
Width/Depth (Product) approx. 420 mm
Height (Product) approx. 835 mm
Weight (Net) approx. 20 kg
Connection for Dust Extraction
Dust extraction nozzle diameter 53 mm
Work Table(s)
Work table length 300 mm
Work table width 300 mm
Work table height 405 mm
Work table tilt 0 – 45 °
Electrical Data
Connection voltage 230 V
Mains frequency 50 Hz
Power consumption 0.3 kW
Output power 0.17 kW
Cutting Areas
Max cutting height at 90° 90 mm
Max cutting height at 45° 50 mm
Max cutting width with stop 125 mm
Max cutting width without stop 228 mm
Saw Blade
Saw blade speed(s) 635 m/min
Flywheel diameter 238 mm
Saw blade length 1575 mm
Min saw blade length 1565 mm
Max saw blade length 1585 mm
Saw blade width 6.35 mm
Max saw blade width 10.0 mm
Saw blade thickness 0.35 mm
Scope of Delivery
Saw blade
Parallel stop
Angle stop
LED work light
Push stick.

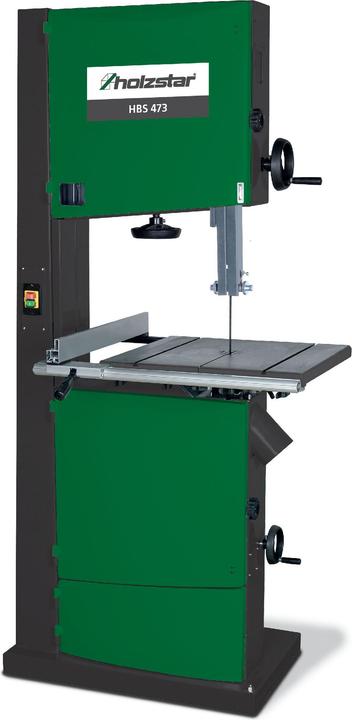

4. Holzstar Wood band saw HBS 473 400V
Description: Sturdy construction with high torsional rigidity. High stability with minimal space requirement. Safe and smooth cuts in wood. The heavy cast iron work table has a ground surface and can be tilted from 0 to 45°. Powerful motor. Safety switch stops the machine when the door is opened, preventing unintended operation. High-quality fixed band guide. Professional band saw with closed base. Quick tensioning of the saw blade via an eccentric lever at the back of the machine without altering the basic tension setting. Cast iron flywheels ensure smooth operation. Easy tilting of the table from 0 to 45° via a rocking mechanism. Standard with two speeds. Set cutting width can be easily read on a scale. Suitable for saw blade widths from 6 to 25 mm. Aluminum parallel stop with eccentric quick tensioning and scale.
Technical Data:
Dimensions and Weights:
Length (Product) approx. 800 mm,
Width/Depth (Product) approx. 490 mm,
Height (Product) approx. 2000 mm,
Weight (Net) approx. 157 kg.
Connection for Dust Extraction:
Dust extraction port diameter 100 mm.
Work Table(s):
Work table length 535 mm,
Work table width 485 mm,
Work table height 975 mm,
Work table groove width 19 mm.
Electrical Data:
Connection voltage 400 V,
Mains frequency 50 Hz,
Power consumption 1.6 kW.
Cutting Areas:
Max cutting height at 90° 270 mm,
Max cutting width with stop 390 mm,
Max cutting width without stop 465 mm.
Saw Blade:
Saw blade speeds 380 / 820 m/min,
Flywheel diameter 470 mm,
Saw blade length 3455 mm.
Scope of Delivery:
Saw blade 16.0 x 0.5 x 3455 mm / 4 TPI,
Aluminum parallel stop.
