Jumo Temperature sensor screw-in resistance thermometer with plug-in connection
Best selling Heater accessories from Jumo
On this page you’ll find a ranking of the best Heater accessories from Jumo. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Jumo Temperature sensor screw-in resistance thermometer with plug-in connection
The plug-in connection between the protective fitting and the connecting cable is securely locked in a contact-proof manner and has a protection class of IP65 when plugged in.
2. Jumo Temperature monitor structure stat ATH 2 (TW)
The devices of the ATH series are available as temperature controllers TR, temperature monitors TW, safety temperature monitors STW (STB), and safety temperature limiters STB. The STB puts the monitored system into a safe operating state in case of a fault. Built-in thermostats operate on the principle of liquid expansion, with a microswitch serving as the electrical switching element.
3. Jumo 55785
Jumo Insertion Thermoelement 00055785
Manufacturer: Jumo
Description: Insertion Thermoelement D=12mm
Type: 00055785
For gas and oil burners: no
Suitable for other application areas: yes
Length: 18 cm
Sensor class: Class 2
Temperature: 0..400 °C
With protective tube: yes
The insertion thermoelement with bayonet connection (diameter 12 mm) and a 2.5 m long compensating cable made of metal mesh is suitable for temperature measurement in solids using the Seebeck effect. The protective tube with a diameter of 8 mm is made of heat-resistant steel, material 1.4571, and has a flat tip. Therefore, this design is particularly well-suited for measurements on sliding bearings and tools. The adjustable installation length at the spring ranges from 20 to 180 mm. The single thermoelement 1x Fe-CuNi L according to DIN 43710 is designed for temperatures from 0 to 400 °C. The compensating cable can withstand ambient temperatures from -20 to +350 °C.
4. Jumo 55914
Jumo Thermoelement 00055914
Manufacturer: Jumo
Designation: Thermoelement 15x500 mm, -35 to +800 °C
Type: 00055914
For gas and oil burners: no
Suitable for other applications: yes
Length: 50 cm
Sensor class: Class 2
Temperature: -35 to 800 °C
With protection tube: yes
The plug-in thermoelement may be used in conjunction with the standard DIN EN 14597 (DIN 3440), tested temperature control and limiting devices, in heat transfer systems according to DIN 4754. Utilizing the Seebeck effect, it can be employed for temperature measurement in the operating medium air. Therefore, the thermoelement is particularly suitable for applications in heating, furnace, and apparatus construction.
As a double thermoelement 2x NiCr-Ni K according to DIN EN 60584 (Class 2), it is designed for temperatures from -35 to +800 °C. The connection head in design Form B (M24 x 1.5) is made of aluminum die-cast and can withstand ambient temperatures up to 100 °C. The 15 mm thick protection tube is made of stainless steel 1.4571 and has a 40 mm long tip reduced to a diameter of 5.5 mm. The stainless steel material protects the measuring element against chemical influences and mechanical damage. The installation length can be variably chosen between 50 and 460 mm using the movable stop flange. The thermoelement is exclusively intended for temperature measurements in gaseous media (air).
5. Jumo Widerstandsthermometer 902023/10-380-1003-1-6-150-104/000 (00542800)
Jumo Screw-In Resistance Thermometer 00542800
Manufacturer: Jumo
Designation: Screw-In Resistance Thermometer
Temperature Range: -50 to +200 °C
Type: 00542800
Design: Clamp
Measuring Range: -50 to 200 °C
Material: Stainless Steel
Probe Length: 150 mm
The screw-in resistance thermometer allows for temperature measurement in gaseous as well as liquid media due to the temperature dependence of the electrical resistance of its built-in platinum sensor. The proven installation design ensures reliable sealing under both vacuum and pressure conditions. The continuous protection tube and the process connection are made of stainless steel 1.4571, protecting the measuring element from chemical influences and mechanical damage.
This resistance thermometer is excellent for applications in climate and refrigeration technology, as well as in heating and apparatus construction. It complies with the standard DIN EN 60751 (Class B) and is configured as 1 x Pt100 in a two-wire circuit. The connection head in form B is made of aluminum die-cast, features a cable gland M20 x 1.5, and withstands temperatures up to 100 °C. The protection tube has dimensions of 6.0 x 150 mm. A G 1/2 inch threaded connection serves as the process connection.
Heater accessories
EUR259,–
Jumo Widerstandsthermometer 902023/10-380-1003-1-6-150-104/000 (00542800)
6. Jumo 54836
Jumo Thermoelement 00054836
Manufacturer: Jumo
Designation: Thermoelement 22x500, -200 to +1150 °C
Type: 00054836
For gas and oil burners: no
Suitable for other applications: yes
Length: 50 cm
Sensor class: Class 2
Temperature: -200 to 1150 °C
With protection tube: yes
The insertable thermoelement is suitable for temperature measurement in liquid and gaseous media using the Seebeck effect. The continuous protection tube is made of heat-resistant steel, material 1.4749 (operating temperature up to +1150 °C). Therefore, the thermoelement is excellently suited for use in heating, furnace, and apparatus construction. The single thermoelement 1x NiCr-Ni K according to DIN EN 60584 (Class 2) is designed for temperatures from -200 to +1150 °C. The connection head in design Form A is made of aluminum die-cast. It features a cable gland M20 x 1.5 and can withstand ambient temperatures from -40 to +100 °C. The protection tube has dimensions of 22 x 500 mm. A mounting flange (DIN 43734) serves as the process connection.
7. Jumo 54842
Jumo Insertion Thermoelement 00054842
Manufacturer: Jumo
Designation: Insertion thermoelement 710 mm, installation length
Type: 00054842
For gas and oil burners: no
Suitable for other application areas: yes
Length: 71 cm
Sensor class: Class 2
Temperature: -200 to 1150 °C
With protective tube: yes
The insertion thermoelement is designed for temperature measurement in liquid and gaseous media using the Seebeck effect. The continuous protective tube is made of heat-resistant steel, material 1.4749 (operating temperature up to +1150 °C). Therefore, the thermoelement is excellently suited for use in heating, furnace, and apparatus construction. The double thermoelement 2x NiCr-Ni K according to DIN EN 60584 (Class 2) is designed for temperatures from -200 to +1150 °C. The connection head in design Form A is made of aluminum die-cast. It features a cable gland M20 x 1.5 and can withstand ambient temperatures from -40 to +100 °C. The protective tube has dimensions of 22 x 710 mm. A flange (DIN 43734) serves as the process connection.

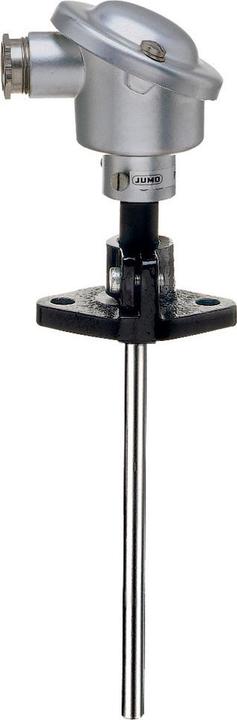

8. Jumo 54589
Jumo Insertion Thermoelement 00054589
Manufacturer: Jumo
Description: Insertion thermoelement 500 mm, installation length
Type: 00054589
For gas and oil burners: No
Suitable for other application areas: Yes
Length: 50 cm
Sensor class: Class 2
Temperature: -200 to 1150 °C
With protective tube: Yes
The insertion thermoelement is suitable for temperature measurement in liquid and gaseous media using the Seebeck effect. The continuous protective tube is made of heat-resistant steel, material 1.4749 (operating temperature up to +1150 °C). Therefore, the thermoelement is ideally suited for use in heating, furnace, and apparatus construction. The single thermoelement 1x NiCr-Ni K according to DIN EN 60584 (Class 2) is designed for temperatures from -200 to +1150 °C. The connection head in design form B is made of aluminum die-cast, features a cable gland M20 x 1.5, and can withstand ambient temperatures from -40 to +100 °C. The protective tube has dimensions of 15 x 500 mm. A stop flange (DIN 43734) serves as the process connection. EAN: 4053877003083.
9. Jumo Setpoint adjuster
Jumo Setpoint Controller 60002110
Manufacturer: Jumo
Designation: Setpoint Controller 20..500°C
Type: 60002110
Unit of Measurement: Other
Initial Value Scale: 20
Nominal End Value of the Scale: 500
Overcurrent Scale: No
Width of Measurement Scale: 50 mm
Height of Measurement Scale: 23 mm
Max Pointer Deflection: 250 °
Mounting Type: Other
The setpoint controller set consists of a control knob (slate gray RAL 7015, material thermoplastic), a scale (pebble gray RAL 7032, material thermoplastic), and two screws M3 x 8 according to DIN 84 (material nickel-plated brass). The hole spacing for mounting is 22 mm. The delivery also includes a metal disc that can be used to limit the maximum adjustable setpoint. The scale has a maximum adjustable range of 250 angular degrees. The setpoint controller is required for temperature adjustment in built-in thermostats that do not have their own adjustment scale.

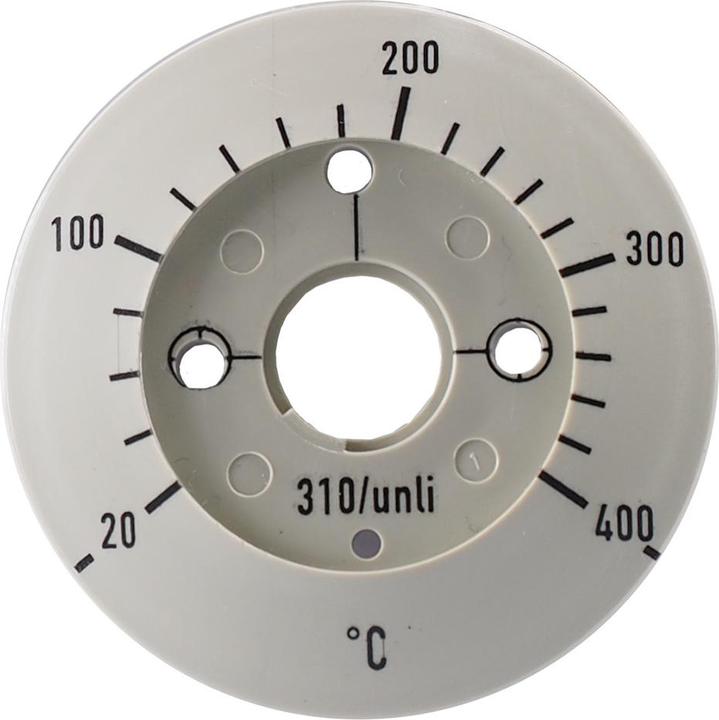

10. Jumo Setpoint adjuster set
Jumo Setpoint Control Set (W1) 60002111
Manufacturer: Jumo
Designation: Setpoint Control Set (W1)
Temperature Range: 20 to 400 °C
Type: 60002111
Unit of Measurement: Other
Initial Scale Value: 20
Nominal End Scale Value: 400
Overcurrent Scale: No
Width of Measurement Scale: 50 mm
Height of Measurement Scale: 23 mm
Max Pointer Deflection: 250 °
Mounting Type: Other
The setpoint control set consists of an adjustment knob (slate gray RAL 7015, material thermoplastic), a scale (pebble gray RAL 7032, material thermoplastic), and two screws M3 x 8 according to DIN 84 (material nickel-plated brass). The hole spacing for mounting is 22 mm. The delivery also includes a metal disc that allows for a maximum limit of the adjustable setpoint. The scale has a maximum adjustment range of 250 degrees. The setpoint controller is required for temperature adjustment in built-in thermostats that do not have their own adjustment scale.
