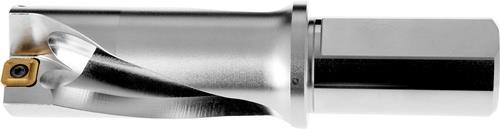

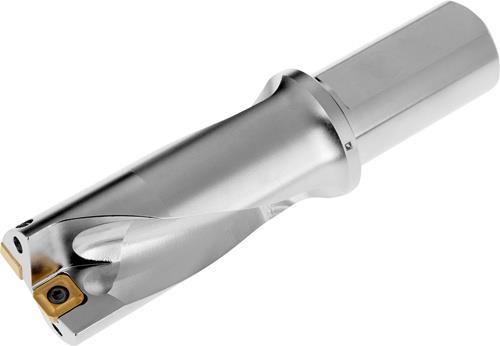

The Pramet indexable insert drill 2xD ISO 802D-36-72-S40 is a highly advanced tool designed for precise drilling in various materials. With a cutting diameter of 36 mm and a maximum drilling depth of 72 mm, this drill offers excellent performance and efficiency. It features a flat cylindrical shank according to ISO 9766, ensuring easy handling and stability during operation. The internal cooling system provides optimal temperature control, extending the life of the indexable inserts and improving machining quality. The overhang length of 105 mm and the usable length of 2xD allow for deeper drilling, while the screw clamping through the hole ensures secure attachment of the cutting inserts. This drill is ideal for professionals seeking a reliable and powerful tool.

• Internal cooling for improved temperature control
• Adjustment limits from 0.1 mm to 0.5 mm for precise adjustments
• Screw clamping through the hole for secure attachment of the cutting inserts
• Maximum drilling depths up to 2xD for versatile applications
• Cutter design 802D for optimized cutting performance.
