Rail thickness 19.1 mm, rail height 76.2 mm, optional angle accessory sets for various mounting options.

Note: Recommended fastening: M5/M6 lock screw, max. head height 4.8 mm/ø12.7 mm.

Note on load capacity: All fastening positions must be used to achieve the maximum load capacity. The load capacity refers to a dynamic cycle of 10,000 repetitions. When the rail is mounted horizontally, the load capacity is reduced to 20% of the vertical load value.

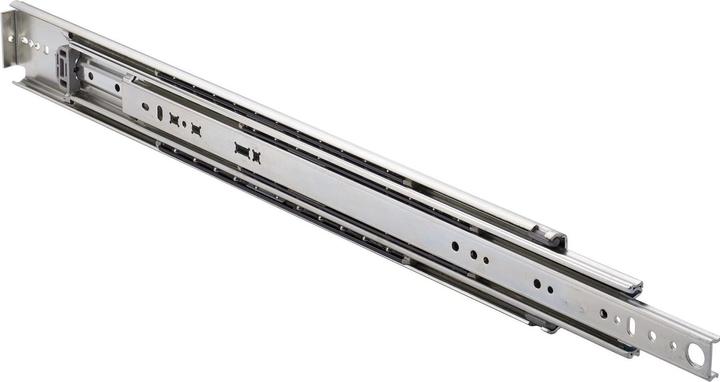

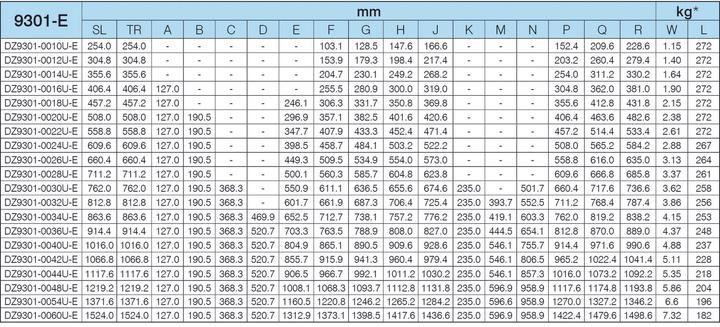

Design: Full extension, load capacity (kg): 237, type: Accuride DZ9301, rail length (mm): 1016, factory number: DZ9301-0040U, material: galvanized steel, extension path (mm): 1016, brand: Accuride, mounting type: side mounting, contents (PAA): 1.
