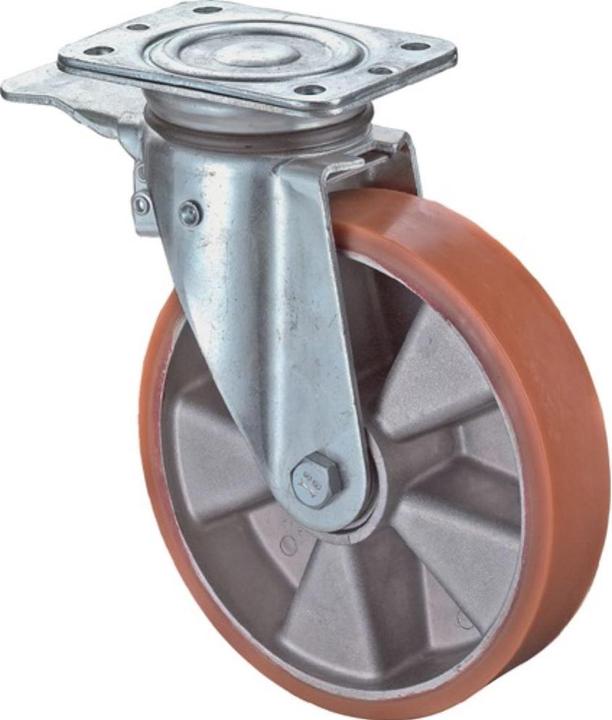

BS Rollen Swivel castor with total stop wheel dm 160 mm load cap. 600 kg with screw-on plate ball bearings...
More than 10 pieces in stock at supplier
Product details
Sheet steel housing, galvanised-chromated, with a two-rowed ball cage in the fork head. It features a die-cast polyurethane running surface with a hardness of 95 +/- 3 Shore and an aluminium wheel body. The wheel offers minimal roll resistance and quiet running, with excellent abrasion and tear strength. It is resistant to greases, oils, and other substances, with an operating temperature range of -20 °C to +80 °C. The wheel axle is screwed, and it includes a total brake mounted to precede the wheel. It has ball bearings and comes with plate fitting.
Further technical information:
- Surface of housing: galvanised-chromated
- Screw hole diameter: 11mm
- Screw hole removal: 105 x 75mm
- Supplement: standard
- Width of panel: 110mm
- Material of housing: sheet steel
- Length of panel: 138mm
- Profile: standard.
Wheel diameter | 160 mm |
max. load per wheel | 600 kg |
Mounting type | Screw-on plate |
castor design | Castor |
overall height | 205 mm |
Item number | 22145520 |
Manufacturer | BS Rollen |
Category | Furniture castors |
Manufacturer no. | N120.B90.163 |
Release date | 12/9/2022 |
Colour | Silver |
Exact colour description | galvanised-chromated |
Material group | Metal |
Material | Cast polyurethane, Sheet steel |
Case material | Steel |
Housing surface | Chromated |
Wheel material | Polyurethane |
castor design | Castor |
Mounting type | Screw-on plate |
Wheel diameter | 160 mm |
max. load per wheel | 600 kg |
overall height | 205 mm |
Wheel bearing | Ball bearing |
Load capacity at 4 km/h | 600 kg |
Shore hardness | 95 A |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 270 mm |
Width | 120 mm |
Height | 220 mm |
