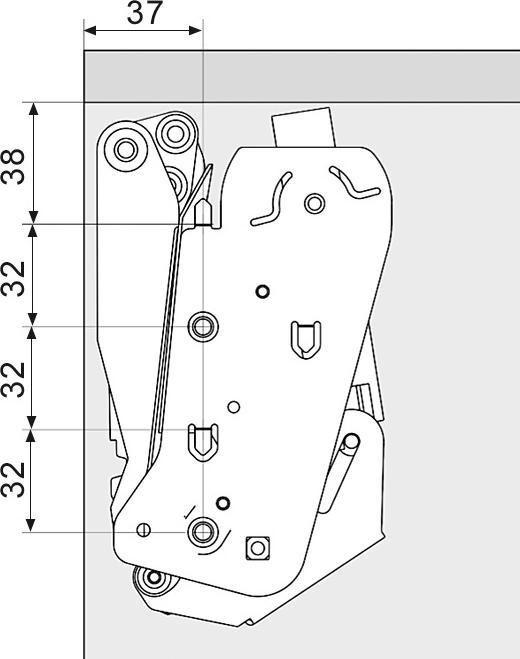

Lift fitting for hinge-free connection of front flaps

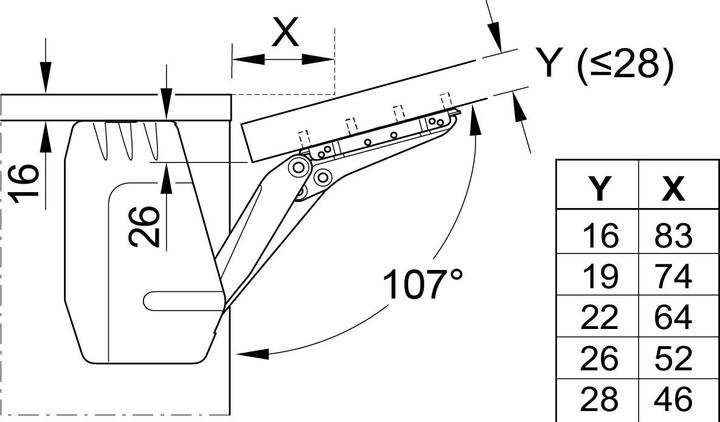

• clear depth > 107 mm
• Multi-position stop and stepless force adjustment
• ClickFixx and 3D adjustment of the front (1.5 mm)
• Positioning tabs
• pre-assembled Euro screws

Set consists of:
2 FREEflap mini fittings (right/left)
2 covers
2 front holders

Cabinet height - flap weight

Type A - Type B - Type C
> 200 mm - 1.8 - 4.8 kg - 3.7 - 8.2 kg - 7.0 - 15.3 kg
< 225 mm - 1.6 - 4.2 kg - 3.2 - 7.3 kg - 6.1 - 13.3 kg
< 250 mm - 1.3 - 3.8 kg - 2.9 - 6.4 kg - 5.4 - 11.8 kg
< 275 mm - 1.2 - 3.3 kg - 2.5 - 5.7 kg - 4.8 - 10.6 kg
< 300 mm - 1.1 - 3.1 kg - 2.3 - 5.2 kg - 4.4 - 9.7 kg
< 325 mm - 1.0 - 2.8 kg - 2.1 - 4.8 kg - 4.0 - 8.8 kg
< 350 mm - 0.9 - 2.7 kg - 2.0 - 4.4 kg - 3.7 - 8.2 kg
< 375 mm - 0.9 - 2.4 kg - 1.8 - 4.2 kg - 3.5 - 7.6 kg
< 400 mm - 0.8 - 2.2 kg - 1.7 - 3.8 kg - 3.2 - 7.0 kg
< 425 mm - 0.7 - 2.0 kg - 1.6 - 3.6 kg - 3.0 - 6.6 kg
< 450 mm - 0.7 - 2.0 kg - 1.5 - 3.3 kg - 2.8 - 6.2 kg.
