Comfort of opening with integrated door gap adjustment

With TIP-ON, Blum's mechanical opening support, handle-less fronts open as if by magic - with just a light tap. A gentle push is all that's needed to close them. For optimal movement comfort with doors, TIP-ON is combined with the proven CLIP top hinges. AVENTOS lift systems can also be implemented with TIP-ON. The door gap adjustment is integrated in all versions (+4/-1 mm).

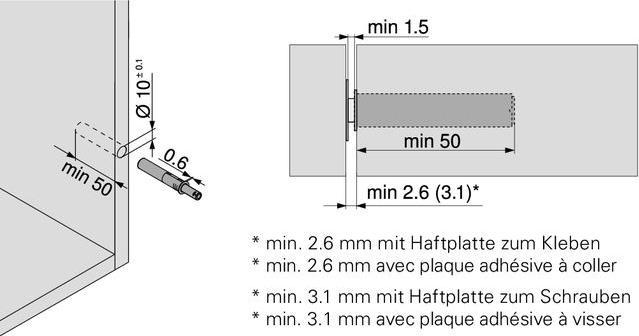

Adjustment range of +4/-1 mm. For hinged doors up to 1300 mm in height. For hinges without springs. For drilling ø 10 x 50 mm. Ejection travel approximately 17 mm. Installation on the handle side.

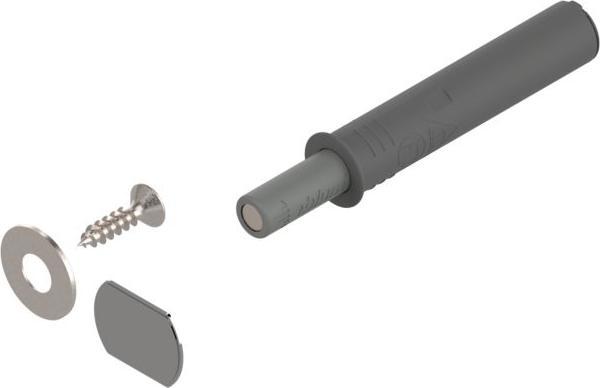

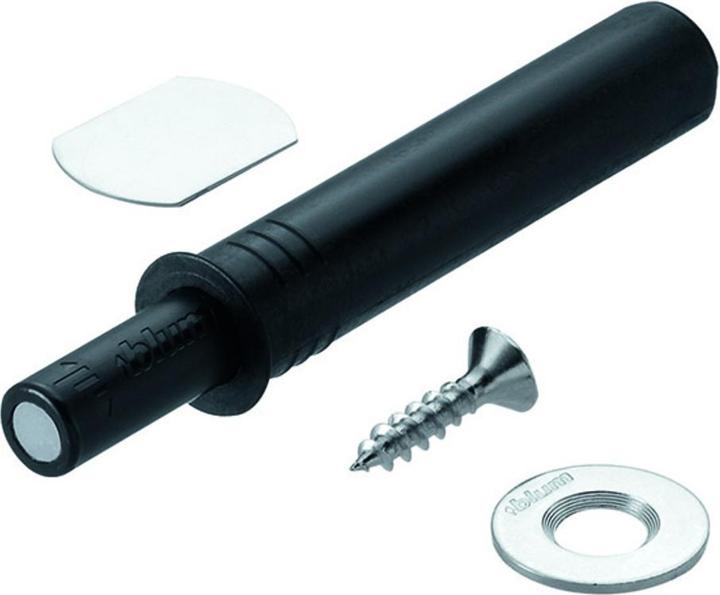

Delivery includes:
1 TIP-ON unit
1 adhesive plate for gluing
1 adhesive plate for screwing

Type: TIP-ON 956
Product type: Furniture fitting
Drill ø (mm): 10
Material: Plastic
Factory number: 956.1004
Color: plating gray
Brand: Blum
Contents (GT): 1.
