Hoppe Window handle Hamburg 0700L/U26 Aluminium F9 Aluminium steel-coloured 32-42 mm Standard
Product details
The Hamburg 0700L/U26 window handle from Hoppe is a high-quality solution for window applications that combines both functionality and aesthetics. Made from robust aluminum, this handle offers a durable and corrosion-resistant surface in F9 aluminum steel color. With a handle length of 127 mm and a 90° stop, it allows for comfortable handling and easy operation. The handle is suitable for a pin projection height of 32-42 mm and can be used for both left- and right-hinged windows. The concealed fastening with threaded screws ensures a clean and elegant appearance. Additionally, the window handle is tested according to DIN EN 13126-3 and RAL-GZ 607/9, highlighting its quality and safety. The integrated compression spring in the handle neck allows for stepless adjustment, further simplifying installation and use. The Hamburg 0700L/U26 window handle is therefore an ideal choice for those who value quality and design.
- Made from corrosion-resistant aluminum
- Concealed fastening with threaded screws for an elegant design
- Tested according to DIN EN 13126-3 and RAL-GZ 607/9 for high safety standards
- Integrated compression spring in the handle neck for stepless adjustment
- Suitable for left- and right-hinged windows.
Window handle type | Window handle |
Scope of application | Window |
Locking type | Not lockable |
Item number | 37176041 |
Manufacturer | Hoppe |
Category | Window handle |
Manufacturer no. | 11950080 |
Release date | 21/7/2023 |
Colour | Silver |
Exact colour description | Aluminium steel-coloured |
Material group | Metal |
Material | Aluminium F9 |
surface finish | Stainless steel |
Window handle type | Window handle |
Scope of application | Window |

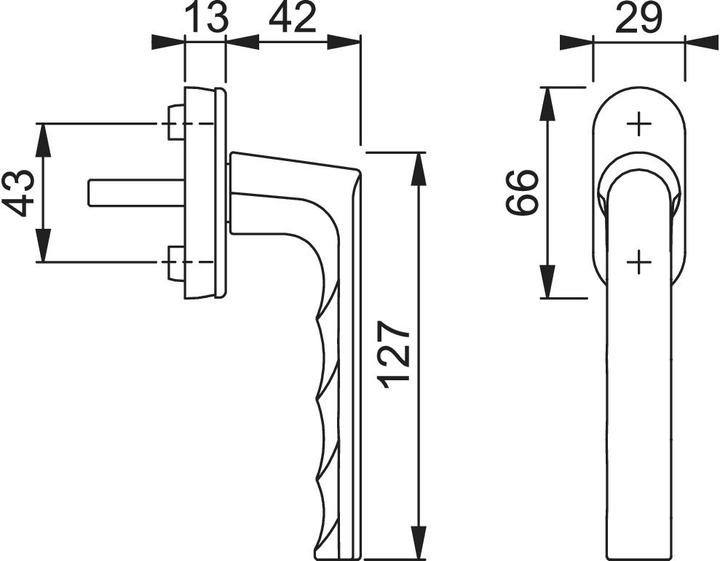

Handle length | 127 mm |
Handle diameter | 10 mm |
Locking type | Not lockable |
mounting style | Screwed |
Intrusion protection | 9, EN 13126-3, RAL-GZ 607/9 |
Square size | 7 mm |
Screw distance | 43 mm |
Height shield/rosette | 66 mm |
Wide shield/rosette | 29 mm |
Thickness shield/rosette | 13 mm |
Country of origin | Germany |
CO₂ emissions | 10,93 kg |
Climate contribution | EUR 0,28 |
Items per sales unit | 1x |
Scope of delivery | 2 threaded screws M5 x 45 mm, 2 threaded screws M5 x 50 mm |
Weight | 165 g |
Length | 20.30 cm |
Width | 14.10 cm |
Height | 3.10 cm |
Weight | 167 g |
