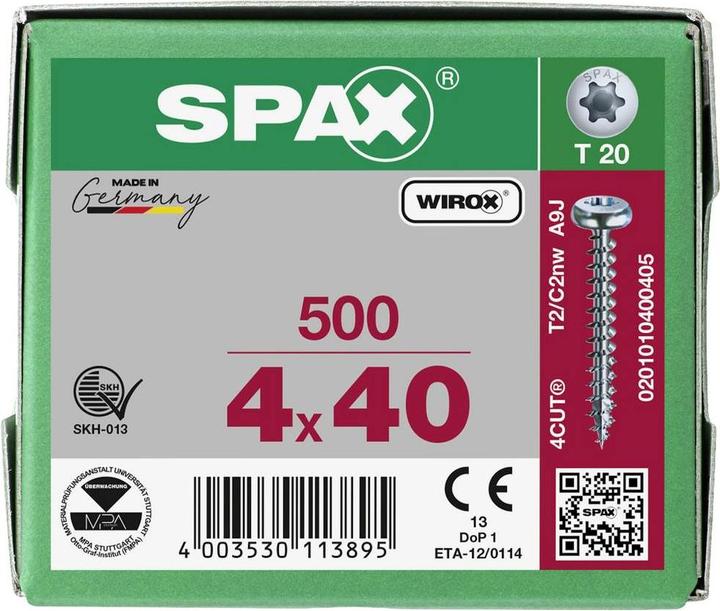

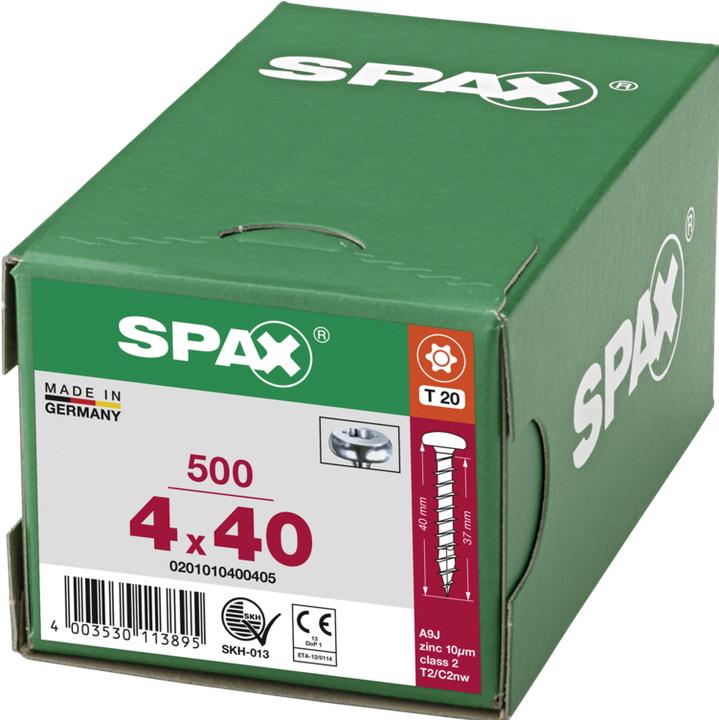

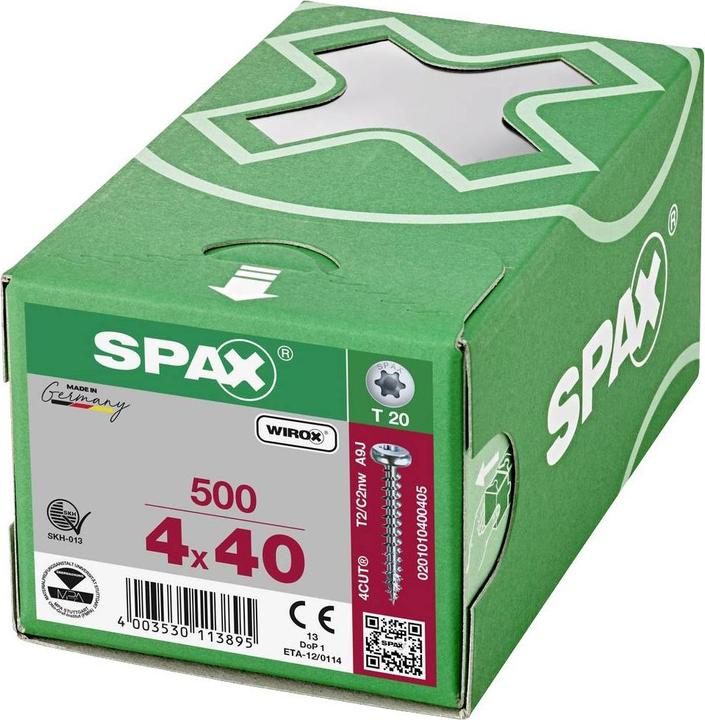

Spax Chipboard screws PH T20 4,0x40 mm

500 Screws per piece
Price in EUR including VAT
EUR0,05/1pcs.
Delivered between Sat, 6/9 and Tue, 9/9
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

The SPAX typical drive T-STAR plus is a so-called internal hexagon. This shape increases the contact area of our T-STAR plus, allowing the T-STAR plus bits to fit perfectly into the screw head. The optimal power transfer from the screwdriver to the screw through T-STAR plus enables fast work, significantly more efficient than with any other drives.

The countersunk head (or flat countersunk head) carves a recess into the wood with its polygonal underside ("pockets") and can therefore be sunk without additional countersinking of the screw hole. The countersunk head sits flush with the surface.

The screws with partial thread are excellent for fastening thin components such as wood-based panels, boards, or floorboards to thicker components like beams or posts. The short thread screws into the thick component, while the unthreaded shank remains in the attachment component. This creates maximum clamping pressure between the two. The unthreaded part should be at least as thick as the attachment component.

The CUT tip of our SPAX screws allows for extremely fast and effective driving of our wood screws without pre-drilling. The arrow-shaped CUT tip, in combination with the shaft profile, reduces splitting and tearing of the wood. Furthermore, the CUT tip enables very precise and slip-resistant positioning of the screw tip even on smooth surfaces.

With WIROX, SPAX has developed a coating that far surpasses galvanization in terms of corrosion protection. WIROX does not use chromium (VI), and the screws remain just as durable and environmentally friendly even after years in non-directly weather-exposed outdoor areas. WIROX screws are the first choice for all open structures without direct weather exposure, such as carports or pergolas. For direct weather exposure, such as on terraces, we recommend our screws in the stainless steel variant.

Key specifications

type of screw
Chipboard screw
bolt diameter
4 mm
head shape
Round head
Screw length
40 mm
Screw dimensions (D x L)
4 x 40 mm
Item number
12266081

General information

Manufacturer
Spax
Category
Screws
Manufacturer no.
3366906
Release date
22/8/2019
External links

Colour

Colour
Silver
Exact colour description
WIROX

Material

Metal type
Steel
Material group
Metal
Material
Galvanised steel
surface finish
Wirox coated

Screw Properties

type of screw
Chipboard screw
thread type
Full thread
head shape
Round head
impetus
Pin-torx
Output size
T20
Suitable for
Wood
Quality class
Strength class 5.8

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
4 x 40 mm4CUT500 piecesSemicircular headSolid threadT-STAR plus T20Universal screwWIROX - 0201010400405
Items per sales unit
500 Screws per piece

Product dimensions

Screw dimensions (D x L)
4 x 40 mm
bolt diameter
4 mm
Screw length
40 mm
thread length
40 mm

Package dimensions

Length
16.40 cm
Width
9.60 cm
Height
8 cm
Weight
1.30 kg
